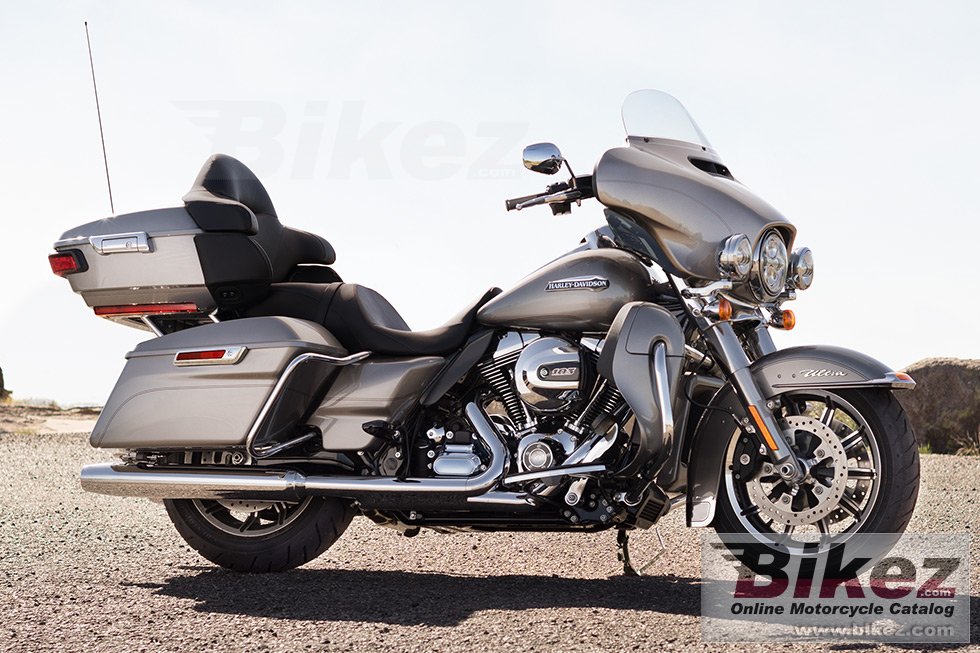

Electra Glide Ultra Classic Low

Tipologia

Touring

Prezzo da nuova

US$ 24699. MSRP depends on country, taxes, accessories, etc.

Cilindrata

1688.0 cc (103.00 cubic inches)

Tipo motore

V2, four-stroke

Dettagli motore

Integrated Oil-Cooler

Potenza

87.0 CV (63.5 kW)) @ 5100 giri/min

Rapporto di compressione

9.7:1

Alesaggio x corsa

98.4 x 111.3 mm (3.9 x 4.4 inches)

Sistema di alimentazione

Injection. Electronic Sequential Port Fuel Injection

Controllo alimentazione

Double Overhead Cams/Twin Cam (DOHC)

Frizione

Multi-plate with diaphragm spring in oil bath

Trasmissione finale

Chain, 34/46 ratio primary drive

Consumo carburante

5.60 litres/100 km (17.9 km/l or 42.00 mpg)

Emissioni serra

129.9 CO2 g/km. (CO2 - emissione di anidride carbonica)

Impianto di scarico

Chrome, 2-1-2 dual exhaust with tapered mufflers

Inclinazione cannotto di sterzo

26.0°

Avancorsa

170 mm (6.7 inches)

Ruote

Cast Aluminum

Peso a secco

400.1 kg (882.0 pounds)

Weight incl. oil, gas, etc

413.2 kg (911.0 pounds)

Rapporto potenza/peso

0.2175 CV/kg

Altezza sella

686 mm (27.0 inches) If adjustable, lowest setting.

Lunghezza totale

2600 mm (102.4 inches)

Altezza da terra

135 mm (5.3 inches)

Interasse

1625 mm (64.0 inches)

Capacita carburante

22.71 litres (6.00 US gallons)

Capacita olio

3.80 litres (4.02 US quarts)

Colori disponibili

Vivid Black, Purple Fire/Blackberry Smoke, Mysterious Red Sunglo/Velocity Red Sunglo, Amber Whiskey/Charcoal Pearl, Brillet Silver, Cosmic Blue Pearl, Superior Blue.

Avviamento

Elettrico

Strumentazione

Fairing-mounted electronic speedometer with odometer; time-of-day clock on CD player/stereo; dual trip meter; low fuel indicator light and mileage countdown feature; low oil pressure indicator light; engine diagnostics readout; LED indicator lights; 6 marce indicator light; cruise control indicator light Tachometer with fuel, voltage, oil pressure and ambient air temperature gauges

Fari

High beam, running lights, front fender running lights, directional light bar, low oil pressure, engine diagnostics, cruise control, speakers, accessory, security system (optional), 6 marce, low fuel warning, ABS (optional)

Capacita di carico

Saddle bags, top box

Coppia

138.0 Nm (14.1 kgf-m or 101.8 ft.lbs) @ 3250 giri/min

Sospensione anteriore

Telescopic fork

Sospensione posteriore

Twin shocks

Pneumatico anteriore

130/80-17

Pneumatico posteriore

180/65-16

Freno anteriore

Double disc. ABS. 4-piston

Freno posteriore

Single disc. ABS. 4-piston

Cambio

6 marce

Tipo trasmissione

Cinghia (trasmissione finale)

Sistema di raffreddamento

Oil & air
