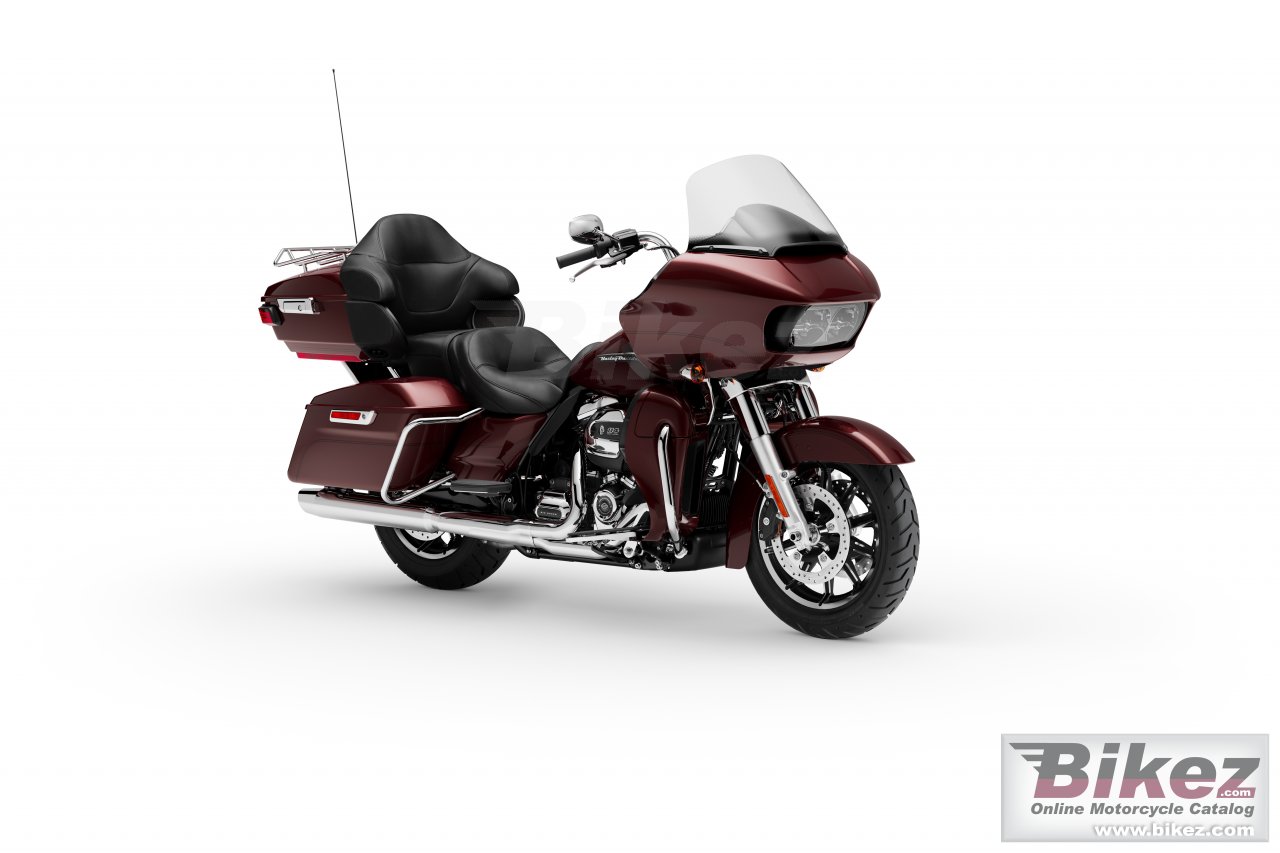

Road Glide Ultra

Tipologia

Touring

Prezzo da nuova

US$ 27689. MSRP depends on country, taxes, accessories, etc.

Cilindrata

1868.0 cc (113.99 cubic inches)

Tipo motore

V2, four-stroke

Dettagli motore

Twin-Cooled™ Milwaukee-Eight® 107

Potenza

90.0 CV (65.7 kW)) @ 5450 giri/min

Rapporto di compressione

10.5:1

Alesaggio x corsa

102.0 x 114.0 mm (4.0 x 4.5 inches)

Sistema di alimentazione

Injection. ESPFI

Controllo alimentazione

Double Overhead Cams/Twin Cam (DOHC)

Sistema di lubrificazione

Coppa secca

Frizione

Multi-plate with diaphragm spring in oil bath

Trasmissione finale

Chain, 34/46 ratio primary drive

Consumo carburante

5.47 litres/100 km (18.3 km/l or 43.00 mpg)

Emissioni serra

126.9 CO2 g/km. (CO2 - emissione di anidride carbonica)

Impianto di scarico

Chrome dual exhaust with 4 in. touring mufflers and touring muffler shields

Inclinazione cannotto di sterzo

26.0°

Avancorsa

170 mm (6.7 inches)

Ruote

Impeller Cast Aluminum

Peso a secco

408.0 kg (899.5 pounds)

Weight incl. oil, gas, etc

425.0 kg (937.0 pounds)

Rapporto potenza/peso

0.2206 CV/kg

Altezza sella

735 mm (28.9 inches) If adjustable, lowest setting.

Lunghezza totale

2595 mm (102.2 inches)

Altezza da terra

130 mm (5.1 inches)

Interasse

1625 mm (64.0 inches)

Capacita carburante

22.71 litres (6.00 US gallons)

Capacita olio

4.90 litres (5.18 US quarts)

Colori disponibili

Vivid Black, Twisted Cherry, Midnight BlueBarracuda Silver, Wicked Red/Barracuda Silver,Scorced Orange/Black Denim, Silver flux/Black Fuse

Avviamento

Elettrico

Strumentazione

Fairing-mounted electronic speedometer with odometer; time-of-day clock on CD player/stereo; dual trip meter; low fuel indicator light and mileage countdown feature; low oil pressure indicator light; engine diagnostics readout; LED indicator lights; 6 marce indicator light Tachometer with fuel, voltage, oil pressure and ambient air temperature gauges

Fari

High beam, running lights, front fender light, directional light bar, neutral, low oil pressure, engine diagnostics, turn signals, security system (optional), 6 marce, low fuel warning, cruise control (optional), ABS (optional)

Capacita di carico

Saddle bags. Top Box.

Coppia

165.4 Nm (16.9 kgf-m or 122.0 ft.lbs) @ 3000 giri/min

Sospensione anteriore

Telescopic fork

Sospensione posteriore

Twin shocks

Pneumatico anteriore

130/80-B17

Pneumatico posteriore

180/65-B16

Freno anteriore

Double disc. ABS. 4-piston

Freno posteriore

Single disc. ABS. 4-piston

Cambio

6 marce

Tipo trasmissione

Cinghia (trasmissione finale)

Sistema di raffreddamento

Oil & air
