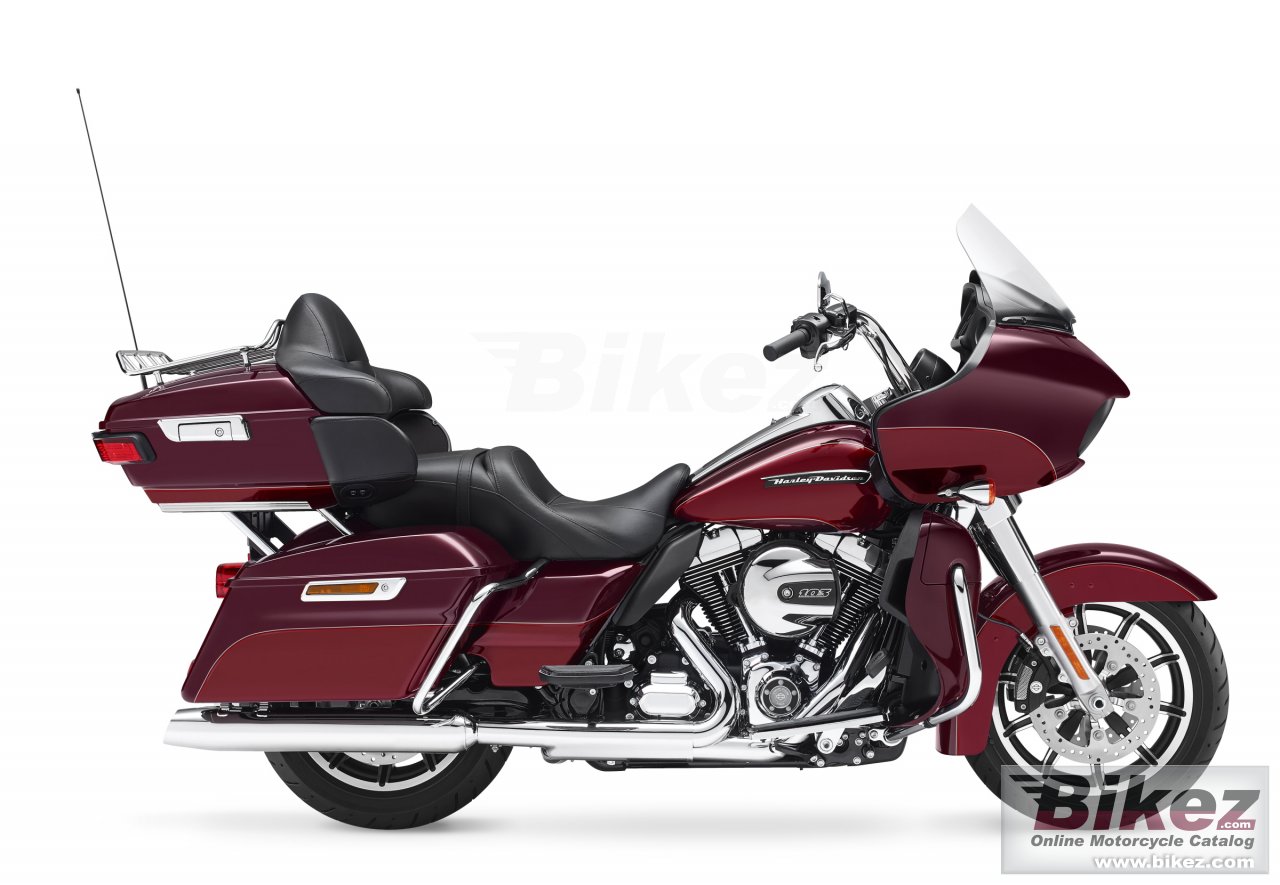

Road Glide Ultra

Categoria

Touring

Prezzo da nuova

US$ 25699. Euro 27545. MSRP depends on country, taxes, accessories, etc.

Cilindrata

1688.0 cc (103.00 cubic inches)

Dettagli motore

Integrated Oil-Cooler

Rapporto di compressione

9.7:1

Alesaggio x corsa

98.4 x 111.3 mm (3.9 x 4.4 inches)

Sistema di alimentazione

Injection

Controllo alimentazione

Double Overhead Cams/Twin Cam (DOHC)

Sistema di lubrificazione

Coppa secca

Frizione

Multi-plate with diaphragm spring in oil bath

Trasmissione finale

Chain, 34/46 ratio primary drive

Consumo carburante

5.60 litres/100 km (17.9 km/l or 42.00 mpg)

Emissioni serra

129.9 CO2 g/km. (CO2 - emissione di anidride carbonica)

Impianto di scarico

Chrome dual exhaust with 4 in. touring mufflers and touring muffler shields

Inclinazione cannotto di sterzo

26.0°

Avancorsa

170 mm (6.7 inches)

Ruote

Impeller Cast Aluminum

Peso a secco

407.0 kg (897.3 pounds)

Weight incl. oil, gas, etc

425.0 kg (937.0 pounds)

Rapporto potenza/peso

0.2138 CV/kg

Altezza sella

735 mm (28.9 inches) If adjustable, lowest setting.

Lunghezza totale

2570 mm (101.2 inches)

Altezza da terra

125 mm (4.9 inches)

Interasse

1625 mm (64.0 inches)

Capacita carburante

22.71 litres (6.00 US gallons)

Capacita olio

3.80 litres (4.02 US quarts)

Colori disponibili

Black Denim, Mysterious Red Sunglo/Velocity Red Sunglo, Billet Silver/Vivid Black, Superior Blue, Cosmic Blue Pearl, Purple Fire/Blackberry Smoke.

Avviamento

Elettrico

Strumentazione

Fairing-mounted electronic speedometer with odometer; time-of-day clock on CD player/stereo; dual trip meter; low fuel indicator light and mileage countdown feature; low oil pressure indicator light; engine diagnostics readout; LED indicator lights; 6 marce indicator light Tachometer with fuel, voltage, oil pressure and ambient air temperature gauges

Fari

High beam, running lights, front fender light, directional light bar, neutral, low oil pressure, engine diagnostics, turn signals, security system (optional), 6 marce, low fuel warning, cruise control (optional), ABS (optional)

Capacita di carico

Saddle bags. Top Box.

Tipo motore

V2, four-stroke

Potenza

87.0 CV (63.5 kW)) @ 5000 giri/min

Coppia

138.0 Nm (14.1 kgf-m or 101.8 ft.lbs) @ 3250 giri/min

Sospensione anteriore

Telescopic fork

Sospensione posteriore

Twin shocks

Pneumatico anteriore

130/70-BW18

Pneumatico posteriore

180/65-BW16

Freno anteriore

Double disc. ABS. 4-piston

Freno posteriore

Single disc. ABS. 4-piston

Cambio

6 marce

Tipo trasmissione

Cinghia (trasmissione finale)

Sistema di raffreddamento

Oil & air
