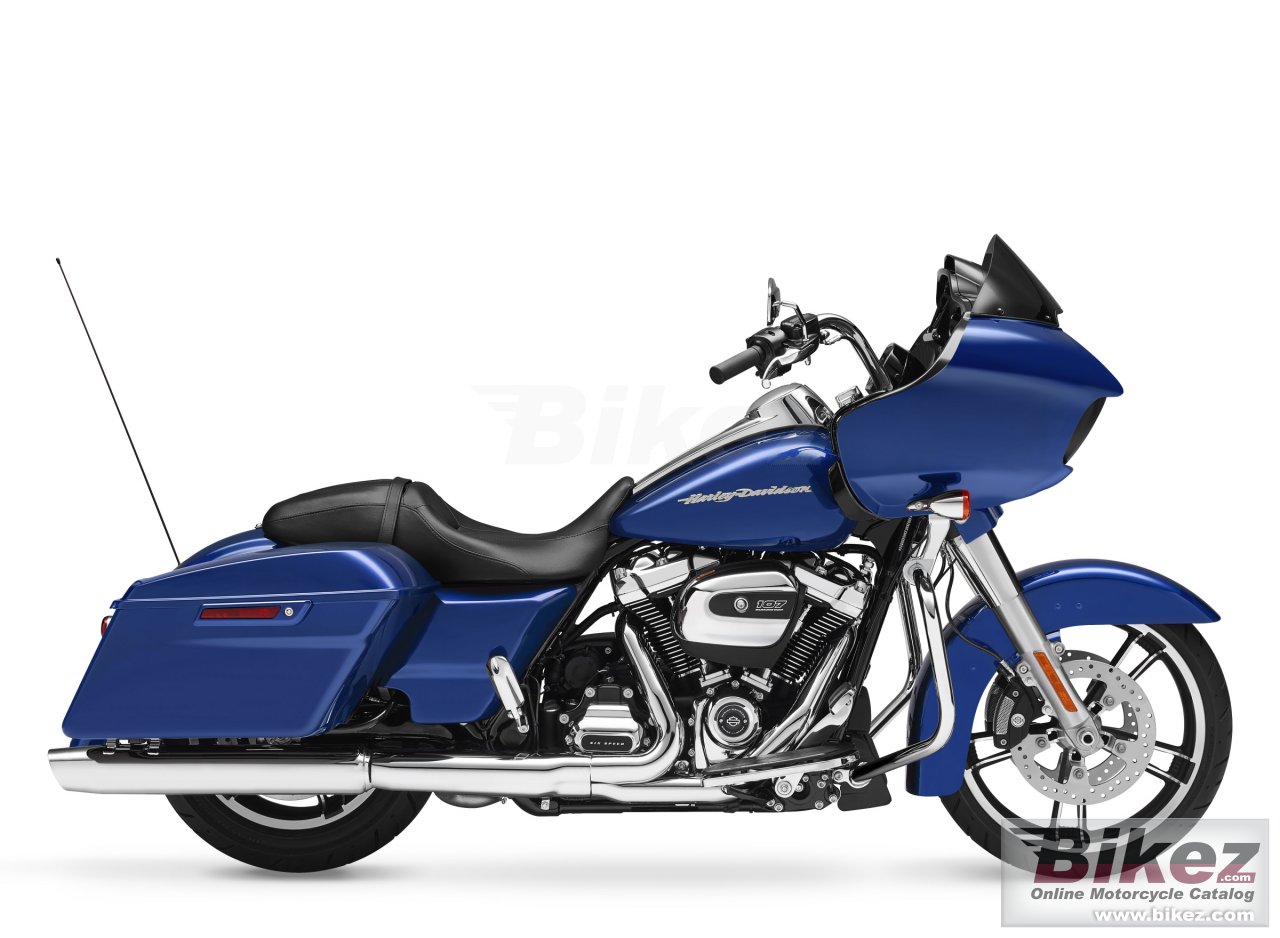

Road Glide Special

Tipologia

Touring

Prezzo da nuova

US$ 23999. Euro 26995. MSRP depends on country, taxes, accessories, etc.

Cilindrata

1745.0 cc (106.48 cubic inches)

Tipo motore

V2, four-stroke

Dettagli motore

Integrated Oil-Cooler

Potenza

90.0 CV (65.7 kW)) @ 5450 giri/min

Rapporto di compressione

10.0:1

Alesaggio x corsa

100.0 x 111.3 mm (3.9 x 4.4 inches)

Sistema di alimentazione

Injection. ESPFI

Controllo alimentazione

Double Overhead Cams/Twin Cam (DOHC)

Sistema di lubrificazione

Coppa secca

Frizione

Multi-plate with diaphragm spring in oil bath

Trasmissione finale

Chain, 34/46 ratio primary drive

Consumo carburante

5.20 litres/100 km (19.2 km/l or 45.23 mpg)

Emissioni serra

120.6 CO2 g/km. (CO2 - emissione di anidride carbonica)

Impianto di scarico

Chrome, 2-1-2 dual exhaust with tapered mufflers

Inclinazione cannotto di sterzo

26.0°

Avancorsa

173 mm (6.8 inches)

Ruote

Enforcer Cast Aluminum

Peso a secco

372.0 kg (820.1 pounds)

Weight incl. oil, gas, etc

388.0 kg (855.4 pounds)

Rapporto potenza/peso

0.2419 CV/kg

Altezza sella

685 mm (27.0 inches) If adjustable, lowest setting.

Lunghezza totale

2430 mm (95.7 inches)

Altezza da terra

120 mm (4.7 inches)

Interasse

1625 mm (64.0 inches)

Capacita carburante

22.71 litres (6.00 US gallons)

Capacita olio

3.80 litres (4.02 US quarts)

Colori disponibili

Black Denim, Velocity Red Sunglo, Vivid Black, Superior Blue, Olive Gold, Laguna Orange, Hard Candy Hot Rod Red Flake, Hard Candy Mystic Purple Flake, Hard Candy Black Gold Flake

Avviamento

Elettrico

Strumentazione

Fairing-mounted electronic speedometer with odometer; time-of-day clock on CD player/stereo; dual trip meter; low fuel indicator light and mileage countdown feature; low oil pressure indicator light; engine diagnostics readout; LED indicator lights; 6 marce indicator light Tachometer with fuel, voltage, oil pressure and ambient air temperature gauges

Fari

High beam, running lights, front fender light, directional light bar, neutral, low oil pressure, engine diagnostics, turn signals, security system (optional), 6 marce, low fuel warning, cruise control (optional), ABS (optional)

Capacita di carico

Saddle bags

Coppia

150.0 Nm (15.3 kgf-m or 110.6 ft.lbs) @ 3250 giri/min

Sospensione anteriore

Telescopic fork

Sospensione posteriore

Twin shocks

Pneumatico anteriore

130/70-B19

Pneumatico posteriore

180/65-B16

Freno anteriore

Double disc. ABS. 4-piston

Freno posteriore

Single disc. ABS. 4-piston

Cambio

6 marce

Tipo trasmissione

Cinghia (trasmissione finale)

Sistema di raffreddamento

Oil & air
