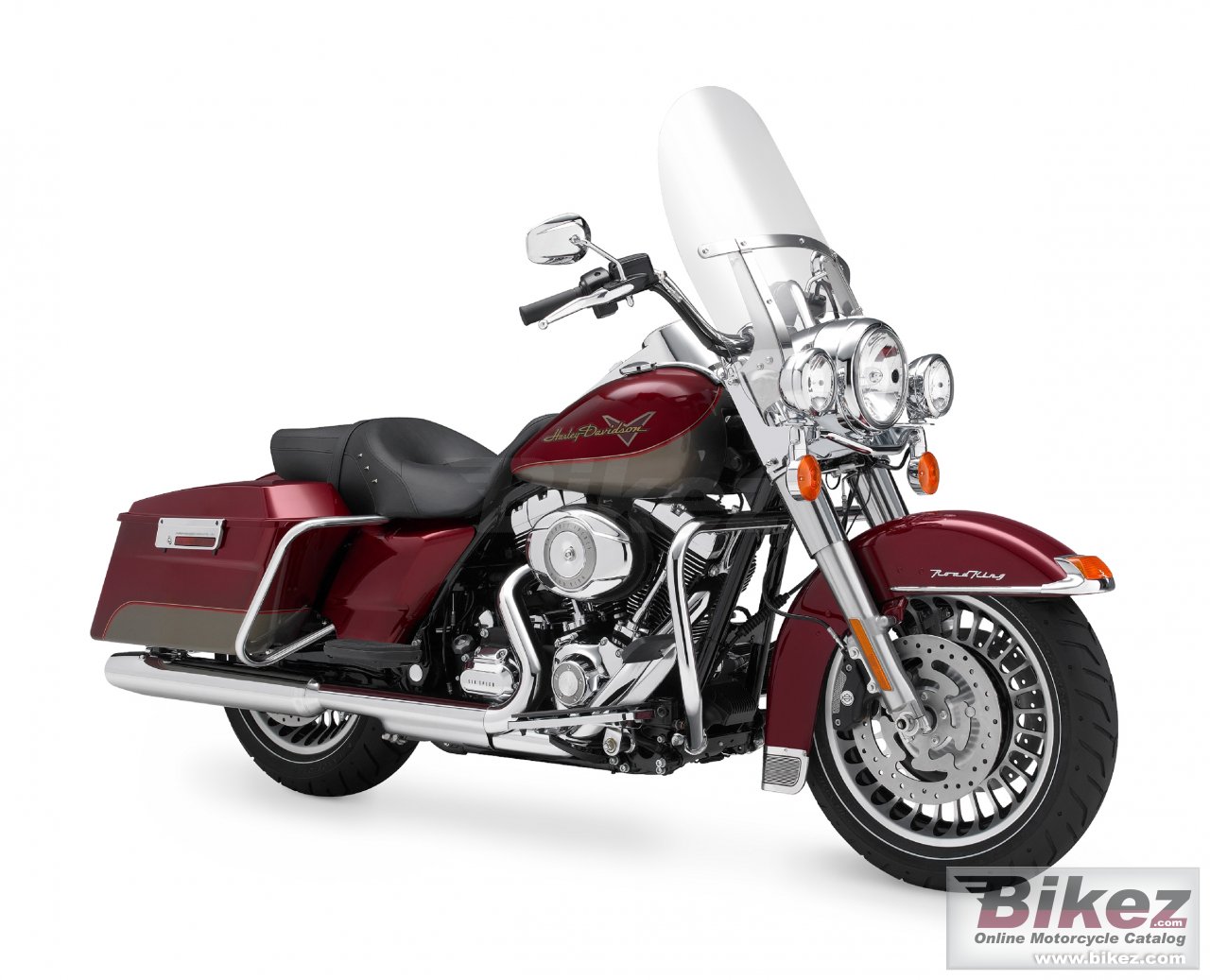

Flhr Road King
Scrivi la tua esperienza su Harley Davidson Flhr Road King
La recensione verrà pubblicata come topic forum personale. Se hai già recensito questo modello, il topic esistente verrà aggiornato.
Accedi per pubblicare una recensione e farla diventare un topic modificabile nel forum del modello.
Accedi per recensireWindscreen. Black powder-coated engine with chrome treatment covers; Chrome, low-Profilo fuel tank console; Clear-lens reflector-optics headlamp; Full-length height adjustable rider footboards; Full-length height adjustable passenger footboards; New redesigned rider footboard supports for increased lean angle; Stainless steel, "buffalo" handlebars; One-piece, two-up Road King® classic seat; Clear, large Lexan® quick-release detachable windshield; Injection-moulded GTX® saddlebags with locks
Informazioni generali
Categoria
Touring
Cilindrata
1584.0 cc (96.66 cubic inches)
Rapporto di compressione
9.2:1
Alesaggio x corsa
95.3 x 111.1 mm (3.8 x 4.4 inches)
Valvole per cilindro
2
Sistema di alimentazione
Injection. Electronic Sequential Port Fuel Injection
Controllo alimentazione
Valvole in testa (OHV)
Accensione
Single-fire, non-wasted, map-controlled spark ignition
Frizione
9-plate, wet
Inclinazione cannotto di sterzo
26.0°
Avancorsa
173 mm (6.8 inches)
Escursione anteriore
117 mm (4.6 inches)
Escursione posteriore
76 mm (3.0 inches)
Diametro
300 mm (11.8 inches)
Peso a secco
355.0 kg (782.6 pounds)
Weight incl. oil, gas, etc
345.0 kg (760.6 pounds)
Altezza sella
715 mm (28.1 inches) If adjustable, lowest setting.
Lunghezza totale
2465 mm (97.0 inches)
Altezza da terra
145 mm (5.7 inches)
Interasse
1625 mm (64.0 inches)
Capacita carburante
22.70 litres (6.00 US gallons)
Capacita olio
3.80 litres (4.02 US quarts)
Colori disponibili
Flame Blue Pearl and Pewter Pearl; Red Hot Sunglo and Smokey Gold; Vivid Black, Dark Blue Pearl, Red Hot Sunglo, White Gold Pearl and Pewter Pearl
Avviamento
Elettrico
Olio motore
SAE 20W-50
Oil filter
PC Racing Flo - PCS4BC
Liquido freni
DOT 4
Battery
YB30L-B
Candele
NGK DCPR8E, NGK DCPR8EIX
Belt teeth
140
Belt width
1 in
Pulley teeth
32/68 (front/rear)
Fork tube size
41 mm (1.6 inches)
Motore
Tipo motore
V2, four-stroke
Coppia
131.0 Nm (13.4 kgf-m or 96.6 ft.lbs) @ 3500 giri/min
Sospensioni
Sospensione anteriore
41.3mm telescopic fork
Sospensione posteriore
Air-adjustable
Telaio
Tipologia telaio
New mild steel, single spar rigid backbone with
Ruote
Pneumatico anteriore
130/80-B17
Pneumatico posteriore
180/65-B16
Freni
Freno anteriore
Single disc. 4-piston, ABS
Freno posteriore
Single disc. 4-piston, ABS
Trasmissione
Cambio
6 marce
Tipo trasmissione
Cinghia (trasmissione finale)
Raffreddamento
Sistema di raffreddamento
Aria
