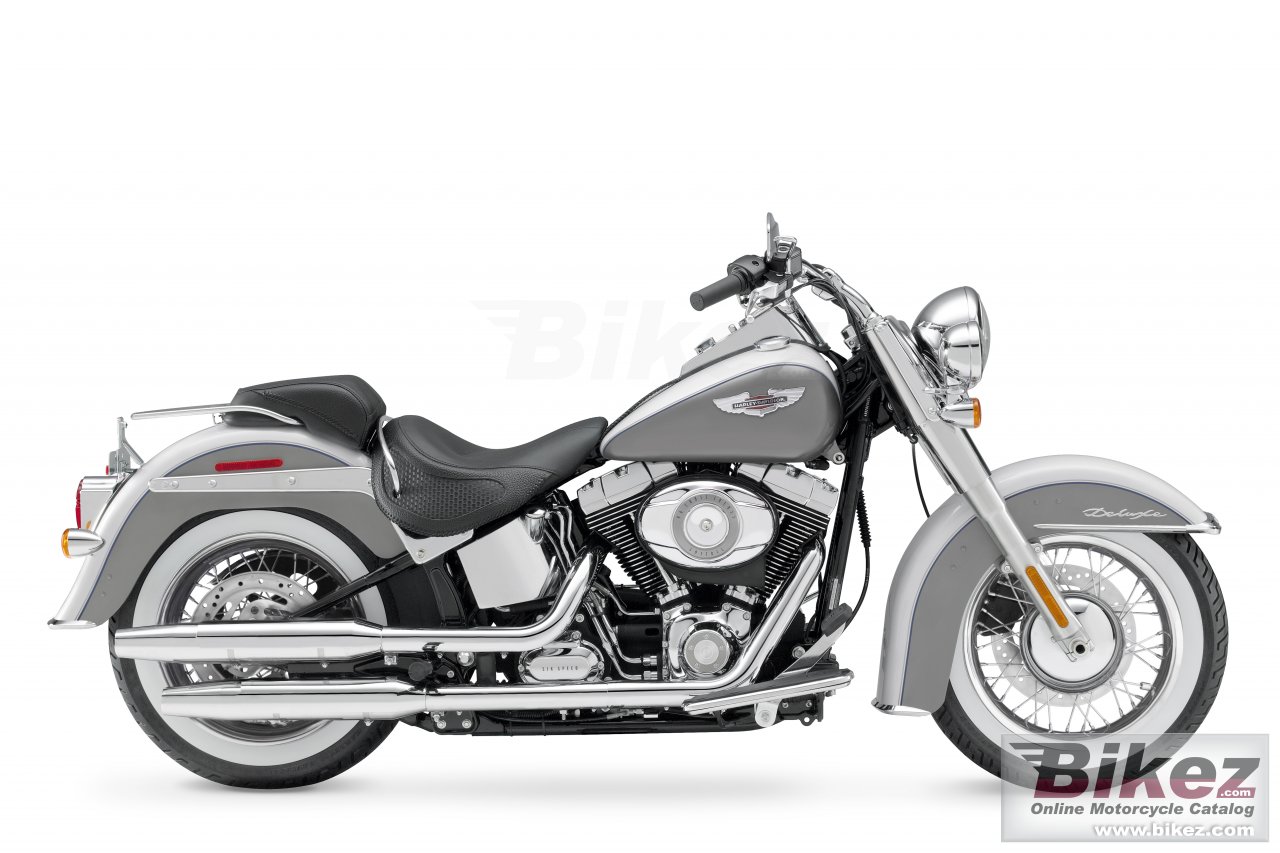

Flstn Softail Deluxe
Scrivi la tua esperienza su Harley Davidson Flstn Softail Deluxe
La recensione verrà pubblicata come topic forum personale. Se hai già recensito questo modello, il topic esistente verrà aggiornato.
Accedi per pubblicare una recensione e farla diventare un topic modificabile nel forum del modello.
Accedi per recensireLow 24.5-in. seat height; wide whitewall tires; pull -back risers and handlebar; tombstone tail light; integrated luggage rack–exclusive to this model; Easy Reach sidestand; nostalgic valanced seat with chrome grab rail; custom tapered floor boards
Informazioni generali
Tipologia
Custom / cruiser
Prezzo da nuova
US$ 17445. MSRP depends on country, taxes, accessories, etc.
Cilindrata
1573.3 cc (96.00 cubic inches)
Tipo motore
V2, four-stroke
Rapporto di compressione
9.2:1
Alesaggio x corsa
95.3 x 111.3 mm (3.8 x 4.4 inches)
Valvole per cilindro
2
Sistema di alimentazione
Injection. Electronic Sequential Port Fuel Injection (ESPFI)
Controllo alimentazione
Valvole in testa (OHV)
Accensione
Single-fire, non-wasted, map-controlled spark ignition
Frizione
Multi-plate with diaphragm spring in oil bath
Consumo carburante
4.35 litres/100 km (23.0 km/l or 54.07 mpg)
Emissioni serra
100.9 CO2 g/km. (CO2 - emissione di anidride carbonica)
Inclinazione cannotto di sterzo
32.0°
Avancorsa
147 mm (5.8 inches)
Diametro
292 mm (11.5 inches)
Peso a secco
315.2 kg (695.0 pounds)
Weight incl. oil, gas, etc
328.4 kg (724.0 pounds)
Altezza sella
658 mm (25.9 inches) If adjustable, lowest setting.
Lunghezza totale
2405 mm (94.7 inches)
Altezza da terra
122 mm (4.8 inches)
Interasse
1638 mm (64.5 inches)
Capacita carburante
18.92 litres (5.00 US gallons)
Capacita olio
3.30 litres (3.49 US quarts)
Colori disponibili
Vivid Black, Black Pearl, Dark Blue Pearl (New), Crimson Red Sunglo (New), Candy Red Sunglo, Suede Blue Pearl/Vivid Black, White Gold Pearl/Pewter Pearl, White Gold Pearl/Black Pearl, 105th Anniversary CopperPearl/Vivid Black, Purple Haze (Custom), Copper
Avviamento
Elettrico
Olio motore
SAE 20W-50
Oil filter
K & N KN-171C (Chrome)
Liquido freni
DOT 4
Battery
GYZ20HL
Candele
NGK DCPR8E, NGK DCPR8EIX
Belt teeth
133
Belt width
1
Pulley teeth
32/66 (front/rear)
Fork tube size
41 mm (1.6 inches)
Motore
Coppia
120.0 Nm (12.2 kgf-m or 88.5 ft.lbs) @ 3300 giri/min
Sospensioni
Sospensione anteriore
41.3 mm telescopic, chrome dust covers
Sospensione posteriore
Hidden, horizontal-mounted, coil-over shock
Telaio
Tipologia telaio
Mild steel, tubular frame. Rectangular section backbone. Stamped, cast and forged junctions. Forged fender supports.
Ruote
Pneumatico anteriore
90/16-MT
Pneumatico posteriore
85/16-MU
Freni
Freno anteriore
Single disc. 4-piston calipers
Freno posteriore
Single disc. 2-piston torque-free calipers
Trasmissione
Cambio
6 marce
Tipo trasmissione
Cinghia (trasmissione finale)
Raffreddamento
Sistema di raffreddamento
Aria
