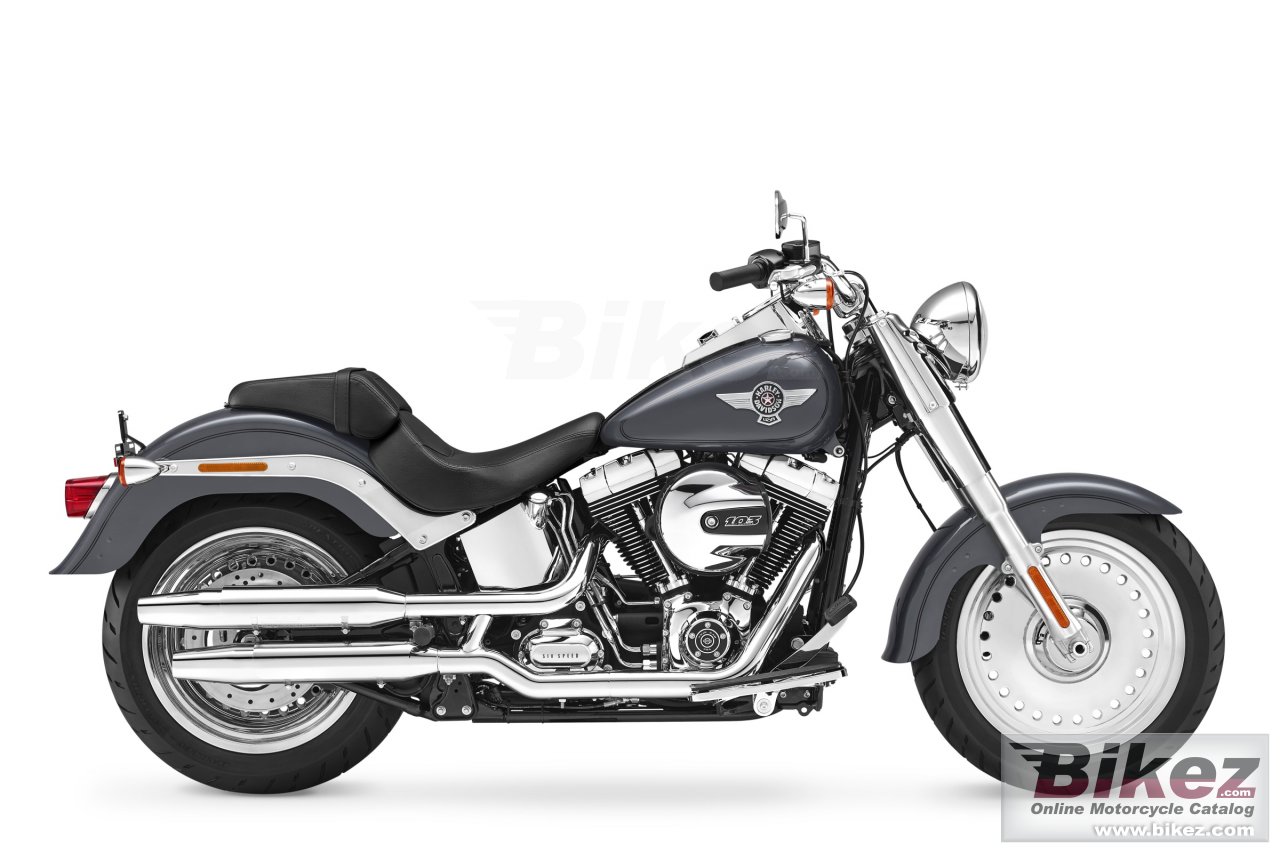

Softail Fat Boy
Scrivi la tua esperienza su Harley Davidson Softail Fat Boy
La recensione verrà pubblicata come topic forum personale. Se hai già recensito questo modello, il topic esistente verrà aggiornato.
Accedi per pubblicare una recensione e farla diventare un topic modificabile nel forum del modello.
Accedi per recensireWhen Willie G. Davidson rode the Fat Boy® model into Bike Week the first time, let's just say it stopped traffic. No one had ever seen a factory custom Moto with this much visual impact before. The look was pure Harley, yet totally new. In the years since, the Fat Boy hasn't let up. From the chrome of the solid disc wheels, to the muscular lines of the new High Output Twin Cam 103B™ engine to the curve of its distinctive rear fender, this machine is built to make an impact. Ride one and you'll understand.
Informazioni generali
Categoria
Custom / cruiser
Prezzo da nuova
US$ 16699. Euro 21445. MSRP depends on country, taxes, accessories, etc.
Cilindrata
1690.0 cc (103.12 cubic inches)
Rapporto di compressione
10.0:1
Alesaggio x corsa
98.4 x 111.3 mm (3.9 x 4.4 inches)
Sistema di alimentazione
Injection. Electronic Sequential Port Fuel Injection
Controllo alimentazione
Double Overhead Cams/Twin Cam (DOHC)
Frizione
Multi-plate with diaphragm spring in oil bath
Trasmissione finale
Primary chain, 34/46 ratio
Consumo carburante
5.60 litres/100 km (17.9 km/l or 42.00 mpg)
Emissioni serra
129.9 CO2 g/km. (CO2 - emissione di anidride carbonica)
Impianto di scarico
Chrome, over/under shotgun exhaust with dual mufflers
Inclinazione cannotto di sterzo
31.0°
Avancorsa
147 mm (5.8 inches)
Ruote
Mirror Chrome Aluminum Bullet Hole Disc
Peso a secco
320.0 kg (705.5 pounds)
Weight incl. oil, gas, etc
333.0 kg (734.1 pounds)
Rapporto potenza/peso
0.2438 CV/kg
Altezza sella
690 mm (27.2 inches) If adjustable, lowest setting.
Lunghezza totale
2396 mm (94.3 inches)
Altezza da terra
130 mm (5.1 inches)
Interasse
1690 mm (66.5 inches)
Capacita carburante
18.93 litres (5.00 US gallons)
Capacita olio
3.30 litres (3.49 US quarts)
Colori disponibili
Velocity Red Sunglo, Billet Silver/Vivid Black, Cosmic Blue Pearl, Purple Fire/Blackberry Smoke, Vivid Black, Charcoal Denim
Avviamento
Elettrico
Strumentazione
Tank-mounted electronic speedometer with odometer, time-of-day clock on odometer, dual tripmeter, giri/min/gear display, fuel gauge with low fuel warning light and countdown feature, low oil pressure indicator light, engine diagnostics readout, LED indicator lights, 6 marce indicator light
Fari
High beam, neutral, low oil pressure, turn signals, engine diagnostics, security system (optional), 6 marce, low fuel warnings
Motore
Tipo motore
V2, four-stroke
Potenza
78.0 CV (56.9 kW)) @ 5250 giri/min
Coppia
132.0 Nm (13.5 kgf-m or 97.4 ft.lbs) @ 3250 giri/min
Sospensioni
Sospensione anteriore
Telescopic fork
Sospensione posteriore
Twin shocks
Ruote
Pneumatico anteriore
140/75-R17
Pneumatico posteriore
200/55-R17
Freni
Freno anteriore
Double disc. ABS. 4-piston.
Freno posteriore
Single disc. ABS. 2-piston.
Trasmissione
Cambio
6 marce
Tipo trasmissione
Cinghia (trasmissione finale)
Raffreddamento
Sistema di raffreddamento
Aria
