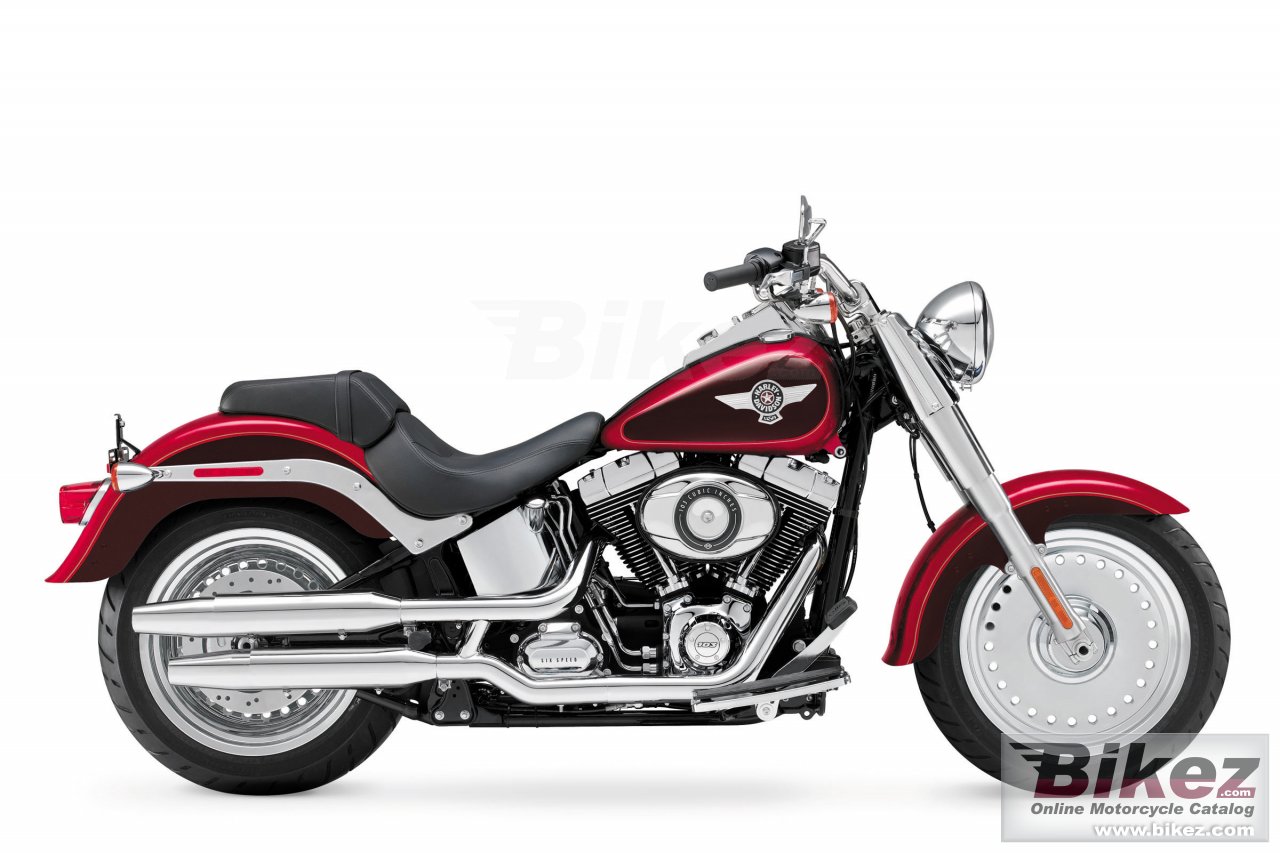

Softail Fat Boy
Scrivi la tua esperienza su Harley Davidson Softail Fat Boy
La recensione verrà pubblicata come topic forum personale. Se hai già recensito questo modello, il topic esistente verrà aggiornato.
Accedi per pubblicare una recensione e farla diventare un topic modificabile nel forum del modello.
Accedi per recensireThe original fat custom icon with a burly style that´s often imitated but never duplicated. Recalling the ´hardtail´ choppers of the ´60s and ´70s, the Fat Boy® Moto keeps that heritage alive more than forty years later. This is the original ´fat custom´ bike—laid-back and luxurious with an unmistakable Profilo on the road.
Informazioni generali
Categoria
Custom / cruiser
Prezzo da nuova
US$ 16999. Euro 20445. UK £ 15895. MSRP depends on country, taxes, accessories, etc.
Cilindrata
1688.0 cc (103.00 cubic inches)
Dettagli motore
Air-cooled, Twin Cam 103B™
Rapporto di compressione
9.6:1
Alesaggio x corsa
98.4 x 111.3 mm (3.9 x 4.4 inches)
Sistema di alimentazione
Injection. Electronic Sequential Port Fuel Injection (ESPFI)
Frizione
Multi-plate with diaphragm spring in oil bath
Trasmissione finale
Primary chain, 34/46 ratio
Consumo carburante
5.60 litres/100 km (17.9 km/l or 42.00 mpg)
Emissioni serra
129.9 CO2 g/km. (CO2 - emissione di anidride carbonica)
Impianto di scarico
Chrome, over/under shotgun exhaust with dual mufflers
Inclinazione cannotto di sterzo
31.0°
Avancorsa
147 mm (5.8 inches)
Ruote
Silver, Bullet Hole Disc Cast Aluminum
Peso a secco
313.0 kg (690.0 pounds)
Weight incl. oil, gas, etc
330.2 kg (728.0 pounds)
Altezza sella
635 mm (25.0 inches) If adjustable, lowest setting.
Lunghezza totale
2395 mm (94.3 inches)
Altezza da terra
130 mm (5.1 inches)
Interasse
1638 mm (64.5 inches)
Capacita carburante
18.93 litres (5.00 US gallons)
Capacita olio
3.30 litres (3.49 US quarts)
Colori disponibili
Midnight Pearl, Ember Red Sunglo/Merlot, Vivid Black, Big Blue Pearl
Avviamento
Elettrico
Strumentazione
Tank-mounted electronic speedometer with odometer, time-of-day clock on odometer, dual tripmeter, giri/min/gear display, fuel gauge with low fuel warning light and countdown feature, low oil pressure indicator light, engine diagnostics readout, LED indicator lights, 6 marce indicator light
Fari
High beam, neutral, low oil pressure, turn signals, engine diagnostics, security system (optional), 6 marce, low fuel warnings
Motore
Tipo motore
V2, four-stroke
Coppia
133.8 Nm (13.6 kgf-m or 98.7 ft.lbs) @ 3000 giri/min
Ruote
Pneumatico anteriore
140/75-R17
Pneumatico posteriore
200/55-R17
Freni
Freno anteriore
Double disc. 4-piston
Freno posteriore
Single disc. 2-piston
Trasmissione
Cambio
6 marce
Tipo trasmissione
Cinghia (trasmissione finale)
Raffreddamento
Sistema di raffreddamento
Aria
