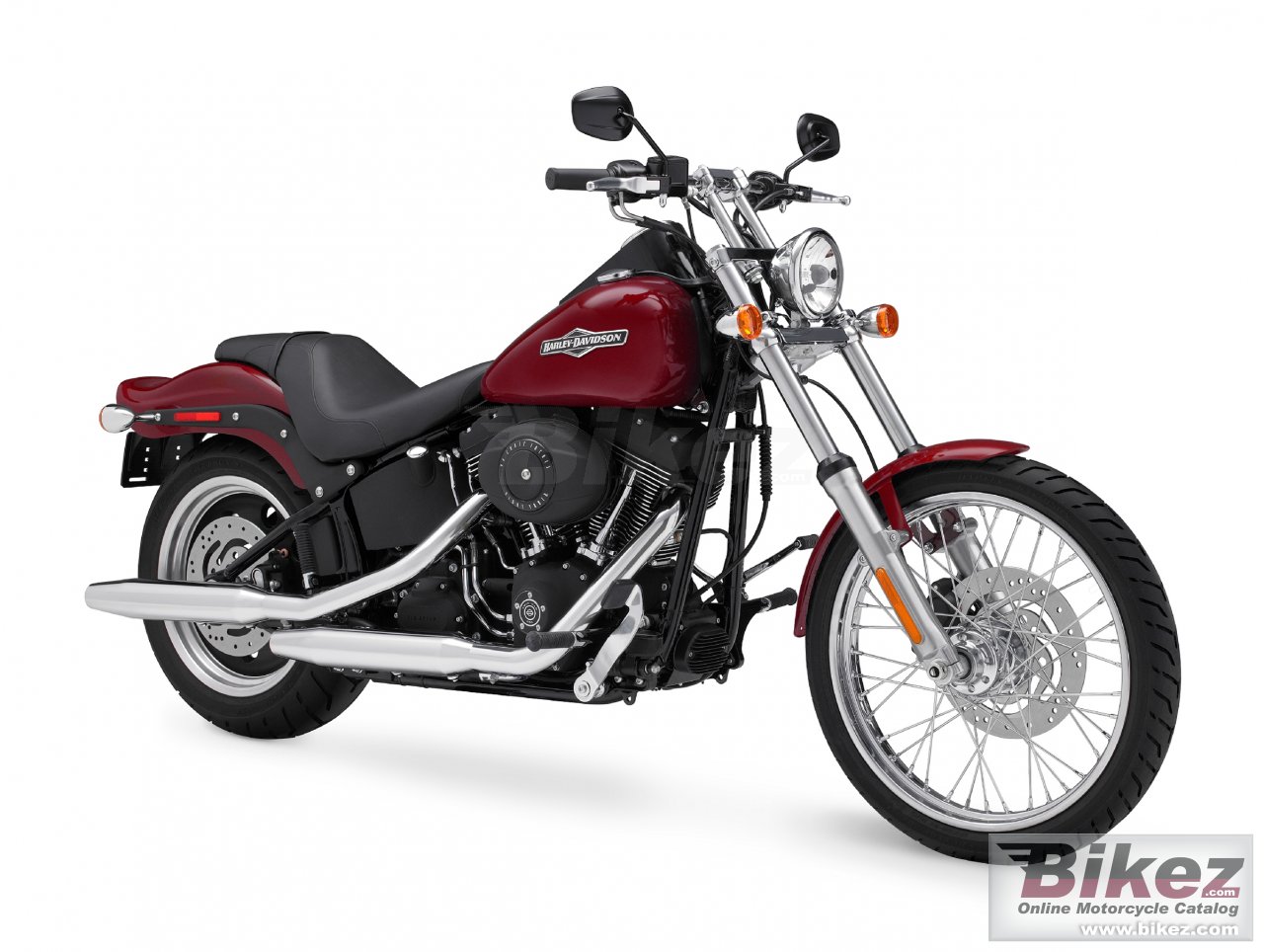

Fxstb Softail Night Train
Scrivi la tua esperienza su Harley Davidson Fxstb Softail Night Train
La recensione verrà pubblicata come topic forum personale. Se hai già recensito questo modello, il topic esistente verrà aggiornato.
Accedi per pubblicare una recensione e farla diventare un topic modificabile nel forum del modello.
Accedi per recensireBlack powder-coated engine with wrinkle-black treatment covers; Black "horseshoe" oil tank with chrome external oil lines; Black, nostalgic fuel tank console; Bullet headlamp; Chrome, isolated riser; Forward-mounted rider footpegs; Standard passenger footpegs; Stainless steel, drag-style handlebars; One-piece, two-up Badlander™ seat;"ape-hanger" handlebar; Gloss black console with cat-eye indicators; Rider adjusted, two-position, sprung solo seat; Tribal pinstripe graphics on fuel tank and fenders; Nostalgic patent badge on oil tank; Gloss black, oval air cleaner cover; Half moon floorboards with heel/toe shifter; New Willie G. signed skull graphics on the oil tankoil tank with chrome external oil lines; Chrome, bullet headlamp; Standard passenger footpegs; Chrome auxiliary lamps; New quick detachable king-size Lexan windshield; New 1940's-style leather saddlebags with quick opening buckles; New passenger seat; New passenger backrest; New Touring handlebars with new top clamp and risers; Full FL front fender with new chrome accents; New two-tone leather tank panel; New Hydra Glide style, chrome nacelle with horizontal "knuckles"; New "old-school" shaped, stainless steel rider footboards and brake paddle
Informazioni generali
Tipologia
Custom / cruiser
Cilindrata
1584.0 cc (96.66 cubic inches)
Tipo motore
V2, four-stroke
Rapporto di compressione
9.2:1
Alesaggio x corsa
95.3 x 111.1 mm (3.8 x 4.4 inches)
Sistema di alimentazione
Injection
Frizione
Wet multiplate
Impianto di scarico
Chrome, staggered shorty exhaust with dual mufflers
Inclinazione cannotto di sterzo
32.0°
Avancorsa
127 mm (5.0 inches)
Escursione anteriore
142 mm (5.6 inches)
Escursione posteriore
109 mm (4.3 inches)
Diametro
292 mm (11.5 inches)
Peso a secco
303.0 kg (668.0 pounds)
Altezza sella
640 mm (25.2 inches) If adjustable, lowest setting.
Lunghezza totale
2410 mm (94.9 inches)
Altezza da terra
130 mm (5.1 inches)
Interasse
1700 mm (66.9 inches)
Capacita carburante
18.90 litres (4.99 US gallons)
Colori disponibili
Vivid Black, Black Pearl, Black Denim, Red Hot Sunglo
Avviamento
Elettrico
Modifications compared to previous model
New low-Profilo front fender
Motore
Coppia
117.0 Nm (11.9 kgf-m or 86.3 ft.lbs) @ 3200 giri/min
Sospensioni
Sospensione anteriore
41.3mm telescopic fork
Sospensione posteriore
Hidden, horizontal-mounted, coil-over
Telaio
Tipologia telaio
Mild steel tubular frame; rectangular section backbone
Ruote
Pneumatico anteriore
MT90-21
Pneumatico posteriore
200/55-R17
Freni
Freno anteriore
Disco singolo
Freno posteriore
Disco singolo
Trasmissione
Cambio
6 marce
Tipo trasmissione
Cinghia (trasmissione finale)
Raffreddamento
Sistema di raffreddamento
Aria
