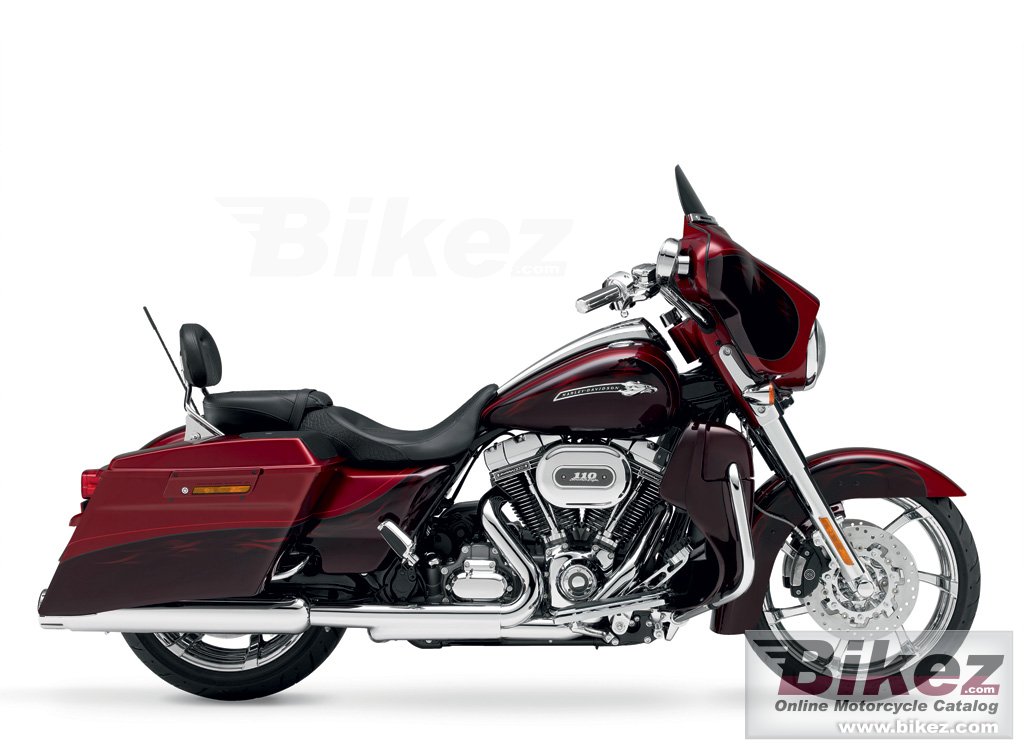

Flhxse3 Cvo Street Glide
Scrivi la tua esperienza su Harley Davidson Flhxse3 Cvo Street Glide
La recensione verrà pubblicata come topic forum personale. Se hai già recensito questo modello, il topic esistente verrà aggiornato.
Accedi per pubblicare una recensione e farla diventare un topic modificabile nel forum del modello.
Accedi per recensireCVO is ab abbreviation of HD´s Custom Vehicle Operations.
Informazioni generali
Tipologia
Custom / cruiser
Cilindrata
1802.7 cc (110.00 cubic inches)
Tipo motore
V2, four-stroke
Dettagli motore
Air-cooled, Twin Cam 110™
Rapporto di compressione
9.2:1
Alesaggio x corsa
101.6 x 111.3 mm (4.0 x 4.4 inches)
Valvole per cilindro
2
Sistema di alimentazione
Injection. Electronic Sequential Port Fuel Injection (ESPFI)
Controllo alimentazione
Double Overhead Cams/Twin Cam (DOHC)
Sistema di lubrificazione
Pressurized, dry-sump with oil cooler
Frizione
Hydraulically actuated, 9-plate wet with high performance spring
Trasmissione finale
Primary drive chain, 34/46 ratio. Final Drive Belt, 32/68 ratio
Consumo carburante
5.74 litres/100 km (17.4 km/l or 40.98 mpg)
Emissioni serra
133.2 CO2 g/km. (CO2 - emissione di anidride carbonica)
Impianto di scarico
Chrome dual exhaust with 4in. touring mufflers with custom end caps
Inclinazione cannotto di sterzo
26.0°
Avancorsa
170 mm (6.7 inches)
Escursione anteriore
117 mm (4.6 inches)
Escursione posteriore
51 mm (2.0 inches)
Diametro
300 mm (11.8 inches)
Ruote
Mirror Chrome Agitator Custom Wheels
Sella
Custom low Profilo, solo leather touring seat with an embossed pattern
Peso a secco
372.0 kg (820.0 pounds)
Weight incl. oil, gas, etc
389.2 kg (858.0 pounds)
Altezza sella
673 mm (26.5 inches) If adjustable, lowest setting.
Lunghezza totale
2443 mm (96.2 inches)
Altezza da terra
130 mm (5.1 inches)
Interasse
1613 mm (63.5 inches)
Capacita carburante
22.71 litres (6.00 US gallons)
Capacita olio
3.80 litres (4.02 US quarts)
Colori disponibili
Dark Slate/Black Diamond with Phantom Flame graphics, Hot Citrus/Antique Gunstock with Phantom Flame graphics, Ruby Red/Typhoon Maroon with Phantom Flame graphics
Avviamento
Elettrico
Strumentazione
Diamond cut finish, fairing mounted electronic speedometer, odometer with resettable trip meter, fuel range countdown, engine diagnostic read-out, 2 in. voltmeter and oil pressure diamond cut gauges, diamond cut tachometer
Impianto elettrico
Sealed, maintenance-free battery
Fari
55-watt low beam, 120-watt high beam headlight
Garanzia di fabbrica
2 years, unlimited mileage.
Motore
Coppia
160.0 Nm (16.3 kgf-m or 118.0 ft.lbs) @ 3750 giri/min
Sospensioni
Sospensione anteriore
41.3 mm telescopic with blow-by valve
Sospensione posteriore
Hydraulic, adjustable
Telaio
Tipologia telaio
Mild steel; tubular frame, two-piece stamped and welded backbone; cast and forged junctions; twin down tubes; bolt-on rear frame with forged fender supports; MIG welded
Ruote
Pneumatico anteriore
130/60-B19
Pneumatico posteriore
180/55-B18
Freni
Freno anteriore
Double disc. 4-piston calipers. ABS.
Freno posteriore
Single disc. 4-piston caliper. ABS.
Trasmissione
Cambio
6 marce
Tipo trasmissione
Cinghia (trasmissione finale)
Raffreddamento
Sistema di raffreddamento
Aria
