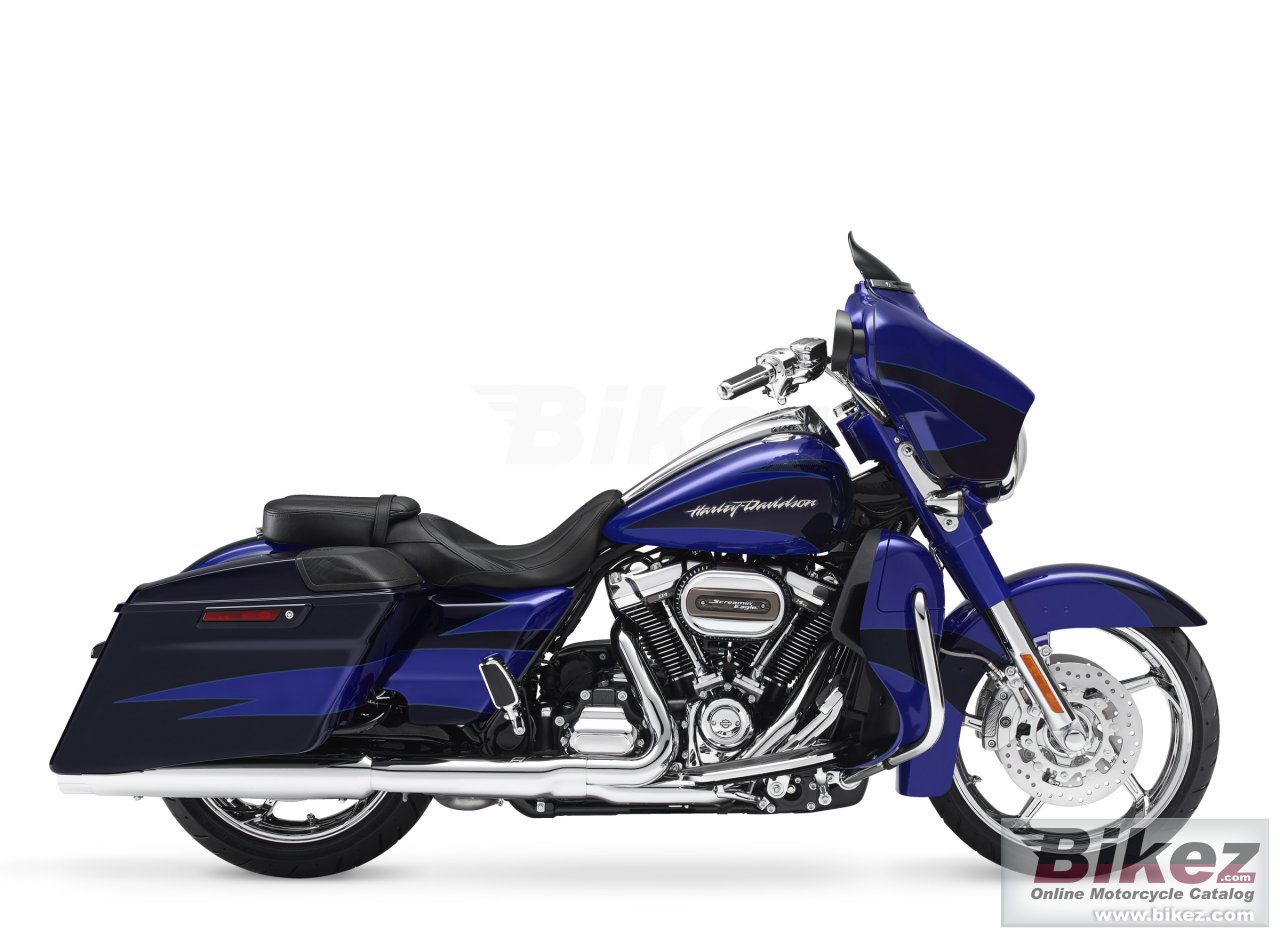

Cvo Street Glide

Categoria

Touring

Prezzo da nuova

US$ 37799. Euro 39195. MSRP depends on country, taxes, accessories, etc.

Cilindrata

1868.2 cc (114.00 cubic inches)

Dettagli motore

Twin-Cooled Milwaukee-Eight 114

Rapporto di compressione

10.5:1

Alesaggio x corsa

102.0 x 114.3 mm (4.0 x 4.5 inches)

Sistema di alimentazione

Injection. ESPFI

Controllo alimentazione

Double Overhead Cams/Twin Cam (DOHC)

Sistema di lubrificazione

Coppa secca

Frizione

Multi-plate with diaphragm spring in oil bath

Trasmissione finale

Chain, 34/46 ratio primary drive

Consumo carburante

5.50 litres/100 km (18.2 km/l or 42.77 mpg)

Emissioni serra

127.6 CO2 g/km. (CO2 - emissione di anidride carbonica)

Impianto di scarico

Chrome dual exhaust with 4 inch touring mufflers and touring muffler shields

Inclinazione cannotto di sterzo

26.0°

Avancorsa

170 mm (6.7 inches)

Ruote

Mirror Chrome Aggressor Custom Wheel

Peso a secco

380.0 kg (837.8 pounds)

Weight incl. oil, gas, etc

398.0 kg (877.4 pounds)

Rapporto potenza/peso

0.2684 CV/kg

Altezza sella

690 mm (27.2 inches) If adjustable, lowest setting.

Lunghezza totale

2435 mm (95.9 inches)

Altezza da terra

125 mm (4.9 inches)

Interasse

1625 mm (64.0 inches)

Capacita carburante

22.71 litres (6.00 US gallons)

Capacita olio

4.70 litres (4.97 US quarts)

Colori disponibili

Candy Cobalt/Indigo Ink, Sunburst Orange/Starfire Black, Darl Slate Candy/Arctic Black, Starfire Black/Atomic Red Black Licorice/Midnight Cobolt Flames, Atomic Red/Candy Apple Flames, White Amethyst/Black Flames, Carbon Crystal/Balck Flames

Avviamento

Elettrico

Strumentazione

Large speedometer and tachometer with wide numbers; large fuel and volt gauges with wide numbers; display features odometer, trip A, trip B, range to empty, and gear indicator; and larger telltale indicators, including new reverse indicator light

Fari

High beam, running lights, front fender light, directional light bar, neutral, low oil pressure, engine diagnostics, turn signals, security system (optional), 6 marce, low fuel warning, cruise control (optional), ABS (optional)

Capacita di carico

Saddle bags

Tipo motore

V2, four-stroke

Potenza

102.0 CV (74.5 kW)) @ 5250 giri/min

Coppia

165.0 Nm (16.8 kgf-m or 121.7 ft.lbs) @ 3250 giri/min

Sospensione anteriore

Telescopic fork

Sospensione posteriore

Twin shocks

Pneumatico anteriore

130/70-B19

Pneumatico posteriore

180/55-B18

Freno anteriore

Double disc. ABS. 4-piston

Freno posteriore

Single disc. ABS. 4-piston

Cambio

6 marce

Tipo trasmissione

Cinghia (trasmissione finale)

Sistema di raffreddamento

Oil & air
