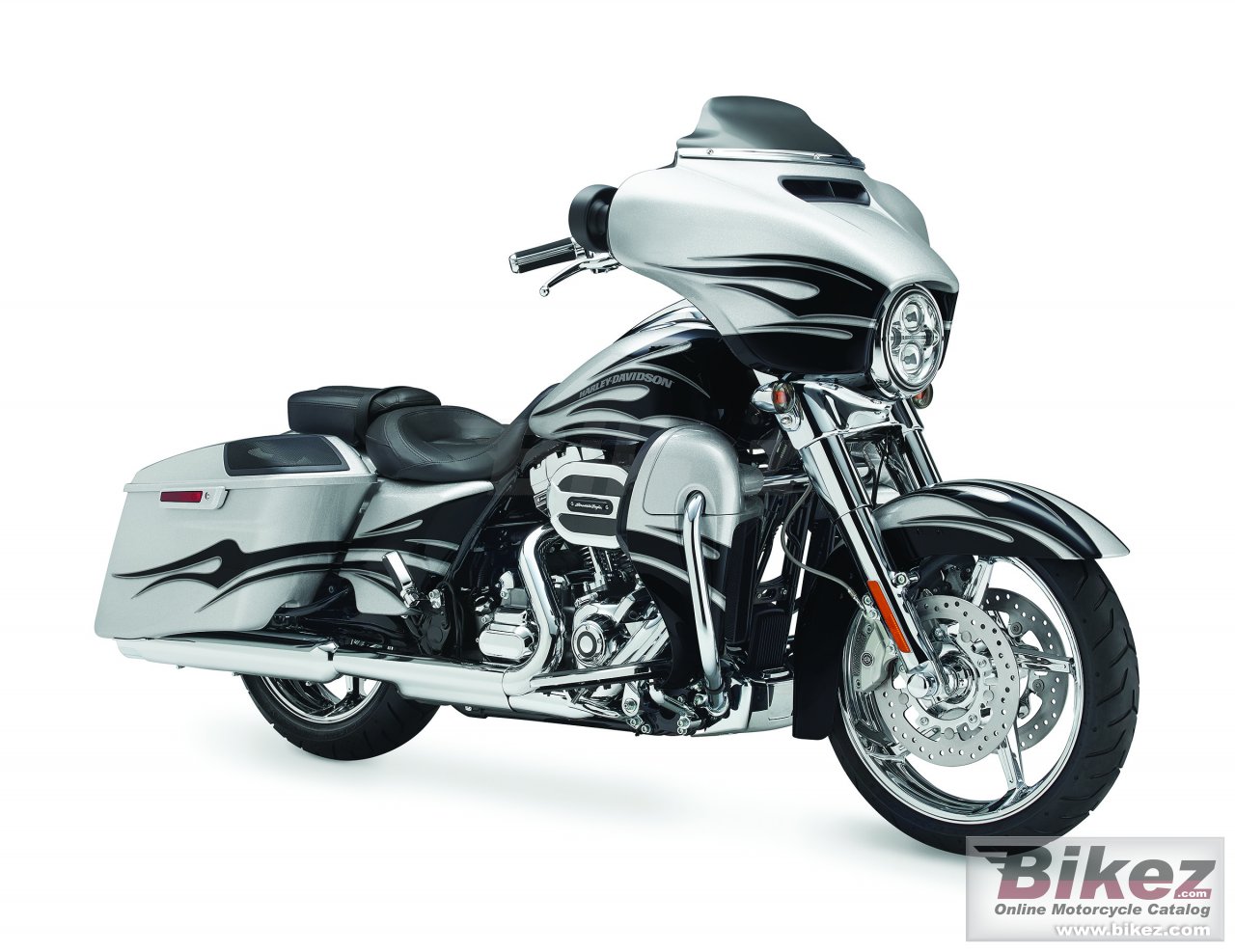

Cvo Street Glide

Categoria

Touring

Prezzo da nuova

US$ 36349. Euro 38035. MSRP depends on country, taxes, accessories, etc.

Cilindrata

1801.0 cc (109.90 cubic inches)

Dettagli motore

Twin-Cooled™ Twin Cam 110™

Rapporto di compressione

9.2:1

Alesaggio x corsa

101.6 x 111.3 mm (4.0 x 4.4 inches)

Sistema di alimentazione

Injection. ESPFI

Sistema di lubrificazione

Coppa secca

Frizione

Multi-plate with diaphragm spring in oil bath

Trasmissione finale

Chain, 34/46 ratio primary drive

Consumo carburante

5.70 litres/100 km (17.5 km/l or 41.27 mpg)

Emissioni serra

132.2 CO2 g/km. (CO2 - emissione di anidride carbonica)

Impianto di scarico

Chrome dual exhaust with 4 inch touring mufflers and touring muffler shields

Inclinazione cannotto di sterzo

26.0°

Avancorsa

170 mm (6.7 inches)

Ruote

Mirror Chrome Aggressor Custom Wheel

Peso a secco

380.0 kg (837.8 pounds)

Weight incl. oil, gas, etc

395.0 kg (870.8 pounds)

Rapporto potenza/peso

0.2541 CV/kg

Altezza sella

690 mm (27.2 inches) If adjustable, lowest setting.

Lunghezza totale

2450 mm (96.5 inches)

Altezza da terra

120 mm (4.7 inches)

Interasse

1625 mm (64.0 inches)

Capacita carburante

22.71 litres (6.00 US gallons)

Capacita olio

3.80 litres (4.02 US quarts)

Colori disponibili

Starfire Black/Gold Dust Flames, Hard Candy Mercury/Smoke Quartz Flames, Ultraviolet Blue/Molten Lava Flames, Scorching Yellow/Starfire Black Flames

Avviamento

Elettrico

Strumentazione

Fairing-mounted electronic speedometer with odometer; time-of-day clock on CD player/stereo; dual trip meter; low fuel indicator light and mileage countdown feature; low oil pressure indicator light; engine diagnostics readout; LED indicator lights; 6 marce indicator light Tachometer with fuel, voltage, oil pressure and ambient air temperature gauges

Fari

High beam, running lights, front fender light, directional light bar, neutral, low oil pressure, engine diagnostics, turn signals, security system (optional), 6 marce, low fuel warning, cruise control (optional), ABS (optional)

Capacita di carico

Saddle bags

Tipo motore

V2, four-stroke

Potenza

96.6 CV (70.5 kW)) @ 5100 giri/min

Coppia

156.0 Nm (15.9 kgf-m or 115.1 ft.lbs) @ 3250 giri/min

Pneumatico anteriore

130/70-B19

Pneumatico posteriore

180/55-BW18

Freno anteriore

Double disc. ABS. 4-piston

Freno posteriore

Single disc. ABS. 2-piston

Cambio

6 marce

Tipo trasmissione

Cinghia (trasmissione finale)

Sistema di raffreddamento

Oil & air
