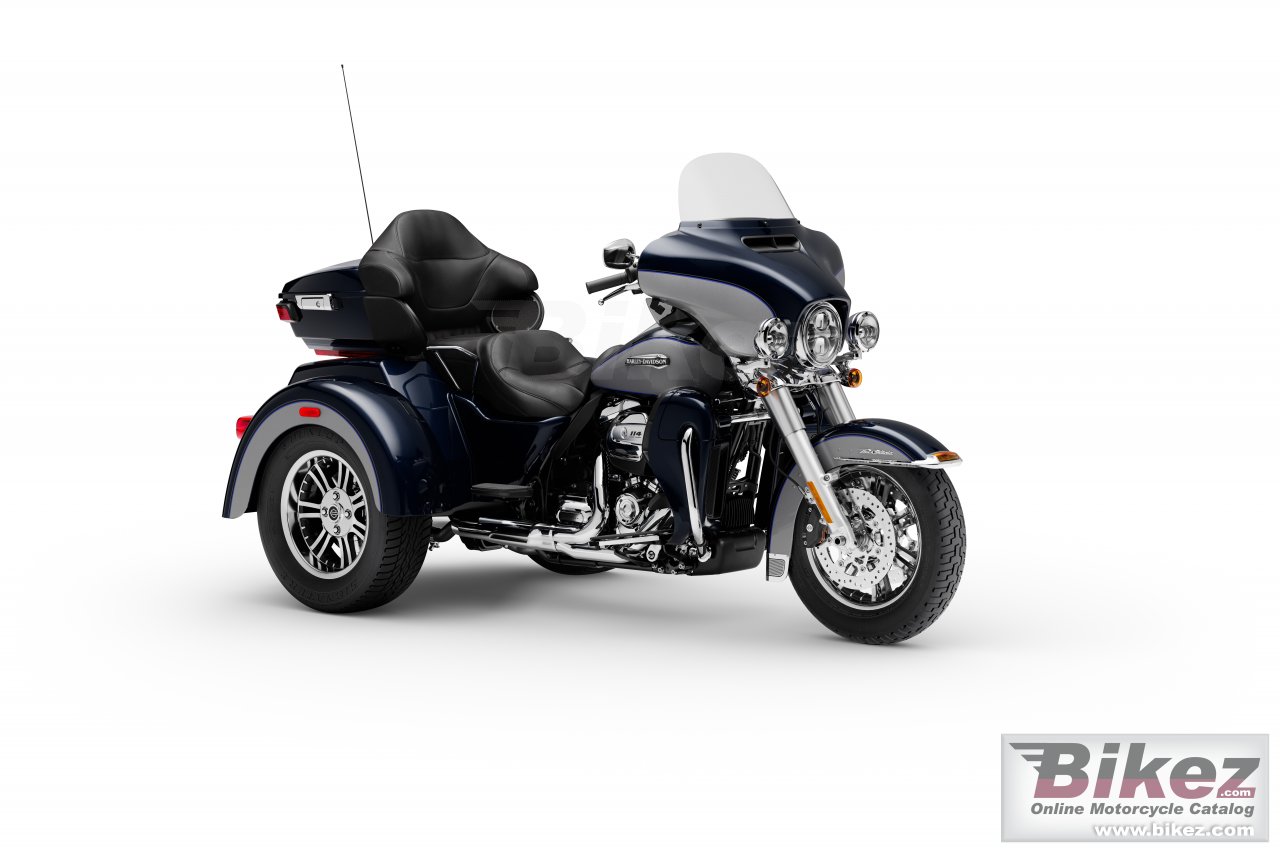

Tri Glide Ultra

Tipologia

Touring

Prezzo da nuova

US$ 34999. MSRP depends on country, taxes, accessories, etc.

Cilindrata

1868.0 cc (113.99 cubic inches)

Tipo motore

V2, four-stroke

Dettagli motore

Twin-Cooled™ Milwaukee-Eight® 114 engine

Potenza

100.0 CV (73.0 kW)) @ 5000 giri/min

Rapporto di compressione

10.5:1

Alesaggio x corsa

102.0 x 114.3 mm (4.0 x 4.5 inches)

Sistema di alimentazione

Injection. Electronic Sequential Port Fuel Injection (ESPFI)

Controllo alimentazione

Double Overhead Cams/Twin Cam (DOHC)

Frizione

Multi-plate with diaphragm spring in oil bath

Trasmissione finale

Chain, 34/46 ratio primary drive

Consumo carburante

5.60 litres/100 km (17.9 km/l or 42.00 mpg)

Emissioni serra

129.9 CO2 g/km. (CO2 - emissione di anidride carbonica)

Impianto di scarico

Chrome, 2-1-2 dual exhaust with tapered mufflers

Inclinazione cannotto di sterzo

26.0°

Avancorsa

100 mm (3.9 inches)

Ruote

Black, 7-spoke Cast Aluminum. Two rear wheels.

Peso a secco

545.7 kg (1,203.0 pounds)

Weight incl. oil, gas, etc

563.8 kg (1,243.0 pounds)

Rapporto potenza/peso

0.1833 CV/kg

Altezza sella

735 mm (28.9 inches) If adjustable, lowest setting.

Lunghezza totale

2670 mm (105.1 inches)

Larghezza totale

1395 mm (54.9 inches)

Altezza da terra

125 mm (4.9 inches)

Interasse

1670 mm (65.7 inches)

Capacita carburante

22.71 litres (6.00 US gallons)

Capacita olio

4.70 litres (4.97 US quarts)

Colori disponibili

Vivid Black, Spruce, Midnight Blue/Barracuda Silver, River Rock Grey/Vivid Black, Tahitian Teal

Avviamento

Elettrico

Strumentazione

Large speedometer and tachometer with wide numbers; large fuel and volt gauges with wide numbers; display features odometer, trip A, trip B, range to empty, and gear indicator; and larger telltale indicators, including new reverse indicator light

Fari

High Beam, running lights, front fender running lights, directional light bar, low oil pressure, engine diagnostics, cruise control, speakers, accessory, security system (optional), 6 speed, low fuel warning, reverse enabled

Capacita di carico

Trunk and top box

Coppia

164.1 Nm (16.7 kgf-m or 121.0 ft.lbs) @ 3250 giri/min

Sospensione anteriore

Telescopic fork

Pneumatico anteriore

MT90-B16

Pneumatico posteriore

205/65-R15

Freno anteriore

Double disc. 6 piston. ABS.

Freno posteriore

Single disc. ABS. Integrated park brake.

Cambio

6 marce

Tipo trasmissione

Cinghia (trasmissione finale)

Sistema di raffreddamento

Aria
