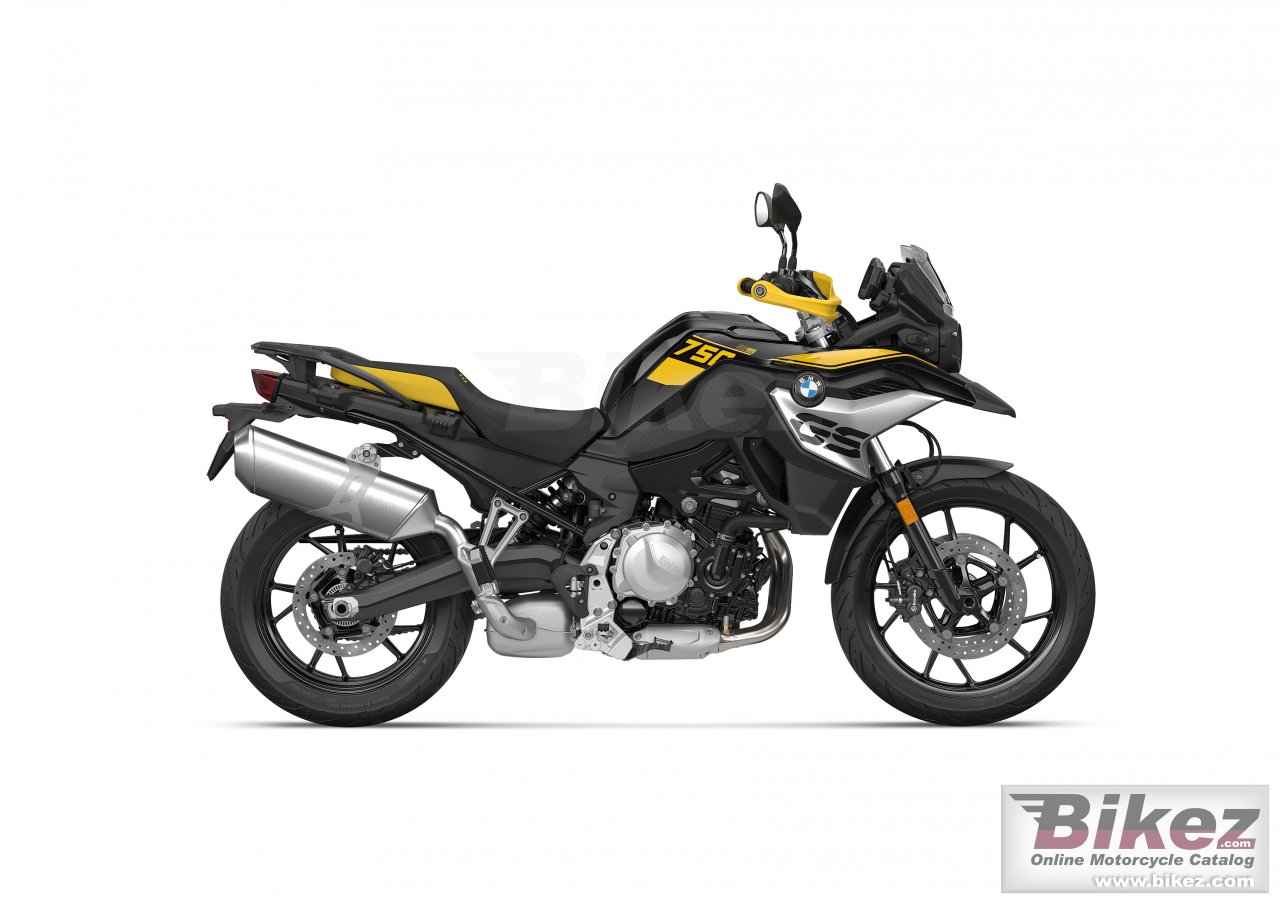

Accedi per recensireThe success story of the GS begins in the 80´s: Since then, it has stood for curiosity and boundless adventure. The F 750 GS "40 Years GS" edition celebrates this attitude to life: It is an homage to the history of the GS and bears the striking black-yellow of the legendary R 100 GS.
Informazioni generali
Categoria
Enduro / fuoristrada
Cilindrata
853.0 cc (52.05 cubic inches)
Velocita massima
190.0 km/h (118.1 mph)
Rapporto di compressione
12.7:1
Alesaggio x corsa
84.0 x 77.0 mm (3.3 x 3.0 inches)
Valvole per cilindro
4
Sistema di alimentazione
Injection. Electronic fuel injection
Controllo alimentazione
Double Overhead Cams/Twin Cam (DOHC)
Sistema di lubrificazione
Coppa secca
Frizione
Multiple-disc clutch in oil bath, mechanically operated
Trasmissione finale
Endless O-ring chain with shock damping in rear wheel hub
Consumo carburante
4.20 litres/100 km (23.8 km/l or 56.00 mpg)
Emissioni serra
97.4 CO2 g/km. (CO2 - emissione di anidride carbonica)
Dettagli emissioni
Closed-loop 3-way catalytic converter, emission standard EU- 5
Inclinazione cannotto di sterzo
27.0°
Avancorsa
105 mm (4.1 inches)
Escursione anteriore
170 mm (6.7 inches)
Escursione posteriore
170 mm (6.7 inches)
Diametro
305 mm (12.0 inches)
Diametro
265 mm (10.4 inches)
Ruote
Cast aluminium wheels
Weight incl. oil, gas, etc
227.0 kg (500.4 pounds)
Altezza sella
815 mm (32.1 inches) If adjustable, lowest setting.
Altezza sella alternativa
790 mm (31.1 inches) If adjustable, highest setting.
Altezza totale
1225 mm (48.2 inches)
Lunghezza totale
2255 mm (88.8 inches)
Larghezza totale
922 mm (36.3 inches)
Interasse
1559 mm (61.4 inches)
Capacita carburante
15.00 litres (3.96 US gallons)
Capacita carburante di riserva
3.50 litres (0.92 US gallons)
Colori disponibili
Black/Yellow
Avviamento
Elettrico
Impianto elettrico
Three-phase 416 W generator. 12 V / 10 Ah, maintenance-free battery.
Fari
LED headlight
Motore
Tipo motore
Twin, four-stroke
Potenza
77.0 CV (56.2 kW)) @ 7500 giri/min
Coppia
83.0 Nm (8.5 kgf-m or 61.2 ft.lbs) @ 6000 giri/min
Sospensioni
Sospensione anteriore
Telescopic fork, 41 mm
Sospensione posteriore
Cast aluminum 2-sided swing arm, central spring strut, spring pre-load hydraulically adjustable (continuously variable) at handwheel, rebound damping adjustable
Telaio
Tipologia telaio
Bridge-type frame, steel shell construction
Ruote
Pneumatico anteriore
110/80-19
Pneumatico posteriore
150/70-17
Freni
Freno anteriore
Double disc. ABS. Floating discs. Two-piston calipers.
Freno posteriore
Single disc. ABS. Floating disc. Single-piston caliper.
Trasmissione
Cambio
6 marce
Tipo trasmissione
Catena (trasmissione finale)
Raffreddamento
Sistema di raffreddamento
Liquido
