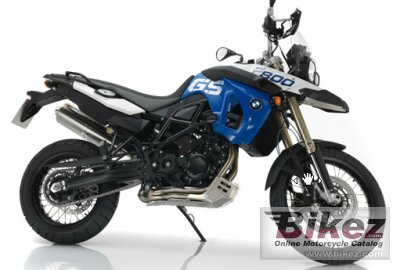

F 800 Gs Trophy
Scrivi la tua esperienza su Bmw F 800 Gs Trophy
La recensione verrà pubblicata come topic forum personale. Se hai già recensito questo modello, il topic esistente verrà aggiornato.
Accedi per pubblicare una recensione e farla diventare un topic modificabile nel forum del modello.
Accedi per recensireThe F 800 GS has gone from strength to strength as the phenomenal 798cc parallel twin has become more and more efficient, and the durability and outstanding performance of the GS have resulted in staggering performance both on and off-road. The new combination of Desert Blue non-metallic and Alpine White pays homage to the exciting and extremely challenging event held in 2010, which saw the UK team overcome the threat from 13 other nations in the depths of South Africa to bring the GS trophy to the UK.
Informazioni generali
Categoria
Enduro / fuoristrada
Cilindrata
798.0 cc (48.69 cubic inches)
Potenza
48.0 CV (35.0 kW)) @ 7500 giri/min
Rapporto di compressione
12.0:1
Alesaggio x corsa
82.0 x 75.6 mm (3.2 x 3.0 inches)
Valvole per cilindro
4
Sistema di alimentazione
Injection. Electronic intake pipe injection / digital engine management (BMS-K)
Controllo alimentazione
Double Overhead Cams/Twin Cam (DOHC)
Sistema di lubrificazione
Coppa secca
Frizione
Multiple-disc clutch in oil bath, mechanically operated
Trasmissione finale
Endless O-ring chain with shock damping in rear wheel hub
Consumo carburante
3.80 litres/100 km (26.3 km/l or 61.90 mpg)
Emissioni serra
88.2 CO2 g/km. (CO2 - emissione di anidride carbonica)
Dettagli emissioni
Closed-loop 3-way catalytic converter, emission standard EU-3
Impianto di scarico
Complete stainless steel exhaust system
Inclinazione cannotto di sterzo
26.0°
Avancorsa
117 mm (4.6 inches)
Escursione anteriore
230 mm (9.1 inches)
Escursione posteriore
215 mm (8.5 inches)
Diametro
300 mm (11.8 inches)
Diametro
265 mm (10.4 inches)
Ruote
Wire spoke
Sella
One piece dual seat
Peso a secco
185.0 kg (407.9 pounds)
Weight incl. oil, gas, etc
207.0 kg (456.4 pounds)
Rapporto potenza/peso
0.2595 CV/kg
Altezza sella
880 mm (34.6 inches) If adjustable, lowest setting.
Altezza sella alternativa
765 mm (30.1 inches) If adjustable, highest setting.
Altezza totale
1350 mm (53.1 inches)
Lunghezza totale
2320 mm (91.3 inches)
Interasse
1578 mm (62.1 inches)
Capacita carburante
16.00 litres (4.23 US gallons)
Capacita carburante di riserva
4.00 litres (1.06 US gallons)
Colori disponibili
Desert Blue non-metallic/Alpine White
Avviamento
Elettrico
Motore
Tipo motore
Twin, four-stroke
Coppia
83.0 Nm (8.5 kgf-m or 61.2 ft.lbs) @ 5750 giri/min
Sospensioni
Sospensione anteriore
Upside-down front fork, 45 mm
Sospensione posteriore
Double sided aluminium swing arm, WAD strut (travel related damping), spring pre-load hydraulically adjustable (continuously variable) at handwheel, rebound damping adjustable
Telaio
Tipologia telaio
Tubular steel space frame, load-bearing engine
Ruote
Pneumatico anteriore
90/90-V21
Pneumatico posteriore
150/70-V17
Freni
Freno anteriore
Double disc. Optional ABS. Can be switched off.
Freno posteriore
Single disc. Optional ABS. Can be switched off.
Trasmissione
Cambio
6 marce
Tipo trasmissione
Catena (trasmissione finale)
Raffreddamento
Sistema di raffreddamento
Liquido
