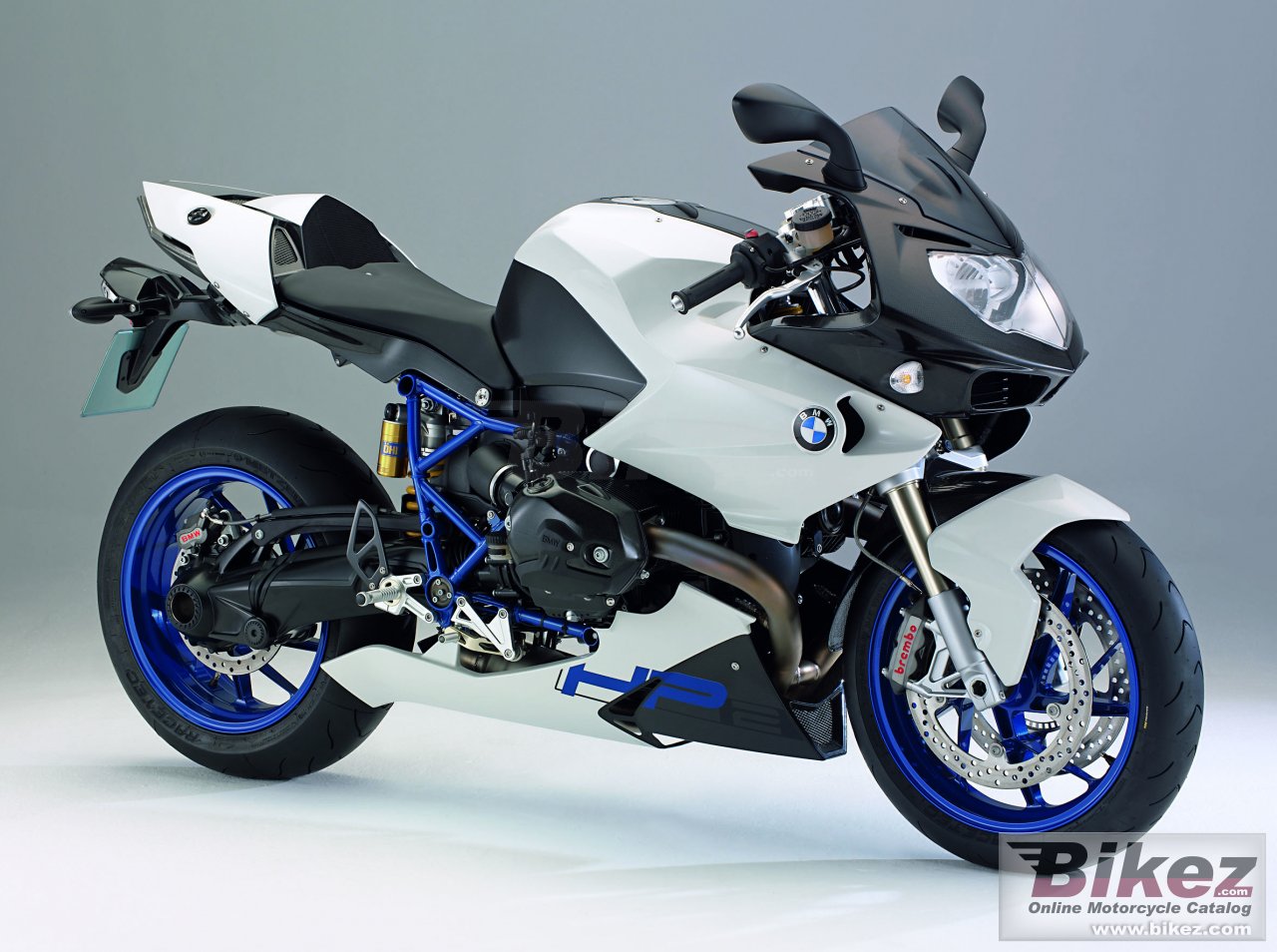

Accedi per recensireOutstanding race results are inexorably linked with BMW Motorrad's flat twin "Boxer" models. So it is an obvious step to build a high-end version! The result is the BMW HP2 Sport: the uncompromising realisation of the 24-Hour Endurance racer as a road machine.
Informazioni generali
Categoria
Sportiva
Cilindrata
1170.0 cc (71.39 cubic inches)
Rapporto di compressione
12.5:1
Alesaggio x corsa
101.0 x 73.0 mm (4.0 x 2.9 inches)
Valvole per cilindro
4
Sistema di alimentazione
Injection. Electronic intake pipe injection / BMS-K digital engine management with overrun fuel cut-off, single-spark ignition
Frizione
Single dry plate clutch, hydraulically operated
Inclinazione cannotto di sterzo
24.0°
Avancorsa
86 mm (3.4 inches)
Escursione anteriore
105 mm (4.1 inches)
Escursione posteriore
120 mm (4.7 inches)
Diametro
320 mm (12.6 inches)
Diametro
265 mm (10.4 inches)
Peso a secco
178.0 kg (392.4 pounds)
Weight incl. oil, gas, etc
199.0 kg (438.7 pounds)
Rapporto potenza/peso
0.7383 CV/kg
Altezza sella
830 mm (32.7 inches) If adjustable, lowest setting.
Lunghezza totale
2135 mm (84.1 inches)
Larghezza totale
750 mm (29.5 inches)
Interasse
1485 mm (58.5 inches)
Capacita carburante
16.00 litres (4.23 US gallons)
Capacita carburante di riserva
2.00 litres (0.53 US gallons)
Avviamento
Elettrico
Motore
Tipo motore
Two cylinder boxer, two-stroke
Potenza
131.4 CV (95.9 kW)) @ 8750 giri/min
Coppia
115.0 Nm (11.7 kgf-m or 84.8 ft.lbs) @ 6000 giri/min
Sospensioni
Sospensione anteriore
Telelever, spring pre-load continuously variable, compression damping, rebound damping and vehicle height adjustable
Sospensione posteriore
EVO Paralever, Öhlins central spring strut, spring pre-load continuously adjustable, rebound and compression damping adjustable, vehicle height adjustable
Telaio
Tipologia telaio
Tubular steel space frame, front and rear made of self-supporting carbon
Ruote
Pneumatico anteriore
120/70-17
Pneumatico posteriore
190/55-17
Freni
Freno anteriore
Doppio disco
Freno posteriore
Disco singolo
Trasmissione
Cambio
6 marce
Tipo trasmissione
Shaft drive (cardan) (final drive)
Raffreddamento
Sistema di raffreddamento
Oil & air
