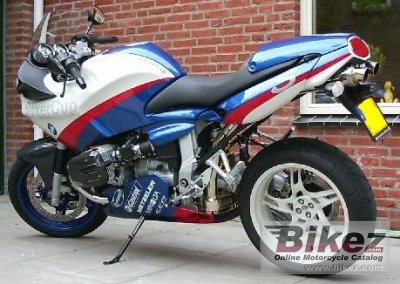

R 1100 S Boxercup Replica
Scrivi la tua esperienza su Bmw R 1100 S Boxercup Replica
La recensione verrà pubblicata come topic forum personale. Se hai già recensito questo modello, il topic esistente verrà aggiornato.
Accedi per pubblicare una recensione e farla diventare un topic modificabile nel forum del modello.
Accedi per recensireThe race for the limited edition BMW R 1100 S BoxerCup Replika bikes - model year 2004 is on (production limited to 1,100 models). The raised sports suspension is designed for extreme leaning and the sound-optimised sports silencers by the company LASER ensure ideal performance delivery. The BoxerCup Replika features exactly the same design and three-colour paintwork as the racebikes of the BMW Motorrad BoxerCup 2004.
Informazioni generali
Tipologia
Sportiva
Cilindrata
1085.0 cc (66.21 cubic inches)
Tipo motore
Two cylinder boxer, four-stroke
Potenza
96.6 CV (70.5 kW)) @ 7250 giri/min
Velocita massima
200.0 km/h (124.3 mph)
Rapporto di compressione
11.3:1
Alesaggio x corsa
99.0 x 70.5 mm (3.9 x 2.8 inches)
Valvole per cilindro
4
Sistema di alimentazione
Injection
Controllo alimentazione
Overhead Cams (OHC)
Consumo carburante
4.70 litres/100 km (21.3 km/l or 50.05 mpg)
Emissioni serra
109.0 CO2 g/km. (CO2 - emissione di anidride carbonica)
Escursione anteriore
110 mm (4.3 inches)
Escursione posteriore
130 mm (5.1 inches)
Diametro
320 mm (12.6 inches)
Diametro
276 mm (10.9 inches)
Peso a secco
208.0 kg (458.6 pounds)
Weight incl. oil, gas, etc
229.0 kg (504.9 pounds)
Rapporto potenza/peso
0.4642 CV/kg
Altezza sella
860 mm (33.9 inches) If adjustable, lowest setting.
Altezza sella alternativa
845 mm (33.3 inches) If adjustable, highest setting.
Altezza totale
1160 mm (45.7 inches)
Lunghezza totale
2180 mm (85.8 inches)
Larghezza totale
895 mm (35.2 inches)
Interasse
1478 mm (58.2 inches)
Capacita carburante
18.00 litres (4.76 US gallons)
Capacita carburante di riserva
4.00 litres (1.06 US gallons)
Motore
Coppia
97.0 Nm (9.9 kgf-m or 71.5 ft.lbs) @ 5750 giri/min
Sospensioni
Sospensione anteriore
BMW Motorrad Telelever; stanchion diameter 35 mm, central spring strut, rebound damping adjustable
Sospensione posteriore
Die-cast aluminium single-sided swing arm with BMW Motorrad Paralever; central spring strut, spring pre-load hydraulically adjustable to continuously variable levels by means of handwheel, rebound damping adjustable
Telaio
Tipologia telaio
Three-section composite frame consisting of front and rear section, load bearing engine
Ruote
Pneumatico anteriore
120/70-ZR17
Pneumatico posteriore
180/55-ZR17
Freni
Freno anteriore
Doppio disco
Freno posteriore
Doppio disco
Trasmissione
Cambio
6 marce
Tipo trasmissione
Shaft drive (cardan) (final drive)
Raffreddamento
Sistema di raffreddamento
Oil & air
