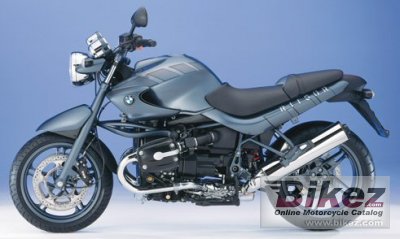

R 1150 R
Scrivi la tua esperienza su Bmw R 1150 R
La recensione verrà pubblicata come topic forum personale. Se hai già recensito questo modello, il topic esistente verrà aggiornato.
Accedi per pubblicare una recensione e farla diventare un topic modificabile nel forum del modello.
Accedi per recensireLet it seduce you! The R 1150 R stands for basic instinct. Feel the rush of air on your face and enjoy the unadulterated riding thrill of a powerful ´Naked Bike´. Power and technical innovations provide both enjoyment and safety. Regardless of whether you favour a lively sprint or a more leisurely, relaxed ride, the new BMW Roadster is the right companion. Insiders call the R 1150 R the ´Curve Wizard´ or the ´Sports Roadster´ - it have everything you need for pure enjoyment. Are you ready for that experience?
Informazioni generali
Categoria
Naked bike
Cilindrata
1130.0 cc (68.95 cubic inches)
Potenza
83.8 CV (61.2 kW)) @ 6750 giri/min
Rapporto di compressione
10.3:1
Alesaggio x corsa
101.0 x 70.5 mm (4.0 x 2.8 inches)
Valvole per cilindro
4
Sistema di alimentazione
Injection
Controllo alimentazione
Overhead Cams (OHC)
Escursione anteriore
120 mm (4.7 inches)
Escursione posteriore
135 mm (5.3 inches)
Diametro
320 mm (12.6 inches)
Diametro
276 mm (10.9 inches)
Peso a secco
219.0 kg (482.8 pounds)
Weight incl. oil, gas, etc
239.0 kg (526.9 pounds)
Rapporto potenza/peso
0.3827 CV/kg
Altezza sella
835 mm (32.9 inches) If adjustable, lowest setting.
Altezza sella alternativa
845 mm (33.3 inches) If adjustable, highest setting.
Altezza totale
1097 mm (43.2 inches)
Lunghezza totale
2170 mm (85.4 inches)
Larghezza totale
920 mm (36.2 inches)
Interasse
1486 mm (58.5 inches)
Capacita carburante
20.50 litres (5.42 US gallons)
Motore
Tipo motore
Two cylinder boxer, four-stroke
Coppia
98.0 Nm (10.0 kgf-m or 72.3 ft.lbs) @ 5250 giri/min
Sospensioni
Sospensione anteriore
BMW Motorrad Telelever; stanchion diameter 35 mm, central strut, rebound damping adjustable
Sospensione posteriore
Die-cast aluminium single-sided swinging arm with BMW Motorrad Paralever; central strut, spring pre-load adjustable to continuously variable levels by means of hydraulic handwheel, rebound damping adjustable
Telaio
Tipologia telaio
Three-section composite frame consisting of front and rear section, load bearing engine.
Ruote
Pneumatico anteriore
120/70-ZR17
Pneumatico posteriore
180/55-ZR17
Freni
Freno anteriore
Doppio disco
Freno posteriore
Disco singolo
Trasmissione
Cambio
6 marce
Tipo trasmissione
Shaft drive (cardan) (final drive)
Raffreddamento
Sistema di raffreddamento
Oil & air
