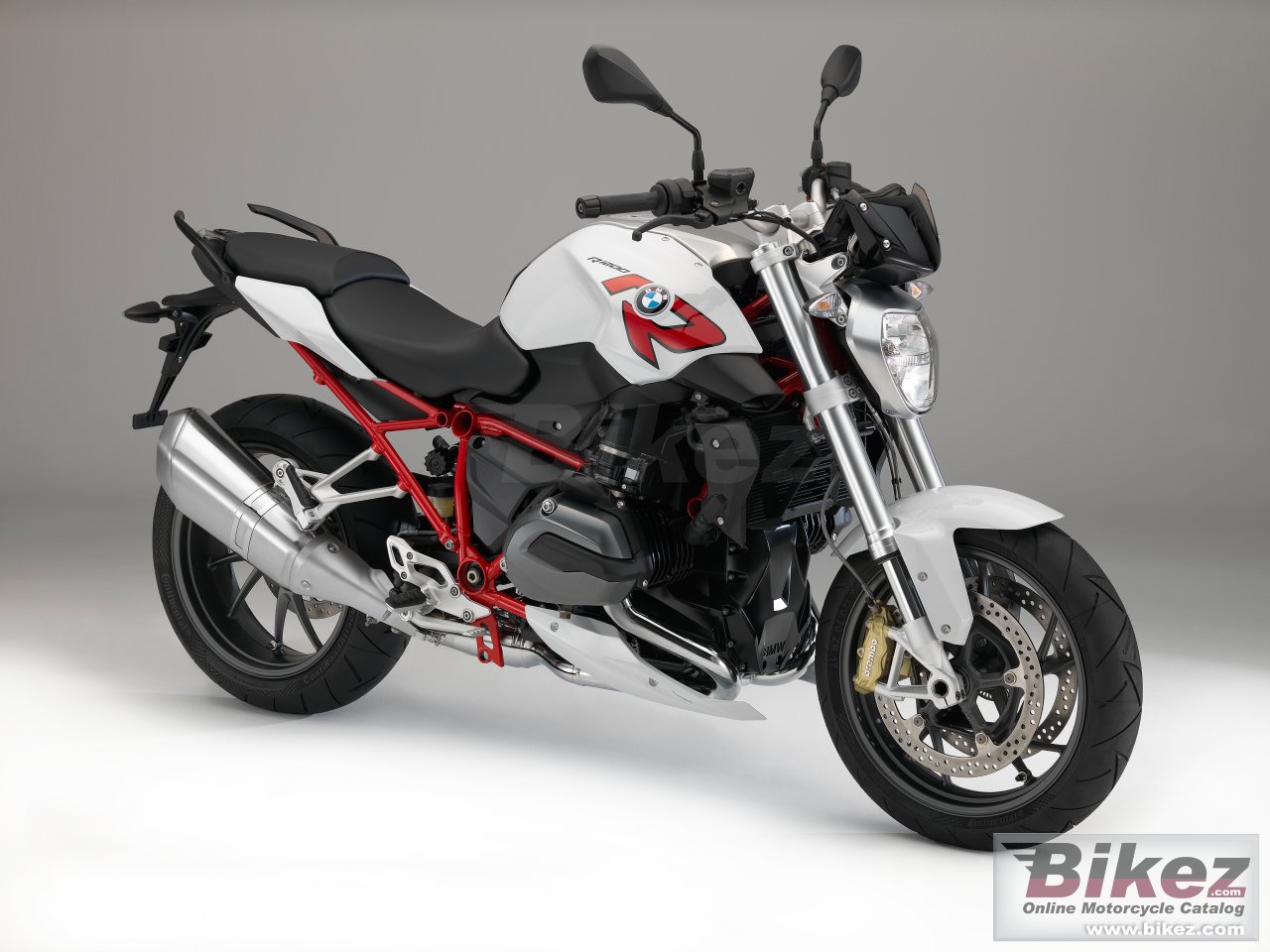

R 1200 R
Scrivi la tua esperienza su Bmw R 1200 R
La recensione verrà pubblicata come topic forum personale. Se hai già recensito questo modello, il topic esistente verrà aggiornato.
Accedi per pubblicare una recensione e farla diventare un topic modificabile nel forum del modello.
Accedi per recensireThe new R 1200 R marks the status quo in terms of aesthetic appeal, dynamic performance and design. When our developers put forward their visions in the BMW Concept Roadster, this bike was their greatest source of inspiration. And that´s no surprise - after all, the new R 1200 R is a powerful all-rounder that combines comfort, athletic flair and design in an entirely unique way.
Informazioni generali
Categoria
Allround
Cilindrata
1170.0 cc (71.39 cubic inches)
Rapporto di compressione
12.0:1
Alesaggio x corsa
101.0 x 73.0 mm (4.0 x 2.9 inches)
Valvole per cilindro
4
Sistema di alimentazione
Injection. Electronic intake pipe injection/BMS-K+ digital enfinemanagement with overrun fuel cut-off, twin spark ignition
Controllo alimentazione
Double Overhead Cams/Twin Cam (DOHC)
Sistema di lubrificazione
Coppa secca
Frizione
Single dry plate clutch, hydraulically operated
Consumo carburante
3.90 litres/100 km (25.6 km/l or 60.31 mpg)
Emissioni serra
90.5 CO2 g/km. (CO2 - emissione di anidride carbonica)
Dettagli emissioni
Closed-loop 3-way catalytic converter, emission standard EU-3
Inclinazione cannotto di sterzo
27.7°
Avancorsa
126 mm (4.9 inches)
Escursione anteriore
140 mm (5.5 inches)
Escursione posteriore
140 mm (5.5 inches)
Diametro
320 mm (12.6 inches)
Diametro
265 mm (10.4 inches)
Ruote
Cast aluminium
Weight incl. oil, gas, etc
231.0 kg (509.3 pounds)
Altezza sella
790 mm (31.1 inches) If adjustable, lowest setting.
Altezza totale
1300 mm (51.2 inches)
Lunghezza totale
2165 mm (85.2 inches)
Larghezza totale
906 mm (35.7 inches)
Interasse
1515 mm (59.6 inches)
Capacita carburante
18.00 litres (4.76 US gallons)
Capacita carburante di riserva
3.00 litres (0.79 US gallons)
Colori disponibili
Blue, grey, white
Avviamento
Elettrico
Impianto elettrico
12 V / 14 Ah, maintenance free battery.
Motore
Tipo motore
Two cylinder boxer, four-stroke
Potenza
125.0 CV (91.2 kW)) @ 7750 giri/min
Coppia
125.0 Nm (12.7 kgf-m or 92.2 ft.lbs) @ 6500 giri/min
Sospensioni
Sospensione anteriore
Telescopic Upside-Down fork; stanchion diameter 45 mm
Sospensione posteriore
Cast aluminium single-sided swing arm with BMW Motorrad Paralever; WAD strut (travel-related damping), spring pre-load hydraulically adjustable (continuously variable) at handwheel, rebound damping adjustable at handwheel
Telaio
Tipologia telaio
Two section frame consisting of front and rear sections, load bearing engine-gearbox unit
Ruote
Pneumatico anteriore
120/70-ZR17
Pneumatico posteriore
180/55-ZR17
Freni
Freno anteriore
Double disc. ABS. Floating discs. Four-piston calipers.
Freno posteriore
Single disc. ABS. Floating disc. Two-piston calipers.
Trasmissione
Cambio
6 marce
Tipo trasmissione
Shaft drive (cardan) (final drive)
Raffreddamento
Sistema di raffreddamento
Oil & air
