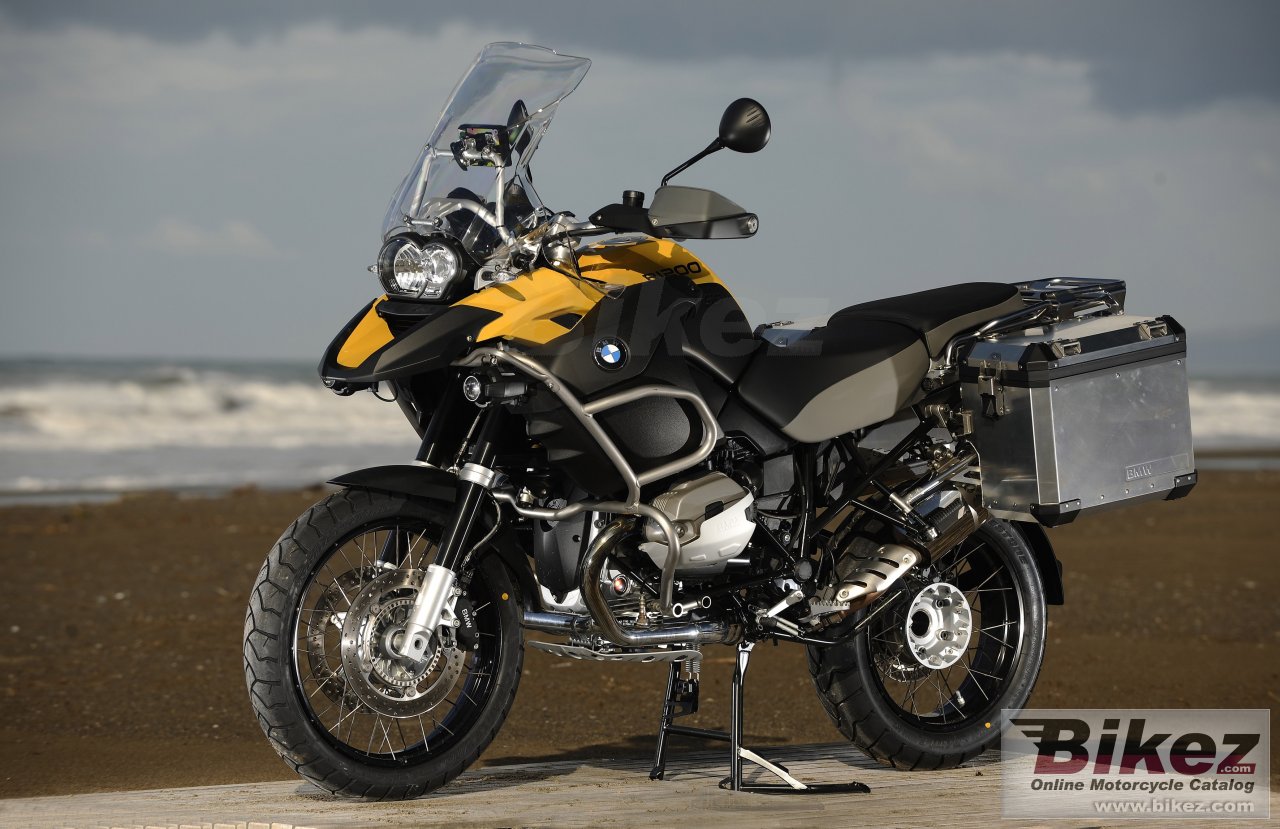

R 1200 Gs Adventure
Scrivi la tua esperienza su Bmw R 1200 Gs Adventure
La recensione verrà pubblicata come topic forum personale. Se hai già recensito questo modello, il topic esistente verrà aggiornato.
Accedi per pubblicare una recensione e farla diventare un topic modificabile nel forum del modello.
Accedi per recensireSome journeys you can tell are going to be tough just by looking at the map. But the reality is always going to be tougher. And that´s where the new BMW R 1200 GS Adventure comes into its own. However far you have to go, whatever the terrain, this is a Moto that will never let you down.
Informazioni generali
Tipologia
Enduro / fuoristrada
Cilindrata
1170.0 cc (71.39 cubic inches)
Tipo motore
Two cylinder boxer, two-stroke
Potenza
103.3 CV (75.4 kW)) @ 7500 giri/min
Rapporto di compressione
12.0:1
Alesaggio x corsa
101.0 x 73.0 mm (4.0 x 2.9 inches)
Valvole per cilindro
4
Sistema di alimentazione
Injection. Electronic intake pipe injection/BMS-K digital engine management with overrun fuel cut-off, twin spark ignition
Controllo alimentazione
Monoalbero a camme in testa (SOHC)
Frizione
Single dry plate clutch, hydraulically operated
Consumo carburante
4.60 litres/100 km (21.7 km/l or 51.13 mpg)
Emissioni serra
106.7 CO2 g/km. (CO2 - emissione di anidride carbonica)
Impianto di scarico
Closed-loop 3-way catalytic converter, emission standard EU-3
Inclinazione cannotto di sterzo
24.8°
Avancorsa
89 mm (3.5 inches)
Escursione anteriore
210 mm (8.3 inches)
Escursione posteriore
220 mm (8.7 inches)
Diametro
305 mm (12.0 inches)
Diametro
265 mm (10.4 inches)
Peso a secco
223.0 kg (491.6 pounds)
Weight incl. oil, gas, etc
256.0 kg (564.4 pounds)
Rapporto potenza/peso
0.4630 CV/kg
Altezza sella
910 mm (35.8 inches) If adjustable, lowest setting.
Lunghezza totale
2240 mm (88.2 inches)
Larghezza totale
990 mm (39.0 inches)
Interasse
1510 mm (59.4 inches)
Capacita carburante
33.00 litres (8.72 US gallons)
Capacita carburante di riserva
4.00 litres (1.06 US gallons)
Colori disponibili
Yellow, gray
Avviamento
Elettrico
Motore
Coppia
115.0 Nm (11.7 kgf-m or 84.8 ft.lbs) @ 5750 giri/min
Sospensioni
Sospensione anteriore
BMW Motorrad Telelever
Sospensione posteriore
Cast aluminium single-sided swing arm with BMW Motorrad Paralever
Telaio
Tipologia telaio
Two-section frame consisting of front and rear sections, load- bearing engine-gearbox unit
Ruote
Pneumatico anteriore
110/80-R19
Pneumatico posteriore
150/70-R17
Freni
Freno anteriore
Doppio disco
Freno posteriore
Disco singolo
Trasmissione
Cambio
6 marce
Tipo trasmissione
Shaft drive (cardan) (final drive)
Raffreddamento
Sistema di raffreddamento
Oil & air
