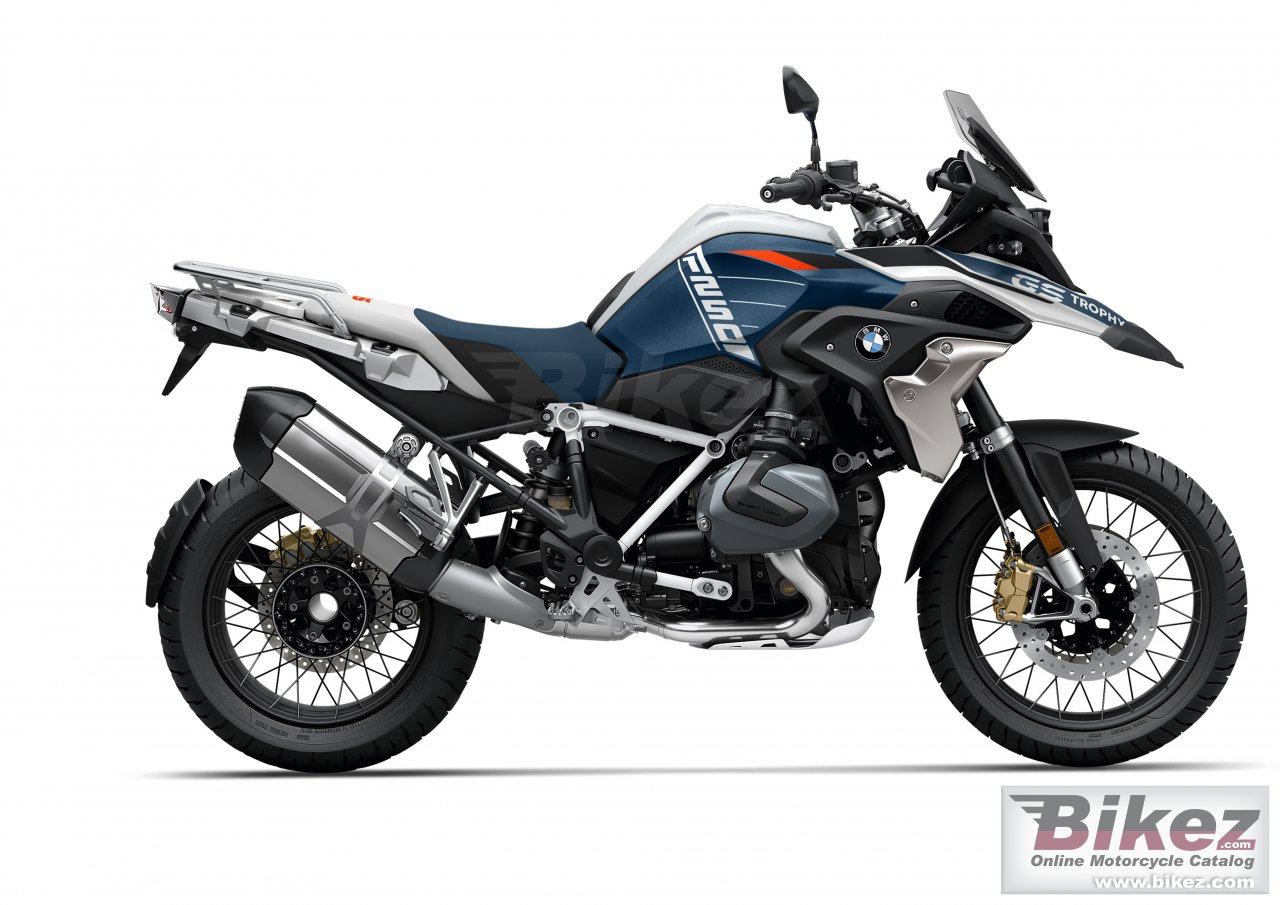

R 1250 Gs

Tipologia

Enduro / fuoristrada

Prezzo da nuova

US$ 17995. MSRP depends on country, taxes, accessories, etc.

Cilindrata

1254.0 cc (76.52 cubic inches)

Tipo motore

Two cylinder boxer, four-stroke

Dettagli motore

Balance shaft and variable engine timing system

Potenza

136.0 CV (99.3 kW)) @ 7750 giri/min

Velocita massima

199.6 km/h (124.0 mph)

Rapporto di compressione

12.5:1

Alesaggio x corsa

102.5 x 76.0 mm (4.0 x 3.0 inches)

Valvole per cilindro

4

Sistema di alimentazione

Injection. Electronic intake pipe injection

Controllo alimentazione

Double Overhead Cams/Twin Cam (DOHC)

Sistema di lubrificazione

Coppa secca

Frizione

Wet clutch with an anti-hopping function, hydraulic activation

Trasmissione finale

Constant mesh

Consumo carburante

4.75 litres/100 km (21.1 km/l or 49.52 mpg)

Emissioni serra

110.2 CO2 g/km. (CO2 - emissione di anidride carbonica)

Dettagli emissioni

Regulated three-way catalytic converter, compliant with Euro 5 emission standard

Inclinazione cannotto di sterzo

25.7°

Avancorsa

102 mm (4.0 inches)

Escursione anteriore

190 mm (7.5 inches)

Escursione posteriore

200 mm (7.9 inches)

Diametro

305 mm (12.0 inches)

Diametro

276 mm (10.9 inches)

Ruote

Cast aluminium

Weight incl. oil, gas, etc

249.0 kg (549.0 pounds)

Altezza sella

850 mm (33.5 inches) If adjustable, lowest setting.

Altezza sella alternativa

870 mm (34.3 inches) If adjustable, highest setting.

Altezza totale

1430 mm (56.3 inches)

Lunghezza totale

2207 mm (86.9 inches)

Larghezza totale

953 mm (37.5 inches)

Interasse

1514 mm (59.6 inches)

Capacita carburante

19.68 litres (5.20 US gallons)

Capacita carburante di riserva

4.00 litres (1.06 US gallons)

Capacita olio

4.00 litres (4.23 US quarts)

Colori disponibili

Black Storm Metallic/Black/Agate Gray, Gravity Blue Metallic, Light White/Racing Blue Metallic/Racing Red, Light White

Avviamento

Elettrico

Strumentazione

TFT color display with connectivity

Impianto elettrico

Three-phase alternator with 510 Watt nominal power. 12 V / 11.8 Ah, maintenance-free battery.

Fari

LED headlight

Garanzia di fabbrica

Up to 3-years or 36,000 miles

Olio motore

SAE 5W-40

Liquido freni

DOT 4

Liquido refrigerante

2.00 litres (0.53 US gallons)

Idle speed

1050 +/- 100 giri/min

Pressione pneumatico anteriore

36 PSI (2.5 Bar or 250 kPa)

Pressione pneumatico posteriore

42 PSI (2.9 Bar or 290 kPa)

Fork tube size

37 mm (1.5 inches)

Coppia

143.0 Nm (14.6 kgf-m or 105.5 ft.lbs) @ 6500 giri/min

Sospensione anteriore

BMW Motorrad Telelever; stanchion diameter 37 mm, central spring strut

Sospensione posteriore

Cast aluminium single-sided swing arm with BMW Motorrad Paralever; WAD strut (travel-related damping), spring pre-load hydraulically adjustable (continuously variable) at handwheel, rebound damping adjustable at handwheel.

Tipologia telaio

Two-section frame, front- and bolted on rear frame, load-bearing engine

Pneumatico anteriore

120/70-R19

Pneumatico posteriore

170/60-R17

Freno anteriore

Double disc. ABS. Floating discs. Four-piston calipers.

Freno posteriore

Single disc. ABS. Floating disc. Two-piston calipers.

Cambio

6 marce

Tipo trasmissione

Shaft drive (cardan) (final drive)

Sistema di raffreddamento

Liquido
