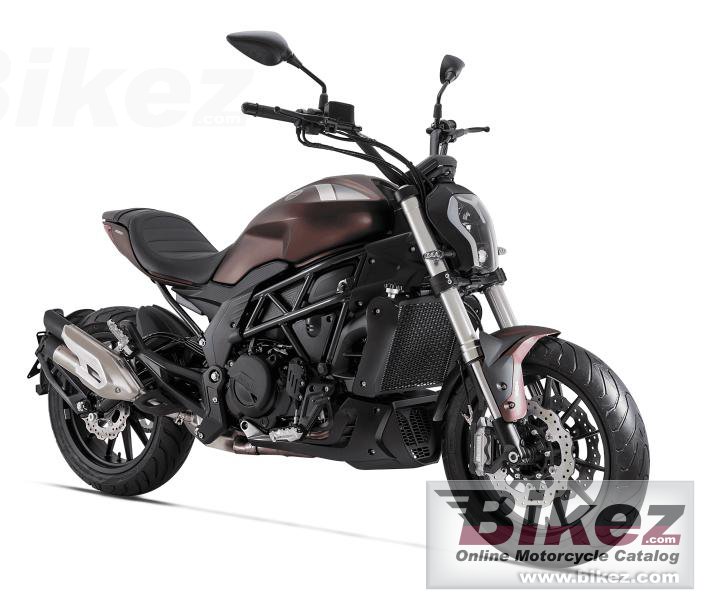

Accedi per recensireA revolution at Benelli, as it inaugurates its new cruiser line, offering a naked with a strong personality and contemporary design thanks to footpegs shifted forward, as required by custom tradition, comfortable and spacious seat with a height of 750 mm from the ground and a LED headlight assembly featuring an authentic and original design.
Informazioni generali
Categoria
Allround
Cilindrata
500.0 cc (30.51 cubic inches)
Potenza
47.6 CV (34.7 kW)) @ 8500 giri/min
Velocita massima
160.0 km/h (99.4 mph)
Rapporto di compressione
11.5:1
Alesaggio x corsa
69.0 x 66.8 mm (2.7 x 2.6 inches)
Valvole per cilindro
4
Sistema di alimentazione
Injection. Electronic fuel injection with double throttle body ø 37 mm
Controllo alimentazione
Double Overhead Cams/Twin Cam (DOHC)
Accensione
T.C.I
Sistema di lubrificazione
Forced lubrication with wet sump
Frizione
Wet multidisc
Dettagli emissioni
Euro 4. Catalytic converter and oxygen sensors.
Escursione anteriore
135 mm (5.3 inches)
Escursione posteriore
50 mm (2.0 inches)
Diametro
280 mm (11.0 inches)
Diametro
240 mm (9.4 inches)
Ruote
Aluminum alloy (optional aluminium rim spoked )
Peso a secco
220.0 kg (485.0 pounds)
Rapporto potenza/peso
0.2164 CV/kg
Altezza sella
760 mm (29.9 inches) If adjustable, lowest setting.
Altezza sella alternativa
825 mm (32.5 inches) If adjustable, highest setting.
Altezza totale
1150 mm (45.3 inches)
Lunghezza totale
2240 mm (88.2 inches)
Larghezza totale
950 mm (37.4 inches)
Altezza da terra
210 mm (8.3 inches)
Interasse
1580 mm (62.2 inches)
Capacita carburante
21.50 litres (5.68 US gallons)
Colori disponibili
Black, Red, Gray,Blue, Brown
Avviamento
Elettrico
Strumentazione
All-digital display
Motore
Tipo motore
Twin, four-stroke
Coppia
46.0 Nm (4.7 kgf-m or 33.9 ft.lbs) @ 5000 giri/min
Sospensioni
Sospensione anteriore
Upside-down forks Ø 41mm
Sospensione posteriore
Rear swing arm with central shock absorber spring preload adjustable
Telaio
Tipologia telaio
Steel trellis
Ruote
Pneumatico anteriore
120/70-ZR17
Pneumatico posteriore
160/60-ZR17
Freni
Freno anteriore
Double disc. 4-piston, ABS
Freno posteriore
Single disc. Single piston calliper, ABS
Trasmissione
Cambio
6 marce
Tipo trasmissione
Catena (trasmissione finale)
Raffreddamento
Sistema di raffreddamento
Liquido
