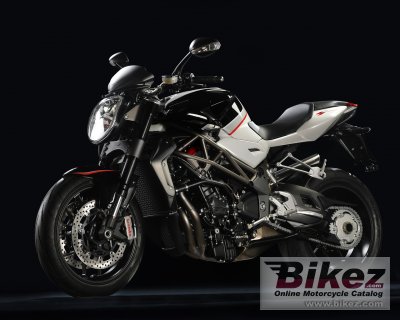

Agusta Brutale 1090 Rr
Scrivi la tua esperienza su MV Augusta Agusta Brutale 1090 Rr
La recensione verrà pubblicata come topic forum personale. Se hai già recensito questo modello, il topic esistente verrà aggiornato.
Accedi per pubblicare una recensione e farla diventare un topic modificabile nel forum del modello.
Accedi per recensireThe cage of pipes in chromium molybdenum steel, which constitutes the frame, retains the TIG welded trellis structure, but with a taller, lighter, and more rigid design. Taking a cue from the aeronautical industry, MV opted to use the more precise and more costly TIG welding process to make the frame stronger and more attractive.
Informazioni generali
Tipologia
Naked bike
Cilindrata
1078.0 cc (65.78 cubic inches)
Tipo motore
In-line four, four-stroke
Potenza
144.2 CV (105.3 kW)) @ 10600 giri/min
Alesaggio x corsa
79.0 x 55.0 mm (3.1 x 2.2 inches)
Valvole per cilindro
4
Sistema di alimentazione
Injection
Controllo alimentazione
Double Overhead Cams/Twin Cam (DOHC)
Accensione
Magneti Marelli 5SM ignition - injection integrated system with Mikuni throttle body; induction discharge electronic ignition; sequential timed "Multipoint" electronic injection
Sistema di lubrificazione
Double rotor pump
Frizione
Slipper clutch
Avancorsa
104 mm (4.1 inches)
Escursione anteriore
130 mm (5.1 inches)
Escursione posteriore
120 mm (4.7 inches)
Diametro
320 mm (12.6 inches)
Diametro
210 mm (8.3 inches)
Peso a secco
191.0 kg (421.1 pounds)
Weight incl. oil, gas, etc
221.0 kg (487.2 pounds)
Rapporto potenza/peso
0.7550 CV/kg
Altezza sella
830 mm (32.7 inches) If adjustable, lowest setting.
Lunghezza totale
2093 mm (82.4 inches)
Larghezza totale
760 mm (29.9 inches)
Altezza da terra
150 mm (5.9 inches)
Interasse
1438 mm (56.6 inches)
Capacita carburante
23.00 litres (6.08 US gallons)
Capacita carburante di riserva
4.00 litres (1.06 US gallons)
Colori disponibili
Red/black/white
Avviamento
Elettrico
Impianto elettrico
12V 8.6Ah battery.
Motore
Coppia
115.0 Nm (11.7 kgf-m or 84.8 ft.lbs) @ 8000 giri/min
Sospensioni
Sospensione anteriore
Upside-down telescopic hydraulic fork with rebound-compression damping and spring preload adjustment
Sospensione posteriore
Progressive, single shock absorber with rebound and compression (High speed / Low speed) damping and spring preload adjustment
Telaio
Tipologia telaio
CrMo Steel tubular trellis (TIG welded). Termoplastics.
Ruote
Pneumatico anteriore
120/70-ZR17
Pneumatico posteriore
190/55-ZR17
Freni
Freno anteriore
Double disc. Bremo, 4-piston caliper
Freno posteriore
Single disc. Bremo, 4-piston caliper
Trasmissione
Cambio
6 marce
Raffreddamento
Sistema di raffreddamento
Oil & air
