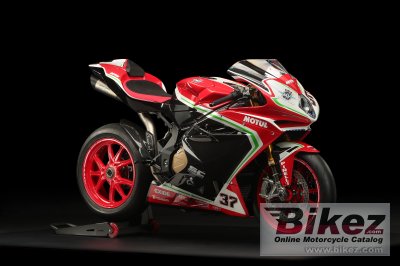

Agusta F4 Rc
Scrivi la tua esperienza su MV Augusta Agusta F4 Rc
La recensione verrà pubblicata come topic forum personale. Se hai già recensito questo modello, il topic esistente verrà aggiornato.
Accedi per pubblicare una recensione e farla diventare un topic modificabile nel forum del modello.
Accedi per recensireOne of the rarest and most collectible Moto in history. MV Agusta's Reparto Corse range is designed for a unique clientele: enthusiasts that are passionate about performance, and fanatics of design.
Informazioni generali
Categoria
Sportiva
Cilindrata
998.0 cc (60.90 cubic inches)
Rapporto di compressione
13.4:1
Alesaggio x corsa
79.0 x 50.9 mm (3.1 x 2.0 inches)
Valvole per cilindro
4
Sistema di alimentazione
Injection
Controllo alimentazione
Double Overhead Cams/Twin Cam (DOHC)
Accensione
Integrated ignition - injection system MVICS (Motor and Vehicle Integrated Control System) with eight injectors Engine control unit Eldor EM2.0, throttle body full drive by wire Mikuni, pencil-coil with ion-sensing technology, control of detonation and
Frizione
Wet, multi-disc with back torque limiting device
Trasmissione finale
6 marce constant mesh
Dettagli emissioni
Euro 3
Avancorsa
100 mm (4.0 inches)
Escursione anteriore
120 mm (4.7 inches)
Escursione posteriore
120 mm (4.7 inches)
Diametro
320 mm (12.6 inches)
Diametro
220 mm (8.7 inches)
Ruote
Black, 10-spoke
Peso a secco
175.0 kg (385.8 pounds)
Rapporto potenza/peso
1.2107 CV/kg
Altezza sella
830 mm (32.7 inches) If adjustable, lowest setting.
Lunghezza totale
2115 mm (83.3 inches)
Larghezza totale
750 mm (29.5 inches)
Altezza da terra
115 mm (4.5 inches)
Interasse
1430 mm (56.3 inches)
Capacita carburante
17.00 litres (4.49 US gallons)
Colori disponibili
Red/Pearl RC/White/Green
Avviamento
Elettrico
Impianto elettrico
12 V - 8.6 Ah battery
Motore
Tipo motore
In-line four, four-stroke
Potenza
211.9 CV (154.7 kW)) @ 13600 giri/min
Coppia
115.0 Nm (11.7 kgf-m or 84.8 ft.lbs) @ 9300 giri/min
Sospensioni
Sospensione anteriore
And #1254;hlins USD front fork, NIX 30 type
Sospensione posteriore
And #1254;hlins progressive with piggyback reservoir
Telaio
Tipologia telaio
CrMo Steel Tubular Trellis
Ruote
Pneumatico anteriore
120/70-ZR17
Pneumatico posteriore
200/55-ZR17
Freni
Freno anteriore
Double disc. ABS. Brembo radial-type, single-piece with 4 pistons
Freno posteriore
Single disc. ABS
Trasmissione
Cambio
6 marce
Tipo trasmissione
Catena (trasmissione finale)
Raffreddamento
Sistema di raffreddamento
Liquido
