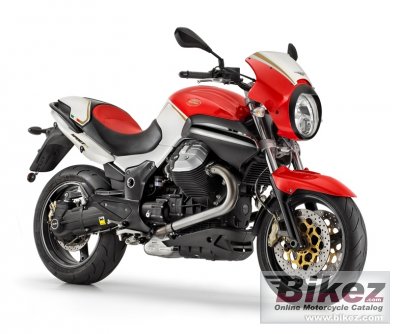

Guzzi 1200 Sport Rosso Corsa
Scrivi la tua esperienza su Moto Guzzi Guzzi 1200 Sport Rosso Corsa
La recensione verrà pubblicata come topic forum personale. Se hai già recensito questo modello, il topic esistente verrà aggiornato.
Accedi per pubblicare una recensione e farla diventare un topic modificabile nel forum del modello.
Accedi per recensireThe saddle is well padded and offers great support, weight distribution and a low centre of gravity. In classic black or elegant titanium grey, the 1200 Sport 4V celebrates the Moto Guzzi Italian heritage with its subtle green, white and red stripe detail.
Informazioni generali
Tipologia
Enduro / fuoristrada
Prezzo da nuova
Euro 10434. MSRP depends on country, taxes, accessories, etc.
Cilindrata
1151.0 cc (70.23 cubic inches)
Tipo motore
V2, four-stroke
Potenza
105.0 CV (76.6 kW)) @ 7000 giri/min
Rapporto di compressione
11.0:1
Alesaggio x corsa
95.0 x 81.2 mm (3.7 x 3.2 inches)
Sistema di alimentazione
Injection
Controllo alimentazione
Valvole in testa (OHV)
Accensione
Multipoint sequential electronic ignition, Magneti Marelli
Frizione
Single-disc with integrated anti-vibration buffer
Trasmissione finale
Compact reactive cardan shaft drive system called CA.R.C.; double joint and floating bevel gear pair, ratio 12/44 = 1 : 3.666
Dettagli emissioni
3-way catalysed with Lambda probe.
Impianto di scarico
Stainless steel, 2 into 1 type with catalytic converter, height adjustable muffler
Inclinazione cannotto di sterzo
27.0°
Avancorsa
125 mm (4.9 inches)
Diametro
320 mm (12.6 inches)
Diametro
282 mm (11.1 inches)
Weight incl. oil, gas, etc
240.0 kg (529.1 pounds)
Altezza totale
1160 mm (45.7 inches)
Lunghezza totale
2195 mm (86.4 inches)
Larghezza totale
840 mm (33.1 inches)
Interasse
1535 mm (60.4 inches)
Capacita carburante
32.00 litres (8.45 US gallons)
Capacita carburante di riserva
7.00 litres (1.85 US gallons)
Colori disponibili
Red/white/green
Avviamento
Elettrico
Motore
Coppia
105.0 Nm (10.7 kgf-m or 77.4 ft.lbs) @ 6750 giri/min
Sospensioni
Sospensione anteriore
Fork with Ø 50mm inverted stems, fully adjustable (spring preload and hydraulic compression and rebound damping)
Sospensione posteriore
Progressive single swingarm, fully adjustable monoshock with separate gas reservoir (spring preload and hydraulic for rebound and compression).
Telaio
Tipologia telaio
Tubular in high-strength steel with integrated engine
Ruote
Pneumatico anteriore
110/80-17
Pneumatico posteriore
180/55-17
Freni
Freno anteriore
Double disc. Stainless steel wave discs, radial calipers with 4 opposed pistons.
Freno posteriore
Single disc. Single fixed stainless steel disc, floating caliper with 2 parallel pistons.
Trasmissione
Cambio
6 marce
Tipo trasmissione
Shaft drive (cardan) (final drive)
Raffreddamento
Sistema di raffreddamento
Aria
