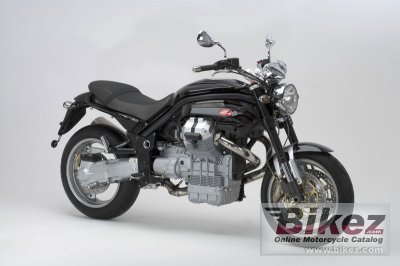

Guzzi Griso 850
Scrivi la tua esperienza su Moto Guzzi Guzzi Griso 850
La recensione verrà pubblicata come topic forum personale. Se hai già recensito questo modello, il topic esistente verrà aggiornato.
Accedi per pubblicare una recensione e farla diventare un topic modificabile nel forum del modello.
Accedi per recensireThis machine would be fitted with an 850 engine that enthusiasts know well. Obviously the only thing that belongs to the past is the size of the engine. All you have to do is twist the throttle to realise that under the aggressive appearance a new heart beats.
Informazioni generali
Categoria
Naked bike
Cilindrata
877.0 cc (53.51 cubic inches)
Rapporto di compressione
9.8:1
Alesaggio x corsa
92.0 x 66.0 mm (3.6 x 2.6 inches)
Valvole per cilindro
2
Sistema di alimentazione
Injection. Magneti Marelli IAW alfa-n system Multipoint phased sequential fuel; 2 throttle bodies of 40 mm with injectors Weber IW 031, Lambda sensor
Controllo alimentazione
Valvole in testa (OHV)
Sistema di lubrificazione
Splash
Frizione
Dual disc dry
Impianto di scarico
Stainless steel, 2 in 1, with three ways catalyser and Lambda probe oxygen sensor
Inclinazione cannotto di sterzo
26.3°
Avancorsa
108 mm (4.3 inches)
Escursione anteriore
120 mm (4.7 inches)
Escursione posteriore
110 mm (4.3 inches)
Diametro
320 mm (12.6 inches)
Diametro
282 mm (11.1 inches)
Peso a secco
227.0 kg (500.4 pounds)
Rapporto potenza/peso
0.3308 CV/kg
Altezza sella
800 mm (31.5 inches) If adjustable, lowest setting.
Altezza totale
1070 mm (42.1 inches)
Lunghezza totale
2260 mm (89.0 inches)
Altezza da terra
185 mm (7.3 inches)
Interasse
1554 mm (61.2 inches)
Capacita carburante
17.20 litres (4.54 US gallons)
Capacita carburante di riserva
3.30 litres (0.87 US gallons)
Colori disponibili
Red, black, yellow
Avviamento
Elettrico
Motore
Tipo motore
V2, four-stroke
Potenza
75.1 CV (54.8 kW)) @ 7600 giri/min
Coppia
70.0 Nm (7.1 kgf-m or 51.6 ft.lbs) @ 7000 giri/min
Sospensioni
Sospensione anteriore
43 mm upside down fork, fully adjustable in spring preload and compression and rebound damping
Sospensione posteriore
Single sided swingarm with rising rate linkages, monoshock with separate gas reservoir, fully adjustable in spring preload and compression and rebound damping
Telaio
Tipologia telaio
Double cradle, in high tensile strenght tubular steel
Ruote
Pneumatico anteriore
120/70-ZR17
Pneumatico posteriore
180/55-ZR17
Freni
Freno anteriore
Doppio disco
Freno posteriore
Disco singolo
Trasmissione
Cambio
6 marce
Tipo trasmissione
Shaft drive (cardan) (final drive)
Raffreddamento
Sistema di raffreddamento
Aria
