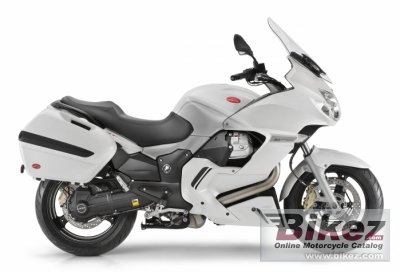

Guzzi Norge Gt 8V
Scrivi la tua esperienza su Moto Guzzi Guzzi Norge Gt 8V
La recensione verrà pubblicata come topic forum personale. Se hai già recensito questo modello, il topic esistente verrà aggiornato.
Accedi per pubblicare una recensione e farla diventare un topic modificabile nel forum del modello.
Accedi per recensireFitted with the latest version of the 8V Twin-cylinder engine and a substantial level of new components. The Norge GT 8V has been developed for enhanced comfort, performance and handling.
Informazioni generali
Tipologia
Sport touring
Prezzo da nuova
US$ 16250. MSRP depends on country, taxes, accessories, etc.
Cilindrata
1151.0 cc (70.23 cubic inches)
Tipo motore
V2, four-stroke
Dettagli motore
90° V-Twin
Potenza
102.0 CV (74.5 kW)) @ 7000 giri/min
Rapporto di compressione
9.8:1
Alesaggio x corsa
95.0 x 81.2 mm (3.7 x 3.2 inches)
Valvole per cilindro
4
Sistema di alimentazione
Injection. Magneti Marelli IAW5A, and #945;-n type; 2 Ø 45 mm throttle bodies, Weber IWP 162 injectors, Lambda control, twin spark ignition
Controllo alimentazione
Valvole in testa (OHV)
Frizione
Dry plate
Trasmissione finale
CARC compact reactive cardan shaft drive system; double cardan joint and floating bevel gear set, drive ratio 12/44 = 1 : 3.666
Dettagli emissioni
Euro 3
Impianto di scarico
Stainless steel with central equalizer and with 3-way catalytic converter with two Lambda probes
Escursione anteriore
120 mm (4.7 inches)
Escursione posteriore
140 mm (5.5 inches)
Diametro
320 mm (12.6 inches)
Diametro
282 mm (11.1 inches)
Ruote
Three spokes, light alloy wheels, gravity casting
Sella
Stepped
Peso a secco
257.0 kg (566.6 pounds)
Rapporto potenza/peso
0.3969 CV/kg
Altezza sella
810 mm (31.9 inches) If adjustable, lowest setting.
Altezza totale
1125 mm (44.3 inches)
Lunghezza totale
2195 mm (86.4 inches)
Larghezza totale
870 mm (34.3 inches)
Altezza da terra
185 mm (7.3 inches)
Interasse
1495 mm (58.9 inches)
Capacita carburante
23.00 litres (6.08 US gallons)
Capacita carburante di riserva
3.79 litres (1.00 US gallons)
Colori disponibili
Bianco
Avviamento
Elettrico
Capacita di carico
Hard saddle bags
Motore
Coppia
104.0 Nm (10.6 kgf-m or 76.7 ft.lbs) @ 5500 giri/min
Sospensioni
Sospensione anteriore
Telescopic hydraulic fork with 45 mm stanchions and adjustable spring preload
Sospensione posteriore
Single arm suspension with progressive linkage, rear shock absorber adjustable in rebound and pre-load (hydraulic)
Telaio
Tipologia telaio
Tubular cradle, high tensile steel
Ruote
Pneumatico anteriore
120/70-ZR17
Pneumatico posteriore
180/55-ZR17
Freni
Freno anteriore
Double disc. ABS. Stainless steel floating discs and callipers with 4 horizontally opposed pistons - ABS
Freno posteriore
Single disc. ABS. Stainless steel fixed disc, floating calliper with 2 parallel pistons - ABS
Trasmissione
Cambio
6 marce
Tipo trasmissione
Shaft drive (cardan) (final drive)
Raffreddamento
Sistema di raffreddamento
Aria
