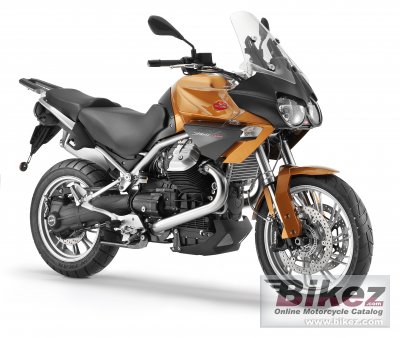

Guzzi Stelvio 8V
Scrivi la tua esperienza su Moto Guzzi Guzzi Stelvio 8V
La recensione verrà pubblicata come topic forum personale. Se hai già recensito questo modello, il topic esistente verrà aggiornato.
Accedi per pubblicare una recensione e farla diventare un topic modificabile nel forum del modello.
Accedi per recensireThe new MXU 500i DX upgrade passenger seat to come with an additional deluxe seat parts, a moveable seat pad with comfortable back seat to upscale the satisfy of riding with two people. Also, the luxurious painting and 14 inch of rim enhance the delicate quality.
Informazioni generali
Categoria
Enduro / fuoristrada
Prezzo da nuova
Euro 13150. MSRP depends on country, taxes, accessories, etc.
Cilindrata
1151.0 cc (70.23 cubic inches)
Dettagli motore
90° V-twin.
Potenza
103.3 CV (75.4 kW)) @ 7500 giri/min
Rapporto di compressione
11.0:1
Alesaggio x corsa
95.0 x 81.2 mm (3.7 x 3.2 inches)
Valvole per cilindro
4
Sistema di alimentazione
Injection
Controllo alimentazione
Valvole in testa (OHV)
Accensione
Multipoint sequential electronic ignition, Magneti Marelli
Frizione
Single-disc with integrated anti-vibration buffer
Trasmissione finale
Compact reactive cardan shaft drive system called CA.R.C.; double joint and floating bevel gear pair, ratio 12/44 = 1 : 3.666
Dettagli emissioni
3-way catalysed with Lambda probe. Euro 3.
Impianto di scarico
Stainless steel two-into-one
Inclinazione cannotto di sterzo
27.0°
Avancorsa
125 mm (4.9 inches)
Escursione anteriore
170 mm (6.7 inches)
Escursione posteriore
155 mm (6.1 inches)
Diametro
320 mm (12.6 inches)
Diametro
282 mm (11.1 inches)
Ruote
Tubeless with spokes
Weight incl. oil, gas, etc
257.0 kg (566.6 pounds)
Altezza sella
820 mm (32.3 inches) If adjustable, lowest setting.
Altezza sella alternativa
840 mm (33.1 inches) If adjustable, highest setting.
Altezza totale
1475 mm (58.1 inches)
Lunghezza totale
2250 mm (88.6 inches)
Altezza da terra
210 mm (8.3 inches)
Interasse
1535 mm (60.4 inches)
Capacita carburante
32.00 litres (8.45 US gallons)
Capacita carburante di riserva
7.00 litres (1.85 US gallons)
Colori disponibili
Black, bronze, white
Avviamento
Elettrico
Impianto elettrico
12 V 18 Ah battery
Motore
Tipo motore
V2, four-stroke
Coppia
113.0 Nm (11.5 kgf-m or 83.3 ft.lbs) @ 5800 giri/min
Sospensioni
Sospensione anteriore
Fork with Ø 50mm inverted stems, fully adjustable (spring preload and hydraulic compression and rebound damping)
Sospensione posteriore
Progressive single swingarm, fully adjustable monoshock with separate gas reservoir (spring preload and hydraulic for rebound and compression).
Telaio
Tipologia telaio
Tubular in high-strength steel with integrated engine
Ruote
Pneumatico anteriore
110/80-R19
Pneumatico posteriore
180/55-R17
Freni
Freno anteriore
Double disc. Stainless steel wave discs, radial calipers with 4 opposed pistons.
Freno posteriore
Single disc. Single fixed stainless steel disc, floating caliper with 2 parallel pistons.
Trasmissione
Cambio
6 marce
Tipo trasmissione
Shaft drive (cardan) (final drive)
Raffreddamento
Sistema di raffreddamento
Oil & air
