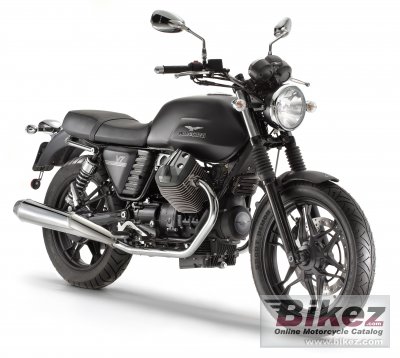

Guzzi V7 Stone
Scrivi la tua esperienza su Moto Guzzi Guzzi V7 Stone
La recensione verrà pubblicata come topic forum personale. Se hai già recensito questo modello, il topic esistente verrà aggiornato.
Accedi per pubblicare una recensione e farla diventare un topic modificabile nel forum del modello.
Accedi per recensireThis new model in the historic V7 range is trendy, agile, easy to customize with an array of accessories and features including the new 750cc, 90° V-twin engine that is more powerful and stays true to the characteristics of the Moto Guzzi tradition, that touring on a Moto at its most pure should be nothing but enjoyable.
Informazioni generali
Tipologia
Classic
Cilindrata
744.0 cc (45.40 cubic inches)
Tipo motore
V2, four-stroke
Dettagli motore
90° V-twin
Potenza
49.6 CV (36.2 kW)) @ 6200 giri/min
Sistema di alimentazione
Injection. Weber-Marelli electronic fuel injection.
Sistema di lubrificazione
Forced circulation with lobe pump - circuit capacity: 1.78 Kg
Frizione
Dry single plate with flexible couplings
Trasmissione finale
CA.R.C. Compact Reactive Shaft Drive
Avancorsa
109 mm (4.3 inches)
Escursione anteriore
130 mm (5.1 inches)
Escursione posteriore
118 mm (4.6 inches)
Diametro
320 mm (12.6 inches)
Diametro
260 mm (10.2 inches)
Peso a secco
198.0 kg (436.5 pounds)
Rapporto potenza/peso
0.2506 CV/kg
Altezza sella
780 mm (30.7 inches) If adjustable, lowest setting.
Altezza sella alternativa
803 mm (31.6 inches) If adjustable, highest setting.
Altezza totale
1113 mm (43.8 inches)
Lunghezza totale
2184 mm (86.0 inches)
Larghezza totale
800 mm (31.5 inches)
Interasse
1449 mm (57.0 inches)
Capacita carburante
21.95 litres (5.80 US gallons)
Capacita carburante di riserva
3.79 litres (1.00 US gallons)
Capacita olio
2.00 litres (2.11 US quarts)
Colori disponibili
Black, white
Avviamento
Elettrico
Garanzia di fabbrica
Two-year manufacturer's warranty and roadside assistance for one year
Olio motore
SAE 10W-60 Synthetic
Liquido freni
DOT 4
Battery
YTX14-BS
Candele
NGK CPR8EB-9
Idle speed
1350 +/-100 giri/min
Pressione pneumatico anteriore
36 PSI (2.5 Bar or 250 kPa)
Pressione pneumatico posteriore
36 PSI (2.5 Bar or 250 kPa)
Fork tube size
40 mm (1.6 inches)
Motore
Coppia
57.9 Nm (5.9 kgf-m or 42.7 ft.lbs) @ 5000 giri/min
Sospensioni
Sospensione anteriore
Telescopic hydraulic fork with 40 mm stanchions
Sospensione posteriore
Die cast light alloy swing arm with 2 spring preload adjustable shock absorbers
Telaio
Tipologia telaio
Double cradle tubular frame in ALS steel with detachable rear subframe
Ruote
Pneumatico anteriore
100/90-18
Pneumatico posteriore
130/80-17
Freni
Freno anteriore
Single disc. Brembo caliper with 4 differentiated pistons
Freno posteriore
Single disc. Floating disc. Two-piston calipers.
Trasmissione
Cambio
5 marce
Tipo trasmissione
Shaft drive (cardan) (final drive)
Raffreddamento
Sistema di raffreddamento
Aria
