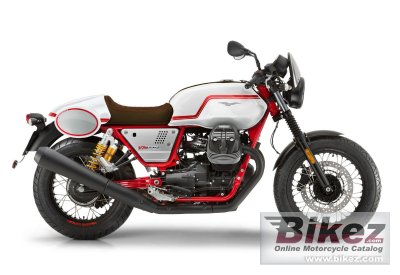

Guzzi V7 Racer
Scrivi la tua esperienza su Moto Guzzi Guzzi V7 Racer
La recensione verrà pubblicata come topic forum personale. Se hai già recensito questo modello, il topic esistente verrà aggiornato.
Accedi per pubblicare una recensione e farla diventare un topic modificabile nel forum del modello.
Accedi per recensireThe V7 III Racer´s sporty nature is emphasized by its semi-handlebars and its splendid, humped seat. In accordance with tradition, the Racer has a single-seater sport bike look, but in reality, this new version is approved for two-up riding. In fact, it has passenger foot pegs and, as before, the seat cover can be easily removed when necessary.
Informazioni generali
Categoria
Classic
Cilindrata
744.0 cc (45.40 cubic inches)
Dettagli motore
90° V-twin
Alesaggio x corsa
80.0 x 74.0 mm (3.1 x 2.9 inches)
Sistema di alimentazione
Injection. Weber-Marelli
Sistema di lubrificazione
Forced circulation with lobe pump - circuit capacity: 1.78 Kg
Frizione
Dry single plate with flexible couplings
Trasmissione finale
CA.R.C. Compact Reactive Shaft Drive
Impianto di scarico
Three-way catalytic converter with double lambda probe
Diametro
320 mm (12.6 inches)
Diametro
260 mm (10.2 inches)
Ruote
Aluminium spoked black anodised rims
Weight incl. oil, gas, etc
213.0 kg (469.6 pounds)
Altezza sella
770 mm (30.3 inches) If adjustable, lowest setting.
Altezza sella alternativa
803 mm (31.6 inches) If adjustable, highest setting.
Altezza totale
1113 mm (43.8 inches)
Lunghezza totale
2184 mm (86.0 inches)
Larghezza totale
800 mm (31.5 inches)
Capacita carburante
20.82 litres (5.50 US gallons)
Capacita carburante di riserva
3.79 litres (1.00 US gallons)
Colori disponibili
Racer
Avviamento
Elettrico
Garanzia di fabbrica
Two-year manufacturer's warranty and roadside assistance for one year
Motore
Tipo motore
V2, four-stroke
Potenza
52.0 CV (38.0 kW)) @ 6200 giri/min
Coppia
60.0 Nm (6.1 kgf-m or 44.3 ft.lbs) @ 4900 giri/min
Sospensioni
Sospensione anteriore
Telescopic hydraulic fork with 40 mm stanchions
Sospensione posteriore
Die cast light alloy swing arm with 2 spring preload adjustable shock absorbers
Telaio
Tipologia telaio
Double cradle tubular frame in ALS steel with detachable rear subframe
Ruote
Pneumatico anteriore
100/90-18
Pneumatico posteriore
130/80-17
Freni
Freno anteriore
Single disc. Brembo caliper with 4 differentiated pistons
Freno posteriore
Single disc. Floating disc. Two-piston calipers.
Trasmissione
Cambio
5 marce
Tipo trasmissione
Shaft drive (cardan) (final drive)
