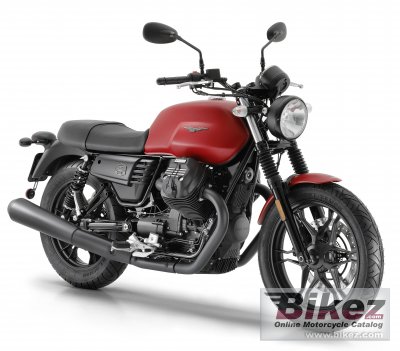

Guzzi V7 Iii Stone
Scrivi la tua esperienza su Moto Guzzi Guzzi V7 Iii Stone
La recensione verrà pubblicata come topic forum personale. Se hai già recensito questo modello, il topic esistente verrà aggiornato.
Accedi per pubblicare una recensione e farla diventare un topic modificabile nel forum del modello.
Accedi per recensireV7 III Stone now has stronger and more personal aesthetic connotations than its predecessor. Eclectic and essential, it foregoes any chromium parts, embracing the darkness of its matt black paintwork that goes well with the graphic dedicated only to the V7 III Stone of the saddle, fitted with a passenger grab strap. It is, however, available in other attractive, satin finish colours inspired by typical ´70s shades: Nero Ruvido, Azzurro Elettrico, Verde Camouflage and Giallo Energico. The total "dark matt" look characterizes the V7 III and distinguishes it from the other versions, but that is not the only difference.
Informazioni generali
Categoria
Classic
Cilindrata
744.0 cc (45.40 cubic inches)
Dettagli motore
90° V-twin
Alesaggio x corsa
80.0 x 74.0 mm (3.1 x 2.9 inches)
Sistema di alimentazione
Injection. Weber-Marelli
Sistema di lubrificazione
Forced circulation with lobe pump - circuit capacity: 1.78 Kg
Frizione
Dry single plate with flexible couplings
Trasmissione finale
CA.R.C. Compact Reactive Shaft Drive
Impianto di scarico
Three-way catalytic converter with double lambda probe
Avancorsa
106 mm (4.2 inches)
Diametro
320 mm (12.6 inches)
Diametro
260 mm (10.2 inches)
Ruote
Aluminium spoked black anodised rims
Weight incl. oil, gas, etc
189.0 kg (416.7 pounds)
Altezza sella
770 mm (30.3 inches) If adjustable, lowest setting.
Altezza sella alternativa
803 mm (31.6 inches) If adjustable, highest setting.
Altezza totale
1110 mm (43.7 inches)
Lunghezza totale
2185 mm (86.0 inches)
Larghezza totale
800 mm (31.5 inches)
Altezza da terra
150 mm (5.9 inches)
Interasse
1463 mm (57.6 inches)
Capacita carburante
21.00 litres (5.55 US gallons)
Capacita carburante di riserva
3.79 litres (1.00 US gallons)
Colori disponibili
Black, Blue, Green, Yellow
Avviamento
Elettrico
Garanzia di fabbrica
Two-year manufacturer's warranty and roadside assistance for one year
Motore
Tipo motore
V2, four-stroke
Potenza
52.0 CV (38.0 kW)) @ 6200 giri/min
Coppia
60.0 Nm (6.1 kgf-m or 44.3 ft.lbs) @ 4900 giri/min
Sospensioni
Sospensione anteriore
Telescopic hydraulic fork with 40 mm stanchions
Sospensione posteriore
Die cast light alloy swing arm with 2 spring preload adjustable shock absorbers
Telaio
Tipologia telaio
Double cradle tubular frame in ALS steel with detachable rear subframe
Ruote
Pneumatico anteriore
100/90-18
Pneumatico posteriore
130/80-17
Freni
Freno anteriore
Single disc. Brembo caliper with 4 differentiated pistons
Freno posteriore
Single disc. Floating disc. Two-piston calipers.
Trasmissione
Cambio
5 marce
Tipo trasmissione
Shaft drive (cardan) (final drive)
