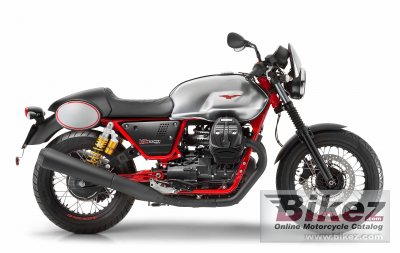

Guzzi V7 Iii Racer
Scrivi la tua esperienza su Moto Guzzi Guzzi V7 Iii Racer
La recensione verrà pubblicata come topic forum personale. Se hai già recensito questo modello, il topic esistente verrà aggiornato.
Accedi per pubblicare una recensione e farla diventare un topic modificabile nel forum del modello.
Accedi per recensireProduced in a numbered edition, as indicated by the plate located on the upper steering yoke, V7 III Racer is not only the most sporty of the range, but also the one with the most prestigious parts, that once again demonstrate Moto Guzzi´s ability to create true custom models. There are numerous technical and aesthetic differences that distinguish it from the previous version and from the other V7 III models.
Informazioni generali
Tipologia
Classic
Cilindrata
744.0 cc (45.40 cubic inches)
Tipo motore
V2, four-stroke
Dettagli motore
90° V-twin
Potenza
52.0 CV (38.0 kW)) @ 6200 giri/min
Alesaggio x corsa
80.0 x 74.0 mm (3.1 x 2.9 inches)
Sistema di alimentazione
Injection
Inclinazione cannotto di sterzo
26.4°
Avancorsa
106 mm (4.2 inches)
Diametro
320 mm (12.6 inches)
Diametro
260 mm (10.2 inches)
Ruote
Aluminium spoked black anodised rims
Weight incl. oil, gas, etc
209.0 kg (460.8 pounds)
Altezza sella
770 mm (30.3 inches) If adjustable, lowest setting.
Altezza sella alternativa
803 mm (31.6 inches) If adjustable, highest setting.
Altezza totale
1113 mm (43.8 inches)
Lunghezza totale
2184 mm (86.0 inches)
Larghezza totale
800 mm (31.5 inches)
Altezza da terra
150 mm (5.9 inches)
Interasse
1463 mm (57.6 inches)
Capacita carburante
21.00 litres (5.55 US gallons)
Capacita carburante di riserva
3.79 litres (1.00 US gallons)
Colori disponibili
Silver/red/gold
Avviamento
Elettrico
Garanzia di fabbrica
Two-year manufacturer's warranty and roadside assistance for one year
Motore
Coppia
60.0 Nm (6.1 kgf-m or 44.3 ft.lbs) @ 4900 giri/min
Sospensioni
Sospensione anteriore
Telescopic hydraulic fork with 40 mm stanchions
Sospensione posteriore
Die cast light alloy swing arm with 2 spring preload adjustable shock absorbers
Telaio
Tipologia telaio
Double cradle tubular frame in ALS steel with detachable rear subframe
Ruote
Pneumatico anteriore
100/90-18
Pneumatico posteriore
130/80-17
Freni
Freno anteriore
Single disc. Brembo caliper with 4 differentiated pistons
Freno posteriore
Single disc. Floating disc. Two-piston calipers.
Trasmissione
Cambio
5 marce
Tipo trasmissione
Shaft drive (cardan) (final drive)
Raffreddamento
Sistema di raffreddamento
Aria
