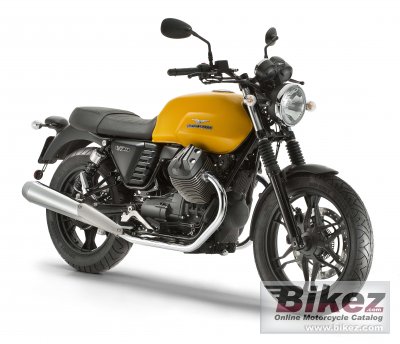

Guzzi V7 Ii Stone
Scrivi la tua esperienza su Moto Guzzi Guzzi V7 Ii Stone
La recensione verrà pubblicata come topic forum personale. Se hai già recensito questo modello, il topic esistente verrà aggiornato.
Accedi per pubblicare una recensione e farla diventare un topic modificabile nel forum del modello.
Accedi per recensireThe V7 II is fitted with a dual channel ABS system and MGCT (Moto Guzzi Traction Control). The new 6 speed gearbox, improved ergonomics and numerous other changes fully meet expectations in terms of aesthetics and riding pleasure, making the new V7 II even more attractive
Informazioni generali
Tipologia
Classic
Prezzo da nuova
Euro 7134. MSRP depends on country, taxes, accessories, etc.
Cilindrata
744.0 cc (45.40 cubic inches)
Tipo motore
V2, four-stroke
Dettagli motore
90° V-twin
Potenza
48.0 CV (35.0 kW)) @ 6200 giri/min
Alesaggio x corsa
80.0 x 74.0 mm (3.1 x 2.9 inches)
Valvole per cilindro
2
Sistema di alimentazione
Injection. Weber-Marelli electronic fuel injection.
Sistema di lubrificazione
Forced circulation with lobe pump - circuit capacity: 1.78 Kg
Frizione
Dry single plate with flexible couplings
Impianto di scarico
Three-way catalytic converter with double lambda probe
Avancorsa
109 mm (4.3 inches)
Escursione anteriore
110 mm (4.3 inches)
Escursione posteriore
96 mm (3.8 inches)
Diametro
320 mm (12.6 inches)
Diametro
260 mm (10.2 inches)
Ruote
Cast aluminum alloy multi-spoke black anodized Rims
Weight incl. oil, gas, etc
179.0 kg (394.6 pounds)
Altezza sella
780 mm (30.7 inches) If adjustable, lowest setting.
Altezza sella alternativa
803 mm (31.6 inches) If adjustable, highest setting.
Altezza totale
1113 mm (43.8 inches)
Lunghezza totale
2184 mm (86.0 inches)
Larghezza totale
800 mm (31.5 inches)
Interasse
1449 mm (57.0 inches)
Capacita carburante
21.95 litres (5.80 US gallons)
Capacita carburante di riserva
3.79 litres (1.00 US gallons)
Colori disponibili
Black, red, yellow, grey
Avviamento
Elettrico
Garanzia di fabbrica
Two-year manufacturer's warranty and roadside assistance for one year
Motore
Coppia
60.0 Nm (6.1 kgf-m or 44.3 ft.lbs) @ 2800 giri/min
Sospensioni
Sospensione anteriore
Telescopic hydraulic fork with 40 mm stanchions
Sospensione posteriore
Die cast light alloy swing arm with 2 spring preload adjustable shock absorbers
Telaio
Tipologia telaio
Double cradle tubular frame in ALS steel with detachable rear subframe
Ruote
Pneumatico anteriore
100/90-18
Pneumatico posteriore
130/80-17
Freni
Freno anteriore
Single disc. Brembo caliper with 4 differentiated pistons
Freno posteriore
Single disc. Floating disc. Two-piston calipers.
Trasmissione
Cambio
5 marce
Tipo trasmissione
Shaft drive (cardan) (final drive)
Raffreddamento
Sistema di raffreddamento
Aria
