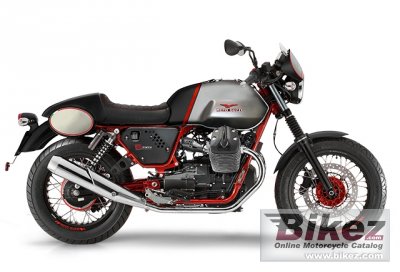

Guzzi V7 Ii Racer Abs
Scrivi la tua esperienza su Moto Guzzi Guzzi V7 Ii Racer Abs
La recensione verrà pubblicata come topic forum personale. Se hai già recensito questo modello, il topic esistente verrà aggiornato.
Accedi per pubblicare una recensione e farla diventare un topic modificabile nel forum del modello.
Accedi per recensireSwitchable ABS. Sometimes called Mot Guzzi V7 II Racer America.
Informazioni generali
Categoria
Classic
Prezzo da nuova
US$ 11190. MSRP depends on country, taxes, accessories, etc.
Cilindrata
744.0 cc (45.40 cubic inches)
Dettagli motore
90° V-twin
Valvole per cilindro
2
Sistema di alimentazione
Injection. Weber-Marelli
Sistema di lubrificazione
Forced circulation with lobe pump - circuit capacity: 1.78 Kg
Frizione
Dry single plate with flexible couplings
Trasmissione finale
CA.R.C. Compact Reactive Shaft Drive
Impianto di scarico
Three-way catalytic converter with double lambda probe
Escursione anteriore
130 mm (5.1 inches)
Escursione posteriore
96 mm (3.8 inches)
Diametro
320 mm (12.6 inches)
Diametro
250 mm (9.8 inches)
Ruote
Black anodized aluminum, spoked wheels
Weight incl. oil, gas, etc
190.0 kg (418.9 pounds)
Altezza sella
790 mm (31.1 inches) If adjustable, lowest setting.
Altezza totale
1115 mm (43.9 inches)
Lunghezza totale
2203 mm (86.7 inches)
Larghezza totale
800 mm (31.5 inches)
Altezza da terra
179 mm (7.0 inches)
Interasse
1449 mm (57.0 inches)
Capacita carburante
22.00 litres (5.81 US gallons)
Capacita carburante di riserva
2.50 litres (0.66 US gallons)
Colori disponibili
Silver/red
Avviamento
Elettrico
Garanzia di fabbrica
Two-year manufacturer's warranty and roadside assistance for one year
Motore
Tipo motore
V2, four-stroke
Potenza
48.0 CV (35.0 kW)) @ 6200 giri/min
Coppia
57.9 Nm (5.9 kgf-m or 42.7 ft.lbs) @ 5000 giri/min
Sospensioni
Sospensione anteriore
Telescopic hydraulic fork with 40 mm stanchions
Sospensione posteriore
Die-cast light alloy swing arm with 2 fully adjustable Bitubo shock absorbers
Telaio
Tipologia telaio
Double cradle tubular frame in ALS steel with detachable rear subframe
Ruote
Pneumatico anteriore
100/90-18
Pneumatico posteriore
130/80-17
Freni
Freno anteriore
Single disc. ABS. Brembo caliper with 4 differentiated pistons
Freno posteriore
Single disc. ABS. Floating disc. Two-piston calipers.
Trasmissione
Cambio
5 marce
Tipo trasmissione
Shaft drive (cardan) (final drive)
Raffreddamento
Sistema di raffreddamento
Aria
