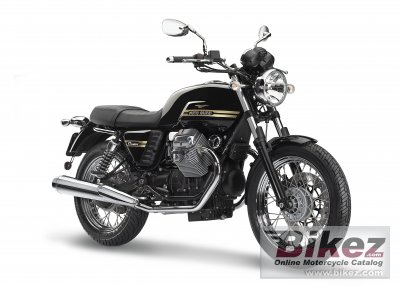

Guzzi V7 Classic
Scrivi la tua esperienza su Moto Guzzi Guzzi V7 Classic
La recensione verrà pubblicata come topic forum personale. Se hai già recensito questo modello, il topic esistente verrà aggiornato.
Accedi per pubblicare una recensione e farla diventare un topic modificabile nel forum del modello.
Accedi per recensireIn 1967 the bike was an immediate success with both press and public, and the V7 helped make Moto Guzzi's name throughout the world, as a producer of prestigious, comfortable, elegant and reliable Moto. Forty years later, this positive heritage, in combination with the current full-blown relaunch of the brand, is the inspiration behind the new V7 Classic.
Informazioni generali
Categoria
Classic
Prezzo da nuova
Euro 7950. MSRP depends on country, taxes, accessories, etc.
Cilindrata
744.0 cc (45.40 cubic inches)
Dettagli motore
90° V-Twin
Rapporto di compressione
9.6:1
Alesaggio x corsa
80.0 x 74.0 mm (3.1 x 2.9 inches)
Valvole per cilindro
2
Sistema di alimentazione
Injection. Weber-Marelli
Controllo alimentazione
Overhead Cams (OHC)
Sistema di lubrificazione
By lobes with pressure pump
Frizione
Single disc, dry, with cush drive
Trasmissione finale
Primary drive: Helical gears, ratio: 16/21=1 : 1,3125. Secondary drive: shaft, ratio 8/33=1 : 4,825
Dettagli emissioni
3 ways catalyzed with Lambda sensor
Inclinazione cannotto di sterzo
27.5°
Avancorsa
109 mm (4.3 inches)
Escursione anteriore
130 mm (5.1 inches)
Escursione posteriore
118 mm (4.6 inches)
Diametro
320 mm (12.6 inches)
Diametro
260 mm (10.2 inches)
Ruote
Spoke light alloy
Peso a secco
182.0 kg (401.2 pounds)
Weight incl. oil, gas, etc
198.0 kg (436.5 pounds)
Altezza sella
805 mm (31.7 inches) If adjustable, lowest setting.
Lunghezza totale
2185 mm (86.0 inches)
Larghezza totale
800 mm (31.5 inches)
Capacita carburante
17.00 litres (4.49 US gallons)
Colori disponibili
Guzzi black, White diamond
Avviamento
Elettrico
Motore
Tipo motore
V2, four-stroke
Coppia
54.7 Nm (5.6 kgf-m or 40.3 ft.lbs) @ 3600 giri/min
Sospensioni
Sospensione anteriore
Marzocchi hydraulic telescopic fork
Sospensione posteriore
Swinging arm in light cast alloy with two dampers, preload adjustable
Telaio
Tipologia telaio
Detachable tubular duplex cradle in special high-strengh steel
Ruote
Pneumatico anteriore
110/70-17
Pneumatico posteriore
130/80-17
Freni
Freno anteriore
Single disc. Bremo
Freno posteriore
Single disc. Bremo
Trasmissione
Cambio
5 marce
Tipo trasmissione
Shaft drive (cardan) (final drive)
Raffreddamento
Sistema di raffreddamento
Aria
