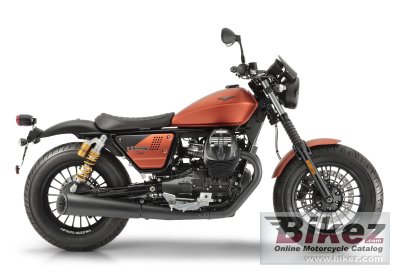

Guzzi V9 Bobber Sport
Scrivi la tua esperienza su Moto Guzzi Guzzi V9 Bobber Sport
La recensione verrà pubblicata come topic forum personale. Se hai già recensito questo modello, il topic esistente verrà aggiornato.
Accedi per pubblicare una recensione e farla diventare un topic modificabile nel forum del modello.
Accedi per recensireIts innovative and uncompromising character embody the bobber's confident style with its total matt black detailing and complete lack of any glossy paintwork or chrome. The V9 Bobber is the epitome of authentic style sought after by riders who are after performance, aesthetics and musicality in a bike. It's the bike for riders who are prepared to create an irresistable true love, leaving themselves open to completely disrupting their lives.
Informazioni generali
Categoria
Allround
Cilindrata
853.0 cc (52.05 cubic inches)
Rapporto di compressione
10.5:1
Alesaggio x corsa
84.0 x 77.0 mm (3.3 x 3.0 inches)
Sistema di alimentazione
Injection. Weber-Marelli electronic fuel injection
Dettagli emissioni
Catalytic converters, Euro 4.
Impianto di scarico
Stainless steel, 2-in-2 type, three-way catalytic converter with double lambda oxygen probe
Inclinazione cannotto di sterzo
26.4°
Avancorsa
116 mm (4.6 inches)
Escursione anteriore
130 mm (5.1 inches)
Escursione posteriore
99 mm (3.9 inches)
Diametro
320 mm (12.6 inches)
Diametro
260 mm (10.2 inches)
Ruote
Aluminium alloy
Sella
Duale seat
Weight incl. oil, gas, etc
199.0 kg (438.7 pounds)
Altezza sella
808 mm (31.8 inches) If adjustable, lowest setting.
Altezza totale
1160 mm (45.7 inches)
Lunghezza totale
2185 mm (86.0 inches)
Larghezza totale
840 mm (33.1 inches)
Interasse
1465 mm (57.7 inches)
Capacita carburante
15.00 litres (3.96 US gallons)
Capacita carburante di riserva
4.00 litres (1.06 US gallons)
Colori disponibili
Brown, Black, Gray
Avviamento
Elettrico
Motore
Tipo motore
V2, four-stroke
Potenza
55.0 CV (40.1 kW)) @ 6250 giri/min
Coppia
62.0 Nm (6.3 kgf-m or 45.7 ft.lbs) @ 3000 giri/min
Sospensioni
Sospensione anteriore
Hydraulic telescopic fork
Sospensione posteriore
Doppio ammortizzatore
Telaio
Tipologia telaio
ALS steel twin tube cradle frame
Ruote
Pneumatico anteriore
130/90-16
Pneumatico posteriore
150/80-16
Freni
Freno anteriore
Single disc. ABS. Brembo opposed four-piston callipers.
Freno posteriore
Single disc. ABS
Trasmissione
Cambio
5 marce
Tipo trasmissione
Shaft drive (cardan) (final drive)
Raffreddamento
Sistema di raffreddamento
Aria
