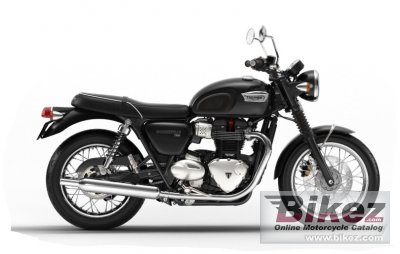

Bonneville T100
Scrivi la tua esperienza su Triumph Bonneville T100
La recensione verrà pubblicata come topic forum personale. Se hai già recensito questo modello, il topic esistente verrà aggiornato.
Accedi per pubblicare una recensione e farla diventare un topic modificabile nel forum del modello.
Accedi per recensireThe T100s offer thrilling performance from the 900cc high-torque Bonneville engine, delivering greater torque, better fuel economy, and a rich deep exhaust note.
Informazioni generali
Categoria
Classic
Cilindrata
900.0 cc (54.92 cubic inches)
Dettagli motore
360 degree firing interval
Potenza
55.0 CV (40.1 kW)) @ 5900 giri/min
Rapporto di compressione
10.6:1
Alesaggio x corsa
84.6 x 80.0 mm (3.3 x 3.1 inches)
Sistema di alimentazione
Injection. Multipoint sequential electronic fuel injection
Controllo alimentazione
Double Overhead Cams/Twin Cam (DOHC)
Accensione
Digital-inductive type via engine management system
Sistema di lubrificazione
Wet sump
Frizione
Wet, multi-plate assist clutch
Trasmissione finale
X ring chain. Primary drive: Gear.
Consumo carburante
3.83 litres/100 km (26.1 km/l or 61.42 mpg)
Emissioni serra
88.9 CO2 g/km. (CO2 - emissione di anidride carbonica)
Inclinazione cannotto di sterzo
25.5°
Avancorsa
104 mm (4.1 inches)
Escursione anteriore
120 mm (4.7 inches)
Escursione posteriore
120 mm (4.7 inches)
Diametro
310 mm (12.2 inches)
Diametro
255 mm (10.0 inches)
Ruote
32 spokes
Peso a secco
213.0 kg (469.6 pounds)
Rapporto potenza/peso
0.2582 CV/kg
Altezza sella
790 mm (31.1 inches) If adjustable, lowest setting.
Altezza totale
1100 mm (43.3 inches)
Lunghezza totale
2230 mm (87.8 inches)
Larghezza totale
715 mm (28.1 inches)
Interasse
1450 mm (57.1 inches)
Capacita carburante
14.38 litres (3.80 US gallons)
Capacita olio
4.50 litres (4.76 US quarts)
Colori disponibili
Jet black, Fusion White/Aegean Blue, New England White/ Intense Orange
Avviamento
Elettrico
Strumentazione
Analogue speedometer and tachometer with odometer and trip information
Garanzia di fabbrica
24 months unlimited milage
Olio motore
10W-40 or 10W-50
Liquido freni
DOT 4
Candele
NGK DPR8EA-9, NGK DPR8EIX-9
Chain links
104
Sprockets
18/43 (front/rear)
Pressione pneumatico anteriore
33 PSI (2.3 Bar or 230 kPa)
Pressione pneumatico posteriore
41 PSI (2.8 Bar or 280 kPa)
Fork tube size
41 mm (1.6 inches)
Motore
Tipo motore
Twin, four-stroke
Coppia
80.0 Nm (8.2 kgf-m or 59.0 ft.lbs) @ 3230 giri/min
Sospensioni
Sospensione anteriore
KYB 41mm forks
Sospensione posteriore
KYB chromed spring twin shocks with adjustable preload
Telaio
Tipologia telaio
Tubular steel twin cradle. Twin-sided, tubular steel swing arm.
Ruote
Pneumatico anteriore
100/90-18
Pneumatico posteriore
150/70-R17
Freni
Freno anteriore
Single disc. ABS. Nissin 2-piston floating caliper.
Freno posteriore
Single disc. ABS. Nissin 2-piston floating caliper.
Trasmissione
Cambio
5 marce
Tipo trasmissione
Catena (trasmissione finale)
Raffreddamento
Sistema di raffreddamento
Liquido
