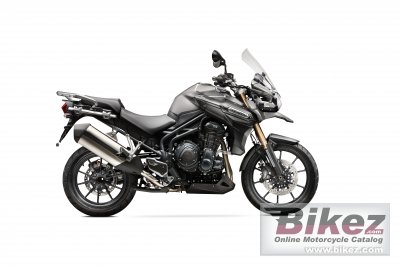

Tiger Explorer
Scrivi la tua esperienza su Triumph Tiger Explorer
La recensione verrà pubblicata come topic forum personale. Se hai già recensito questo modello, il topic esistente verrà aggiornato.
Accedi per pubblicare una recensione e farla diventare un topic modificabile nel forum del modello.
Accedi per recensireWe gave the Explorer a 1215cc three-cylinder engine. Built with the latest technology to be strong, dependable and have the low maintenance levels you need on long adventures. It has plenty of power and torque with a hefty 137PS at 9300rpm, and 121Nm at just 6400rpm. Useable torque low down in the rev range where you need it most.
Informazioni generali
Tipologia
Allround
Prezzo da nuova
US$ 15699. MSRP depends on country, taxes, accessories, etc.
Cilindrata
1215.0 cc (74.14 cubic inches)
Tipo motore
In-line three, four-stroke
Potenza
137.0 CV (100.0 kW)) @ 9300 giri/min
Alesaggio x corsa
85.0 x 71.4 mm (3.3 x 2.8 inches)
Valvole per cilindro
4
Sistema di alimentazione
Injection. Drive by wire. fuel injection
Controllo alimentazione
Double Overhead Cams/Twin Cam (DOHC)
Frizione
Wet. multi-plate
Consumo carburante
4.90 litres/100 km (20.4 km/l or 48.00 mpg)
Emissioni serra
113.7 CO2 g/km. (CO2 - emissione di anidride carbonica)
Impianto di scarico
Stainless steel 3 into 1 . side mounted stainless steel silencer
Inclinazione cannotto di sterzo
23.9°
Ruote
Cast aluminium alloy 10-spoke
Weight incl. oil, gas, etc
259.0 kg (571.0 pounds)
Altezza sella
837 mm (33.0 inches) If adjustable, lowest setting.
Altezza totale
1410 mm (55.5 inches)
Lunghezza totale
2248 mm (88.5 inches)
Larghezza totale
885 mm (34.8 inches)
Interasse
1530 mm (60.2 inches)
Capacita carburante
20.00 litres (5.28 US gallons)
Capacita olio
4.00 litres (4.23 US quarts)
Colori disponibili
Sapphire Blue, Graphite,Crystal White/Matt Graphite
Avviamento
Elettrico
Strumentazione
LCD instrument pack with digital speedometer, analogue tachometer, gear position indicator, fuel gauge, range to empty, service indicator, clock, air temperature, frost warning, hazard warning lights, trip computer, Tyre pressure monitoring system
Motore
Coppia
121.0 Nm (12.3 kgf-m or 89.2 ft.lbs) @ 6400 giri/min
Sospensioni
Sospensione anteriore
KYB 46mm upside down forks, 190mm travel
Sospensione posteriore
KYB monoshock with remote oil reservoir, hydraulically adjustable preload, rebound damping adjustment, 194mm rear wheel travel
Telaio
Tipologia telaio
Tubular steel trellis frame
Ruote
Pneumatico anteriore
110/80-18
Pneumatico posteriore
150/70-17
Freni
Freno anteriore
Double disc. ABS. Floating discs, Nissin 4-piston calipers, Switchable ABS
Freno posteriore
Single disc. ABS. Nissin 2-piston sliding caliper, Switchable ABS
Trasmissione
Cambio
6 marce
Tipo trasmissione
Shaft drive (cardan) (final drive)
Raffreddamento
Sistema di raffreddamento
Liquido
