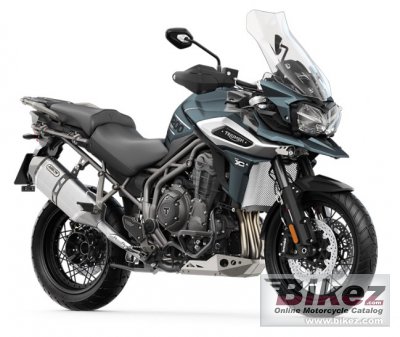

Tiger 1200 Xca

Categoria

Allround

Prezzo da nuova

US$ 22000. MSRP depends on country, taxes, accessories, etc.

Cilindrata

1215.0 cc (74.14 cubic inches)

Potenza

141.0 CV (102.9 kW)) @ 9350 giri/min

Rapporto di compressione

11.0:1

Alesaggio x corsa

85.0 x 71.4 mm (3.3 x 2.8 inches)

Valvole per cilindro

4

Sistema di alimentazione

Injection

Controllo alimentazione

Double Overhead Cams/Twin Cam (DOHC)

Frizione

Wet, multi-plate hydraulically operated, torque assist

Consumo carburante

4.90 litres/100 km (20.4 km/l or 48.00 mpg)

Emissioni serra

113.7 CO2 g/km. (CO2 - emissione di anidride carbonica)

Impianto di scarico

Stainless steel 3 into 1 side mounted stainless steel silencer

Inclinazione cannotto di sterzo

23.2°

Avancorsa

100 mm (3.9 inches)

Escursione anteriore

190 mm (7.5 inches)

Escursione posteriore

193 mm (7.6 inches)

Diametro

305 mm (12.0 inches)

Diametro

282 mm (11.1 inches)

Ruote

32 spoke, aluminum rim, for tubeless tires

Sella

Heated rider and passenger seat

Peso a secco

248.0 kg (546.7 pounds)

Rapporto potenza/peso

0.5685 CV/kg

Altezza sella

835 mm (32.9 inches) If adjustable, lowest setting.

Altezza sella alternativa

855 mm (33.7 inches) If adjustable, highest setting.

Altezza totale

1540 mm (60.6 inches)

Larghezza totale

930 mm (36.6 inches)

Interasse

1520 mm (59.8 inches)

Capacita carburante

20.00 litres (5.28 US gallons)

Capacita olio

4.00 litres (4.23 US quarts)

Colori disponibili

Marine, Crystal White

Avviamento

Elettrico

Strumentazione

TFT multi­functional instrument pack with digital speedometer, trip computer, digital tachometer, gear position indicator, fuel gage, service indicator, ambient temperature, clock and six rider modes

Garanzia di fabbrica

24 months unlimited mileage

Tipo motore

In-line three, four-stroke

Coppia

122.0 Nm (12.4 kgf-m or 90.0 ft.lbs) @ 7600 giri/min

Sospensione anteriore

WP 48 mm upside down forks, electronically adjustable damping

Sospensione posteriore

WP monoshock, electronically adjustable semi active damping

Tipologia telaio

Tubular steel trellis frame. Single-­sided, cast aluminium alloy swing arm with shaft drive.

Pneumatico anteriore

120/70-R19

Pneumatico posteriore

170/60-R17

Freno anteriore

Double disc. Floating discs, radially mounted monobloc Brembo calipers, 4-piston, switchable ABS

Freno posteriore

Single disc. Nissin 2-piston sliding caliper, Switchable ABS

Cambio

6 marce

Tipo trasmissione

Shaft drive (cardan) (final drive)

Sistema di raffreddamento

Liquido
