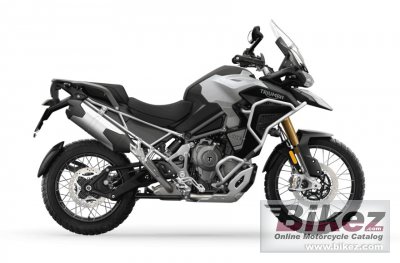

Tiger 1200 Rally Explorer

Tipologia

Allround

Prezzo da nuova

US$ 24200. MSRP depends on country, taxes, accessories, etc.

Cilindrata

1160.0 cc (70.78 cubic inches)

Tipo motore

In-line three, four-stroke

Potenza

150.0 CV (109.5 kW)) @ 9000 giri/min

Rapporto di compressione

13.2:1

Alesaggio x corsa

89.9 x 60.5 mm (3.5 x 2.4 inches)

Valvole per cilindro

4

Sistema di alimentazione

Injection. Multipoint sequential electronic fuel injection with electronic throttle control

Controllo alimentazione

Double Overhead Cams/Twin Cam (DOHC)

Frizione

Hydraulic, wet, multi-plate, slip and assist

Consumo carburante

4.90 litres/100 km (20.4 km/l or 48.00 mpg)

Emissioni serra

113.7 CO2 g/km. (CO2 - emissione di anidride carbonica)

Impianto di scarico

Stainless steel 3 into 1 header system with underslung primary silencer and side mounted secondary silencer

Inclinazione cannotto di sterzo

23.7°

Avancorsa

112 mm (4.4 inches)

Escursione anteriore

220 mm (8.7 inches)

Escursione posteriore

220 mm (8.7 inches)

Diametro

320 mm (12.6 inches)

Diametro

282 mm (11.1 inches)

Ruote

Wire spoke, aluminum rims, Metzeler Karoo Street tires

Sella

Heated rider and passenger seat

Peso a secco

261.0 kg (575.4 pounds)

Rapporto potenza/peso

0.5747 CV/kg

Altezza sella

875 mm (34.4 inches) If adjustable, lowest setting.

Altezza sella alternativa

895 mm (35.2 inches) If adjustable, highest setting.

Altezza totale

1547 mm (60.9 inches)

Larghezza totale

849 mm (33.4 inches)

Interasse

1560 mm (61.4 inches)

Capacita carburante

29.98 litres (7.92 US gallons)

Capacita olio

4.00 litres (4.23 US quarts)

Colori disponibili

Snowdonia White, Sapphire Black, Matte Khaki Green

Avviamento

Elettrico

Strumentazione

TFT multi­functional instrument pack with digital speedometer, trip computer, digital tachometer, gear position indicator, fuel gage, service indicator, ambient temperature, clock and six rider modes

Fari

All LED lighting

Garanzia di fabbrica

3 years unlimited mileage

Intervallo di manutenzione

10,000 miles/16,000 km/12 months

Coppia

130.0 Nm (13.3 kgf-m or 95.9 ft.lbs) @ 7000 giri/min

Sospensione anteriore

Showa 49mm, semi-active damping USD forks

Sospensione posteriore

Showa semi-active damping monoshock, with automatic electronic preload adjustment.

Tipologia telaio

Tubular steel frame, with forged aluminium outriggers. Fabricated, bolt-on aluminium rear subframe.

Pneumatico anteriore

90/90-21

Pneumatico posteriore

150/70-R18

Freno anteriore

Double disc. Brembo M4.30 Stylema monoblock radial calipers, OC-ABS

Freno posteriore

Single disc. Brembo single piston caliper, OC-ABS

Cambio

6 marce

Tipo trasmissione

Shaft drive (cardan) (final drive)

Sistema di raffreddamento

Liquido
