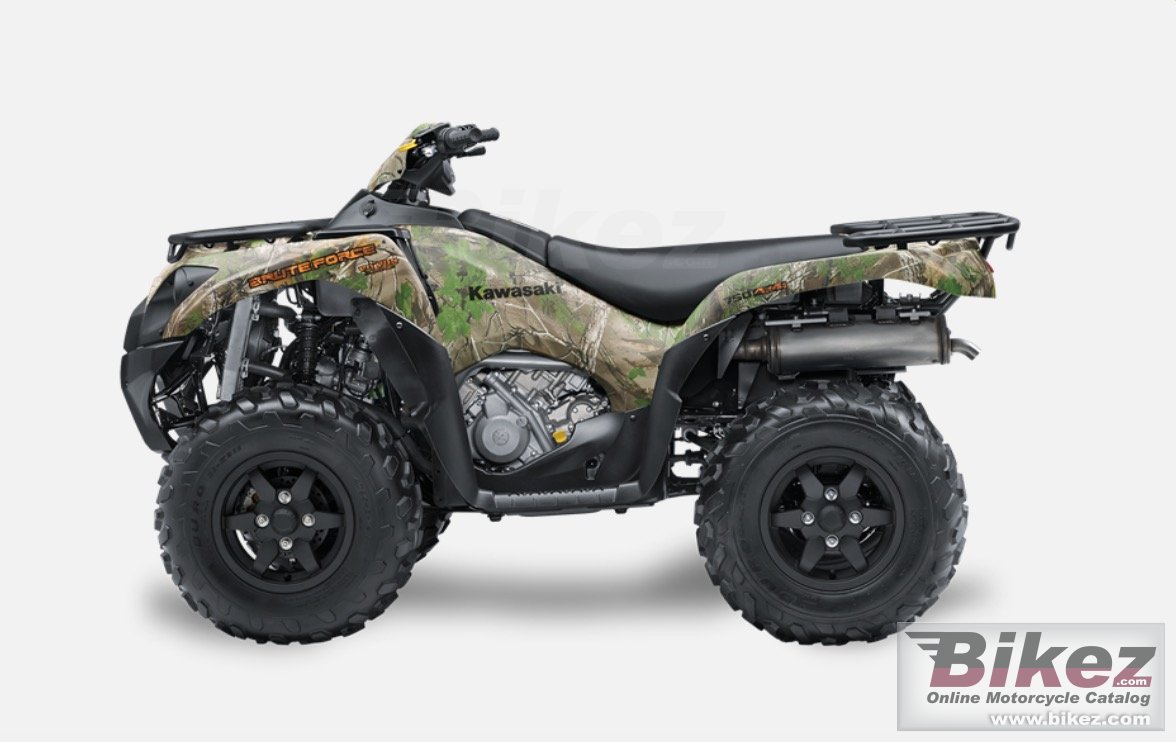

Brute Force 750 4X4I Eps
Scrivi la tua esperienza su Kawasaki Brute Force 750 4X4I Eps
La recensione verrà pubblicata come topic forum personale. Se hai già recensito questo modello, il topic esistente verrà aggiornato.
Accedi per pubblicare una recensione e farla diventare un topic modificabile nel forum del modello.
Accedi per recensireDesigned for high performance off-road, the Brute Force 750 4x4i EPS boasts industry leading features including speed variable Electronic Power Steering (EPS) plus a further increase in the torque and all-day working performance of its 750 cm3 V-twin engine. Add greater chassis control, plus a host of new features, and the more you experience the Brute Force 750 4x4i EPS, the better it gets.
Informazioni generali
Categoria
ATV
Cilindrata
749.0 cc (45.70 cubic inches)
Rapporto di compressione
9.3:1
Alesaggio x corsa
85.0 x 66.0 mm (3.3 x 2.6 inches)
Valvole per cilindro
4
Sistema di alimentazione
Injection. DFI® with two 36mm throttle bodies
Controllo alimentazione
Monoalbero a camme in testa (SOHC)
Accensione
Battery and Coil (Transistorised ignition)
Trasmissione finale
Selectable four-wheel drive with Variable Front Differential Control, shaft
Avancorsa
12 mm (0.5 inches)
Escursione anteriore
170 mm (6.7 inches)
Escursione posteriore
191 mm (7.5 inches)
Diametro
200 mm (7.9 inches)
Weight incl. oil, gas, etc
317.1 kg (699.0 pounds)
Altezza sella
909 mm (35.8 inches) If adjustable, lowest setting.
Altezza totale
1219 mm (48.0 inches)
Lunghezza totale
2195 mm (86.4 inches)
Larghezza totale
1181 mm (46.5 inches)
Altezza da terra
240 mm (9.4 inches)
Interasse
1285 mm (50.6 inches)
Capacita carburante
19.00 litres (5.02 US gallons)
Colori disponibili
Bright White, Vibrant Blue
Avviamento
Elettrico
Strumentazione
Speedometer, odometer, dual trip meters, fuel gauge, engine temp, clock, hour meter and 2WD/4WD icon, plus indicators for EPS, neutral, reverse, belt, and oil pressure.
Fari
35W headlights, 5W taillight, 21W stoplight
Capacita di carico
Front and rear rack.
Garanzia di fabbrica
12 Months limited
Motore
Tipo motore
V2, four-stroke
Potenza
50.0 CV (36.5 kW)) @ 6750 giri/min
Coppia
59.0 Nm (6.0 kgf-m or 43.5 ft.lbs) @ 5250 giri/min
Sospensioni
Sospensione anteriore
Double wishbone with 5-way adjustable spring preload
Sospensione posteriore
Full independent, dual A-arm/
Telaio
Tipologia telaio
Double-cradle, high-tensile tubular steel
Ruote
Pneumatico anteriore
25/8-12
Pneumatico posteriore
25/10-12
Freni
Freno anteriore
Sealed multidisc. Hydraulic. Two-piston calipers.
Freno posteriore
Sealed multidisc
Trasmissione
Cambio
Automatic
Tipo trasmissione
Shaft drive (cardan) (final drive)
Raffreddamento
Sistema di raffreddamento
Liquido
