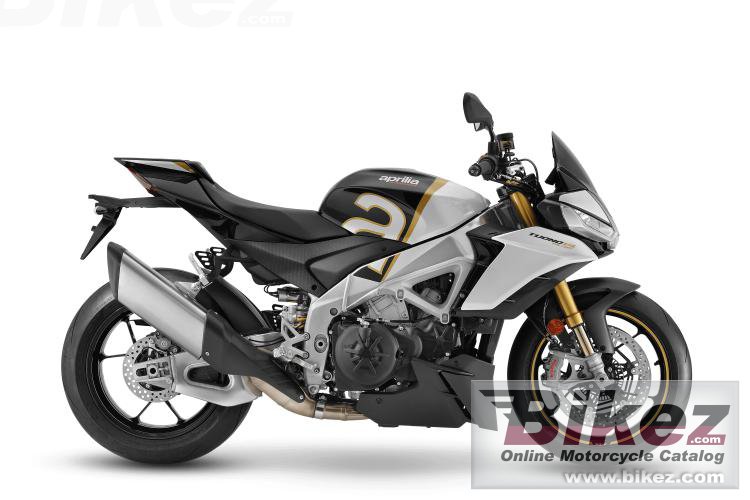

Tuono V4 1100 Factory

Tipologia

Naked bike

Cilindrata

1077.0 cc (65.72 cubic inches)

Tipo motore

V4, four-stroke

Dettagli motore

Longitudinal 65° V-4

Potenza

175.0 CV (127.7 kW)) @ 11350 giri/min

Rapporto di compressione

13.6:1

Alesaggio x corsa

81.0 x 52.3 mm (3.2 x 2.1 inches)

Valvole per cilindro

4

Sistema di alimentazione

Injection. Airbox with front dynamic air intakes. 4 Weber-Marelli 48-mm throttle bodies with 4 injectors and latest generation Ride-by-Wire engine management. Choice of three different engine maps selectable by the rider with bike in motion: T (Track), S (Sport), R

Controllo alimentazione

Double Overhead Cams/Twin Cam (DOHC)

Accensione

Magneti Marelli 11MP ECU

Sistema di lubrificazione

Wet sump lubrication system with oil radiator and two oil pumps (lubrication and cooling)

Frizione

Multiplate wet clutch with mechanical slipper system.

Trasmissione finale

Straight cut gears and integrated flexible coupling, drive ratio: 73/44 primary drive. Chain 42/16 final drive.

Consumo carburante

7.71 litres/100 km (13.0 km/l or 30.51 mpg)

Emissioni serra

178.9 CO2 g/km. (CO2 - emissione di anidride carbonica)

Dettagli emissioni

Euro 5

Impianto di scarico

4 into 2 into 1 layout, single oxygen sensor, lateral single silencer with ECU-controlled bypass valve and integrated trivalent catalytic converter (Euro 3)

Inclinazione cannotto di sterzo

24.8°

Avancorsa

100 mm (3.9 inches)

Escursione anteriore

125 mm (4.9 inches)

Escursione posteriore

130 mm (5.1 inches)

Diametro

330 mm (13.0 inches)

Diametro

220 mm (8.7 inches)

Ruote

Cast aluminium wheels with 3 split spoke design.

Peso a secco

185.0 kg (407.9 pounds)

Weight incl. oil, gas, etc

209.0 kg (460.8 pounds)

Rapporto potenza/peso

0.9459 CV/kg

Altezza sella

825 mm (32.5 inches) If adjustable, lowest setting.

Altezza totale

1090 mm (42.9 inches)

Lunghezza totale

2070 mm (81.5 inches)

Larghezza totale

810 mm (31.9 inches)

Altezza da terra

125 mm (4.9 inches)

Interasse

1452 mm (57.2 inches)

Capacita carburante

18.50 litres (4.89 US gallons)

Capacita carburante di riserva

4.00 litres (1.06 US gallons)

Colori disponibili

Matte black/red/purple, white/red, black/white/gold, black

Avviamento

Elettrico

Strumentazione

TFT colour display

Impianto elettrico

Flywheel mounted 420W alternator with rare earth magnets.

Coppia

121.0 Nm (12.3 kgf-m or 89.2 ft.lbs) @ 9000 giri/min

Sospensione anteriore

Öhlins NIX upside-down fork, Ø 43 mm stanchions. Electronics management system Ohlins Smart EC 2.0 (OBTi).

Sospensione posteriore

Inverted truss aluminium rear arm. Öhlins TTX single shock absorber with piggy-back. Electronics management system Ohlins Smart EC 2.0 (OBTi).

Tipologia telaio

Aluminium dual beam chassis with cast and pressed sheet elements. (Sachs steering damper on APRC version)

Pneumatico anteriore

120/70-ZR17

Pneumatico posteriore

200/55-ZR17

Freno anteriore

Double disc. ABS. Floating double disc with aluminium flange Brembo M50 4-piston mono-block radial calipers Radial pump and metal braid brake pipe.

Freno posteriore

Single disc. ABS. Brembo Ø 32 mm 2 isolated piston caliper Pump with integrated tank and metal braid pipe.

Cambio

6 marce

Tipo trasmissione

Catena (trasmissione finale)

Sistema di raffreddamento

Liquido
