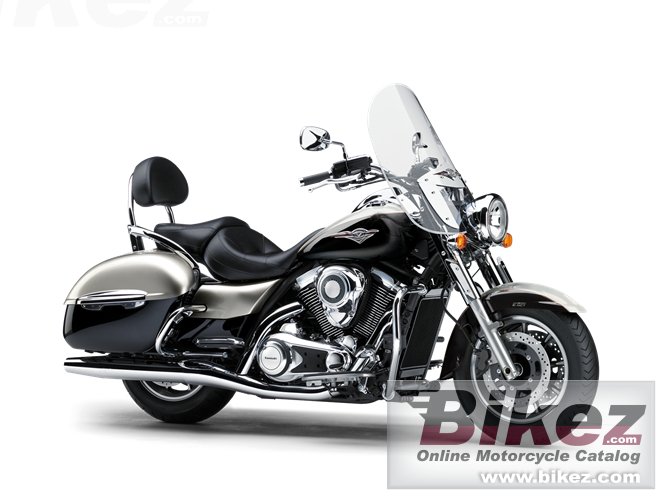

Vn 1700 Classic Tourer
Scrivi la tua esperienza su Kawasaki Vn 1700 Classic Tourer
La recensione verrà pubblicata come topic forum personale. Se hai già recensito questo modello, il topic esistente verrà aggiornato.
Accedi per pubblicare una recensione e farla diventare un topic modificabile nel forum del modello.
Accedi per recensireIgnition switch allows on-position key removal, preventing key bunches from damaging the instrument cluster or tank while the bike is in operation. Turning the ignition switch collar to the "OFF" position turns the engine off and necessitates re-insertion of the key to restart. Multi-function LCD displays on the tank-mounted instrument cluster are controlled by switches on the right handlebar. Features include a gear position indicator (na recent addition for Kawasaki cruisers), fuel gauge, clock, odometer, dual trip meters, remaining range and average fuel consumption.
Informazioni generali
Tipologia
Touring
Cilindrata
1700.0 cc (103.73 cubic inches)
Tipo motore
V2, four-stroke
Potenza
74.0 CV (54.0 kW)) @ 5000 giri/min
Rapporto di compressione
9.5:1
Alesaggio x corsa
102.0 x 104.0 mm (4.0 x 4.1 inches)
Valvole per cilindro
4
Sistema di alimentazione
Injection
Controllo alimentazione
Monoalbero a camme in testa (SOHC)
Sistema di lubrificazione
Forced lubrication, semi-dry sump
Frizione
Wet multi-disc
Inclinazione cannotto di sterzo
30.0°
Avancorsa
169 mm (6.7 inches)
Escursione anteriore
140 mm (5.5 inches)
Escursione posteriore
80 mm (3.1 inches)
Diametro
300 mm (11.8 inches)
Weight incl. oil, gas, etc
349.0 kg (769.4 pounds)
Altezza sella
720 mm (28.3 inches) If adjustable, lowest setting.
Altezza totale
1465 mm (57.7 inches)
Lunghezza totale
2500 mm (98.4 inches)
Larghezza totale
1025 mm (40.4 inches)
Altezza da terra
140 mm (5.5 inches)
Interasse
1665 mm (65.6 inches)
Capacita carburante
20.00 litres (5.28 US gallons)
Colori disponibili
Metallic Titanium/Metallic Spark Black
Avviamento
Elettrico
Capacita di carico
Hard saddle bags.
Motore
Coppia
136.0 Nm (13.9 kgf-m or 100.3 ft.lbs) @ 2750 giri/min
Sospensioni
Sospensione anteriore
43 mm telescopic fork
Sospensione posteriore
Swingarm with twin air-assisted shocks 4-way
Telaio
Tipologia telaio
Double-cradle, steel
Ruote
Pneumatico anteriore
130/90-B16
Pneumatico posteriore
170/70-B16
Freni
Freno anteriore
Double disc. Dual twin-piston
Freno posteriore
Single disc. Twin-piston
Trasmissione
Cambio
6 marce
Tipo trasmissione
Cinghia (trasmissione finale)
Raffreddamento
Sistema di raffreddamento
Liquido
